English 19
• Power supply wiring and earth wires
Remove the control box cover and connect the power supply wiring to the
power terminal block (X1M).
Also connect the earth wire to the earth wire terminal.
Pass both the power supply wires and the earth wire together through the
wire through hole (left) into the control box and use the included clamps (2)
to securely hold the wires in place.
Be sure to wire the earth wire so that it comes out of the cut out slit in the
cup washer.
(Not doing so could cause insufcient earth wire contact, causing the wire
not to function as a earth.)

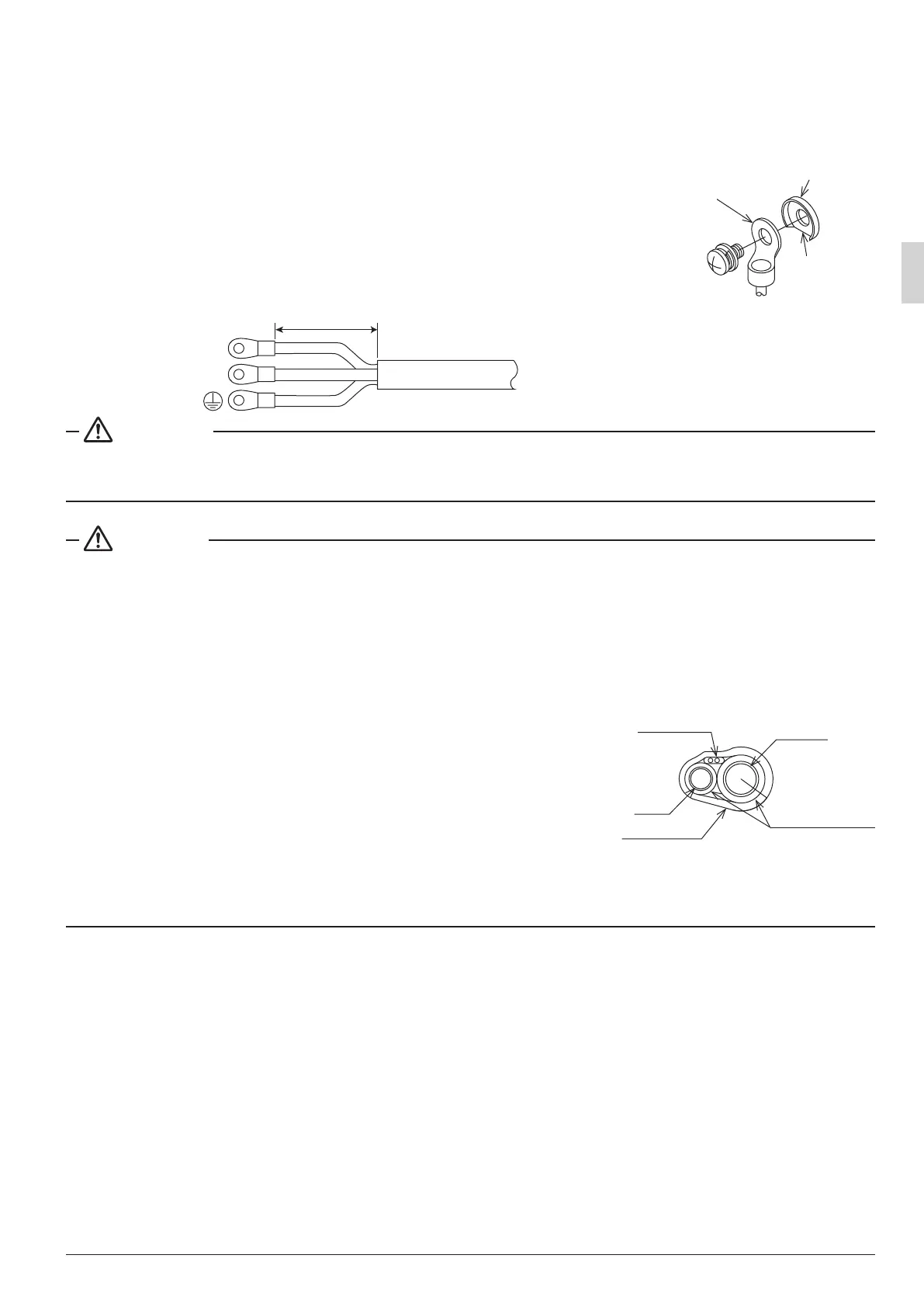

For more information about how much insulation to strip off power wiring,
refer to the following gure.
L
N
Power wiring (3-core)
130
Cut out slit
Cup washer
Ring type crimp
style terminal
WARNING
Organize the wiring and securely reattach the control box cover.
Pinched wires or a loose control box cover could result in electric shock or re.
CAUTION
• When fastening the wire, use the included clamp (2) so as not to apply tensile force to the wire connec-
tion and then securely fasten the wire.
Also, after the wiring is completed, organize the wiring so that the control box cover does not pop up and
then properly replace the control box cover.
Make sure no wires are pinched when replacing the control box cover.
Always use the wire through hole to protect wires.
• Do not pass the transmission wiring and power supply wiring through
the same locations, and outside of the unit keep them separated by at
least 50 mm.
Not doing so could cause the transmission wiring to pick up electric
noise (external noise) and result in a malfunction or breakdown.
• After the wiring work is complete, use sealer (to be supplied in the
eld) to seal closed the wire through hole.
(Entry by small animals, etc., could cause a malfunction.)
• As shown in the gure to the right, wrap the transmission wiring
between each BS unit and indoor unit with nishing tape (to be sup-
plied in the eld).
Gas pipe
Transmission
wiring
Liquid
pipe
Finishing tape
Insulation material
01_EN_3P194121-8U.indd 19 2/21/2014 3:31:15 PM
