Si12-411A Outdoor Unit (80 / 90 Class)
Removal Procedure 225
4

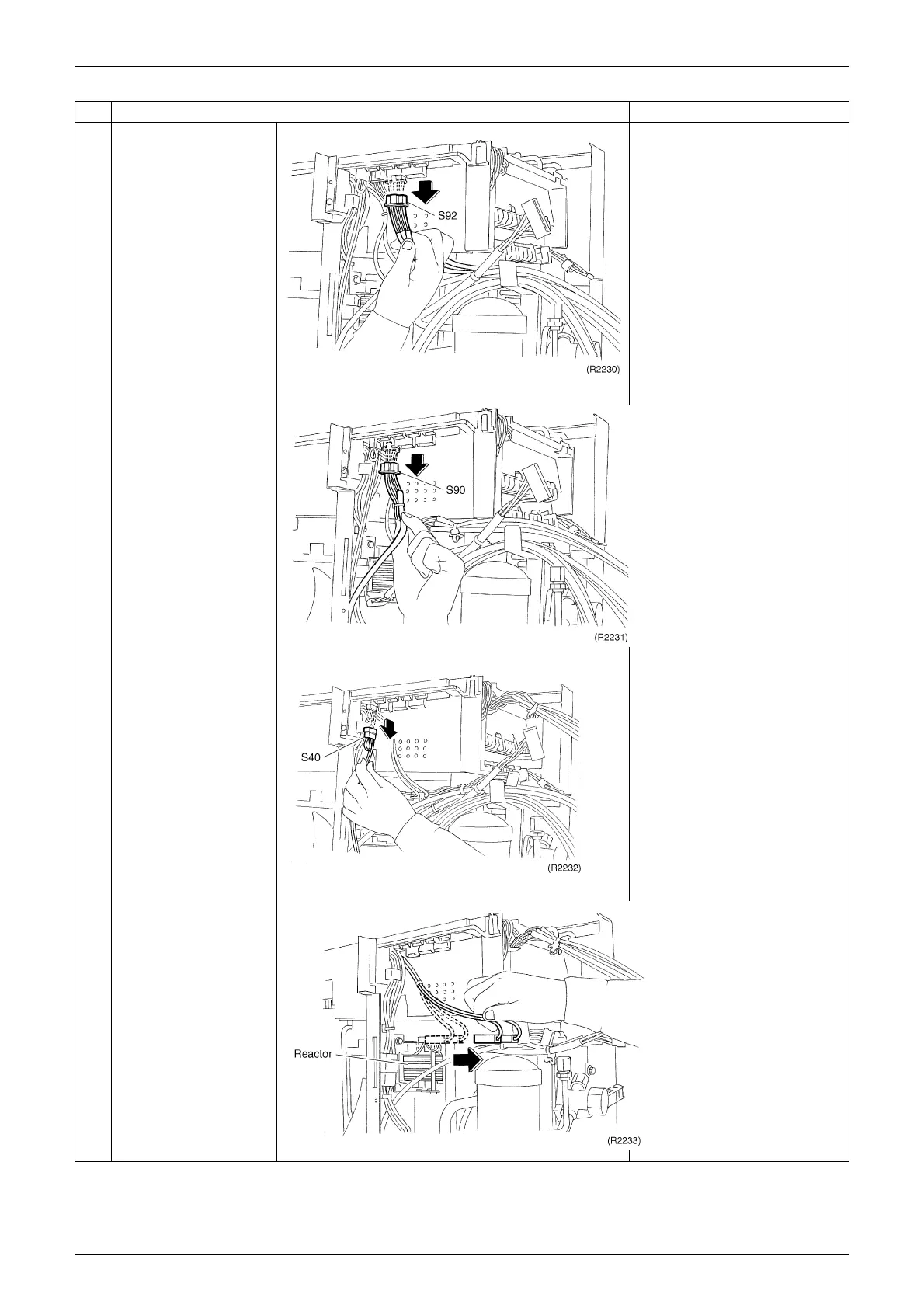

Remove the connector
S92 for gas pipe
thermistor.
5
Remove the connector
S90 for thermistor.

Outdoor air
thermistor (Blue)

Discharge pipe
thermistor (Black)

Heat exchanger
thermistor (Gray)
6
Remove the overload
relay connector S40.
7
Remove the reactor
lead wire.
Step
Procedure Points
