11

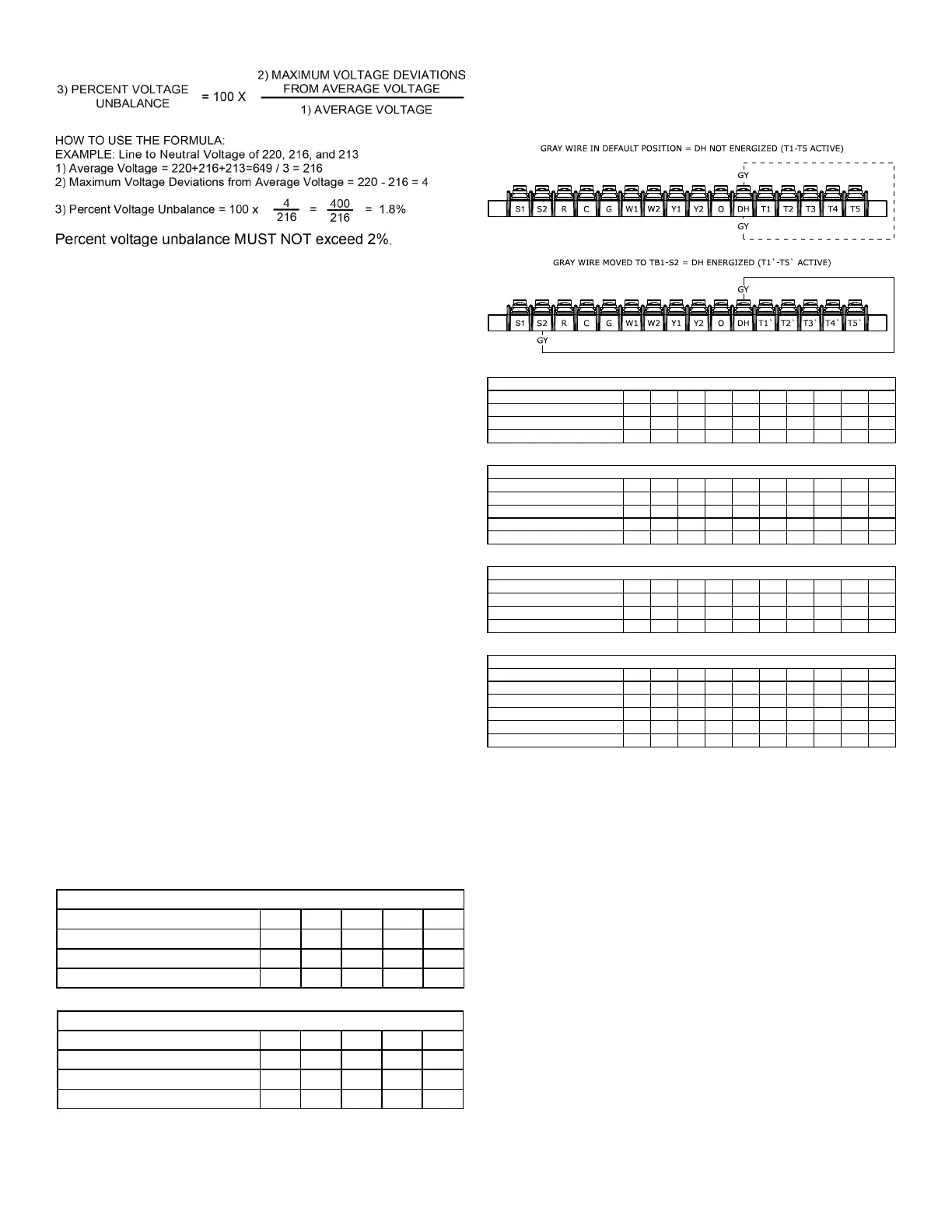

ID MOTOR TAPS T1 T2 T3 T4 T5
ALLOWABLE SPEED TAPS 3-5 TON STD STATIC AC
ID MOTOR TAPS T1 T2 T3 T4 T5
COOLING/HEATING (YL) - X* X X X
ALLOWABLE SPEED TAPS 3-5 TON STD STATIC HP
ID MOTOR TAPS
T1 T2 T3 T4 T5 T1' T2' T3' T4' T5'
FAN (GR) X* - - - - X - - - -
COOLING (YL)
- X* X X X - X X X X
HEATING (WH) -
X
X* X X - X X X X
ALLOWABLE SPEED TAPS 3-5T HIGH STATIC AC
ID MOTOR TAPS T1 T2 T3 T4 T5 T1' T2' T3' T4' T5'
FAN (GR) X* - - - - X - - - -
COOLING STG1 (YL) - X* - - - - X - - -
COOLING STG2 (PU) - - X X* X - - X X X
E-HEAT (WH) - - X* X X - - X X X
ALLOWABLE SPEED TAPS 6T STD AND HIGH STATIC AC
ID MOTOR TAPS
T1 T2 T3 T4 T5 T1' T2' T3' T4' T5'
FAN (GR) X* - - - - X - - - -
COOLING/HEATING (YL)
- X* X X X - X X X X
E-HEAT (WH) - X X* X X - X X X X
ALLOWABLE SPEED TAPS 3-5T HIGH STATIC HP
ID MOTOR TAPS T1 T2 T3 T4 T5 T1' T2' T3' T4' T5'
FAN (GR) X* - - - - X - - - -
COOLING STG1 (YL) - X* - - - - X - - -
COOLING STG2 (PU) - - X* X X - - X X X
HEATING (BR) - - X X* X - - X X X
E-HEAT (WH) - - X X* X - - X X X
ALLOWABLE SPEED TAPS 6T STD AND HIGH STATIC HP
