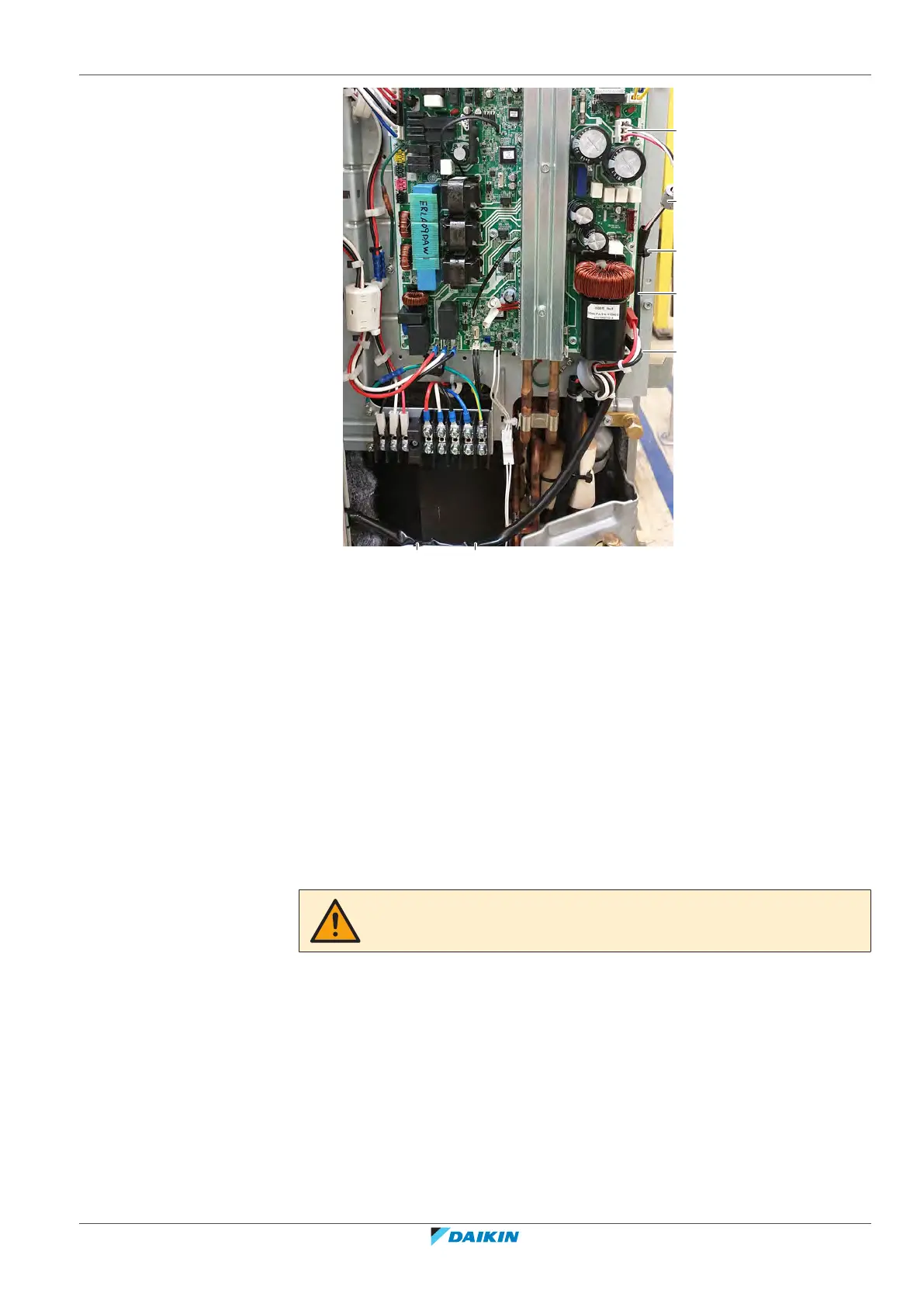

a DC fan motor connector X108A
b DC fan motor harness
c Tie strap (left side of PCB)
d Tie strap (on stop valve fixation plate)
e Ferrite core
6 Connect the DC fan motor connector to the connector X108A on the main
PCB.
7 On the left side of the main PCB, install new tie straps to fix the DC fan motor
harness.
8 Install 2 new tie straps to fix the DC fan motor harness to the stop valves
fixation plate.
9 Install the propeller fan blade assembly, see "Repair procedures"[4226].
To install the propeller fan blade assembly
1 Install the propeller fan blade assembly on the DC fan motor assembly.
CAUTION
Do NOT install a damaged propeller fan blade assembly.
2 Install and tighten the nut to fix the propeller fan blade assembly.
