3 | Components
Service manual
242
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
2
2
2
1
4×
3.55 N • m
a
a Speed nut

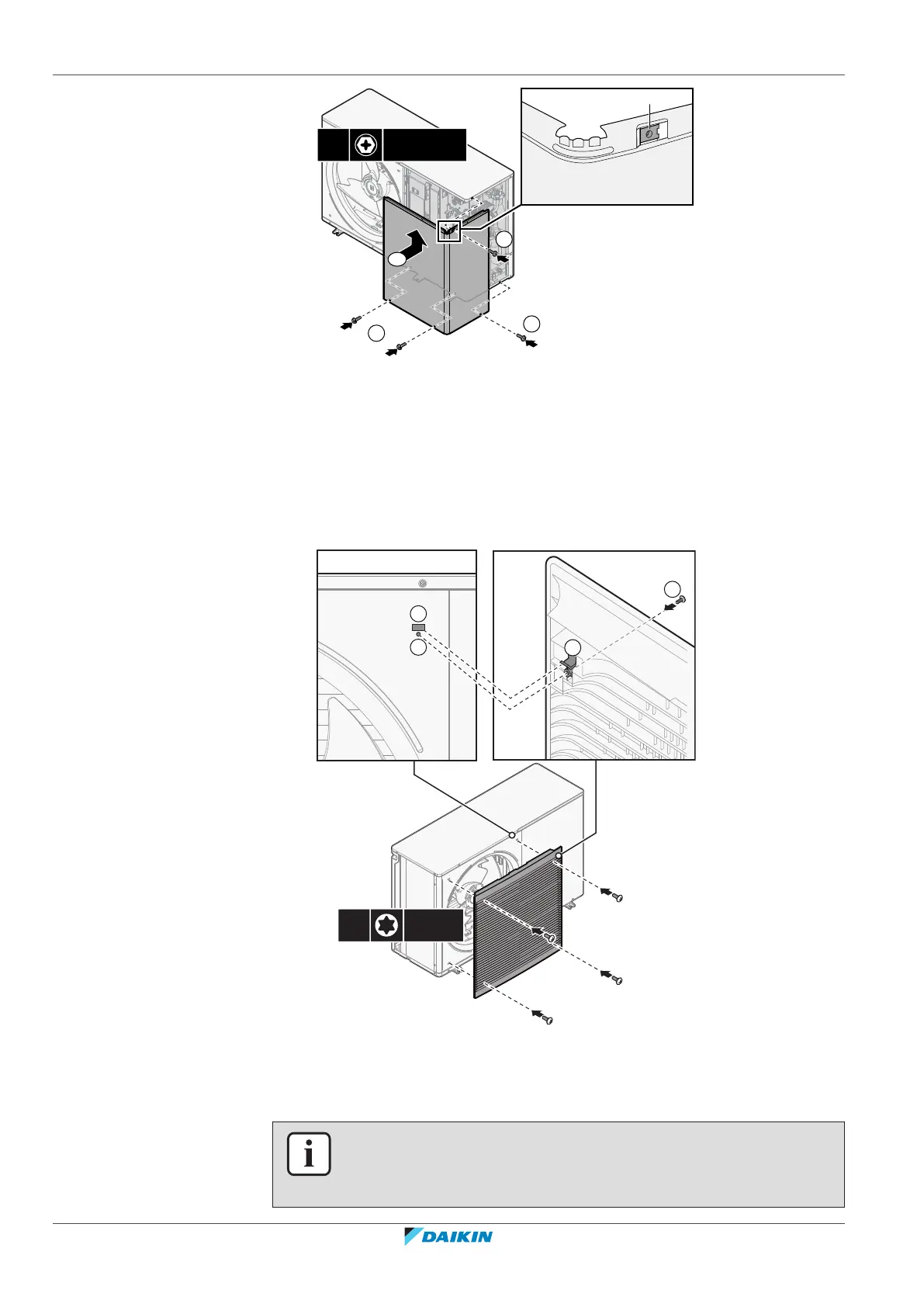

3.17.7 To install the discharge grille
1 Insert the hooks. To prevent breaking the hooks:
▪ First insert the bottom hooks (2×).
▪ Then insert the top hooks (2×).
2 Insert and fix the screws (4×)(delivered as accessory).
1
2
2
1
4 N • m
4×
T25
3.18 Reactor
INFORMATION
Procedures are ONLY for reactors of the single phase outdoor unit.
NO procedures available for reactors of the 3‑phase outdoor unit.
