3.7.2 Repair procedures
To remove the compressor insulation
Prerequisite: Stop the unit operation via the user interface.
Prerequisite: Turn OFF the respective circuit breaker.
Prerequisite: Remove the required plate work, see "3.17Plate work"[4230].

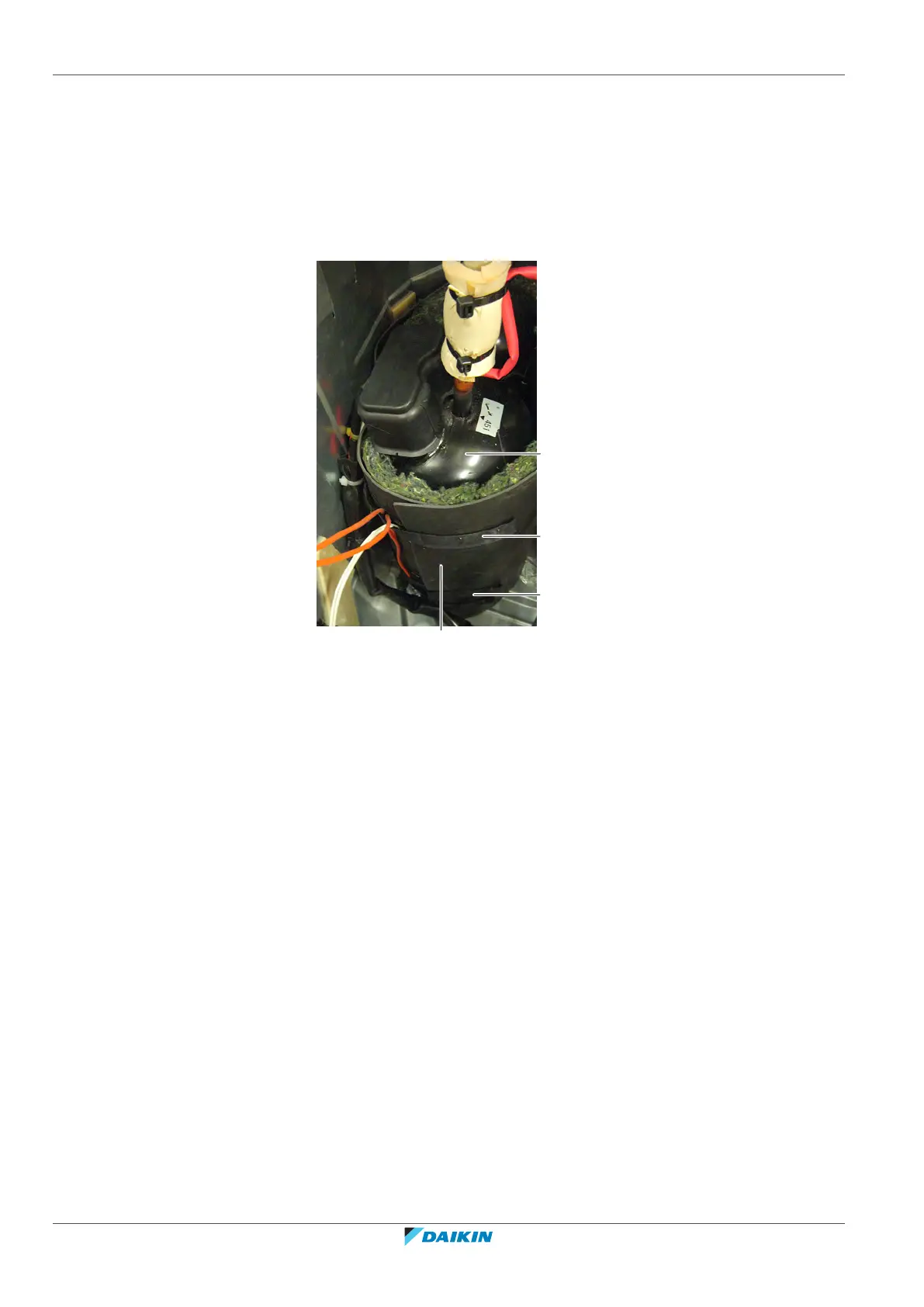

1 Detach all the strips.
b
a
a
c
a Strip
b Compressor insulation
c Compressor
2 Remove the compressor insulation from the compressor.
3 To install the compressor insulation, see "3.7.2Repair procedures"[4140].
To install the compressor insulation
1 Install the insulation around the compressor.
