7 | Installation
Installer reference guide
68
ERGA04~08DAV3(A) + EHVH/X04+08S18+23DA/DJ3V+6V+9W7
Daikin Altherma 3 R F
4P618947-1 – 2020.03
2
1
1
3

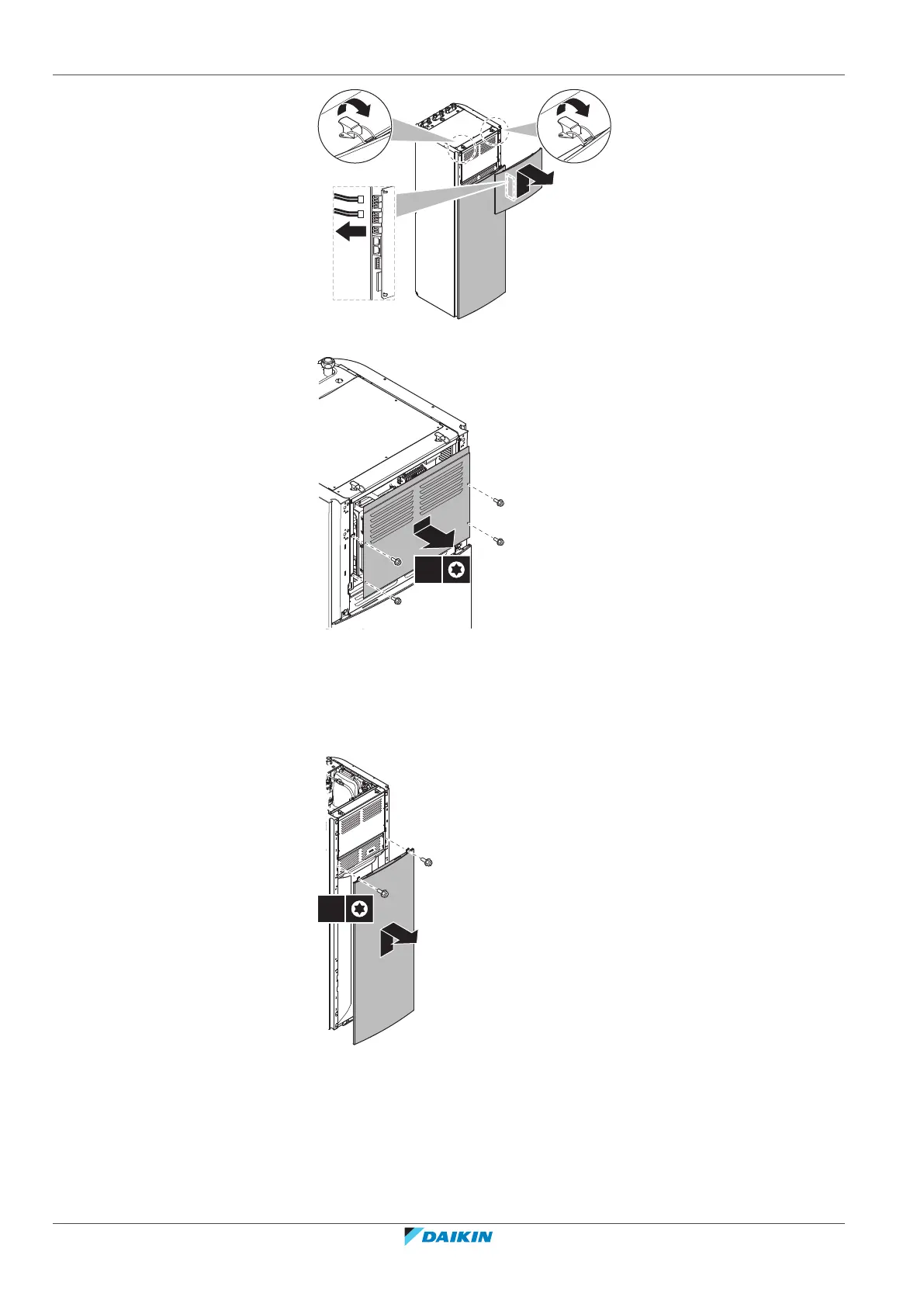

3 Remove the switch box cover.
4×
T25
4 If necessary, remove the front plate. This is, for example, necessary in the
following cases:
▪ "7.2.4To lower the switch box on the indoor unit"[469]
▪ "7.4.4To connect the drain hose to the drain"[477]
▪ When you need access to the high voltage switch box
2×
T25
5 If you need access to the high voltage components, remove the high voltage
switch box cover.
