Daikin ERGA04DAV3A - To Install the Outdoor Unit

7 | Installation
Installer reference guide
73
ERGA04~08DAV3(A) + EHVH/X04+08S18+23DA/DJ3V+6V+9W7
Daikin Altherma 3 R F
4P618947-1 – 2020.03
7.3.4 To install the outdoor unit
CAUTION
Do NOT remove the protective cardboard before the unit is installed properly.
1 Lift the outdoor unit as described in "3.2.2To handle the outdoor unit"[415].

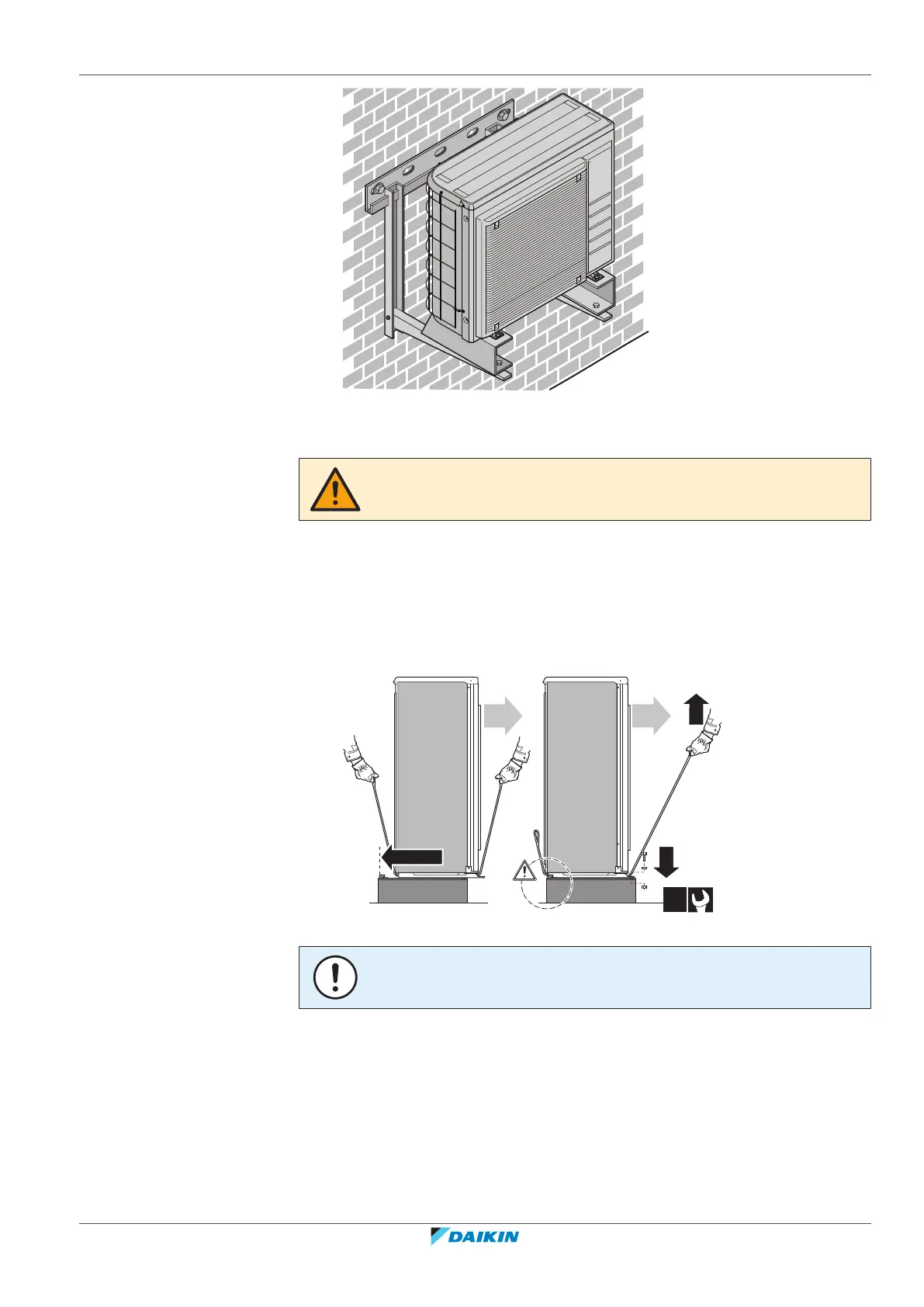

2 Install the outdoor unit as follows:
▪ (1) Put the unit into position (using the sling to the left and the handle to the
right).
▪ (2) Remove the sling (by pulling 1 side of the sling).
▪ (3) Fix the unit.
2×
3
2
1
a a
a Air outlet
NOTICE
Properly align the unit. Make sure the backside of the unit does NOT protrude.
3 Remove the protective cardboard and instruction sheet.
