4P618947-1 – 2020.03

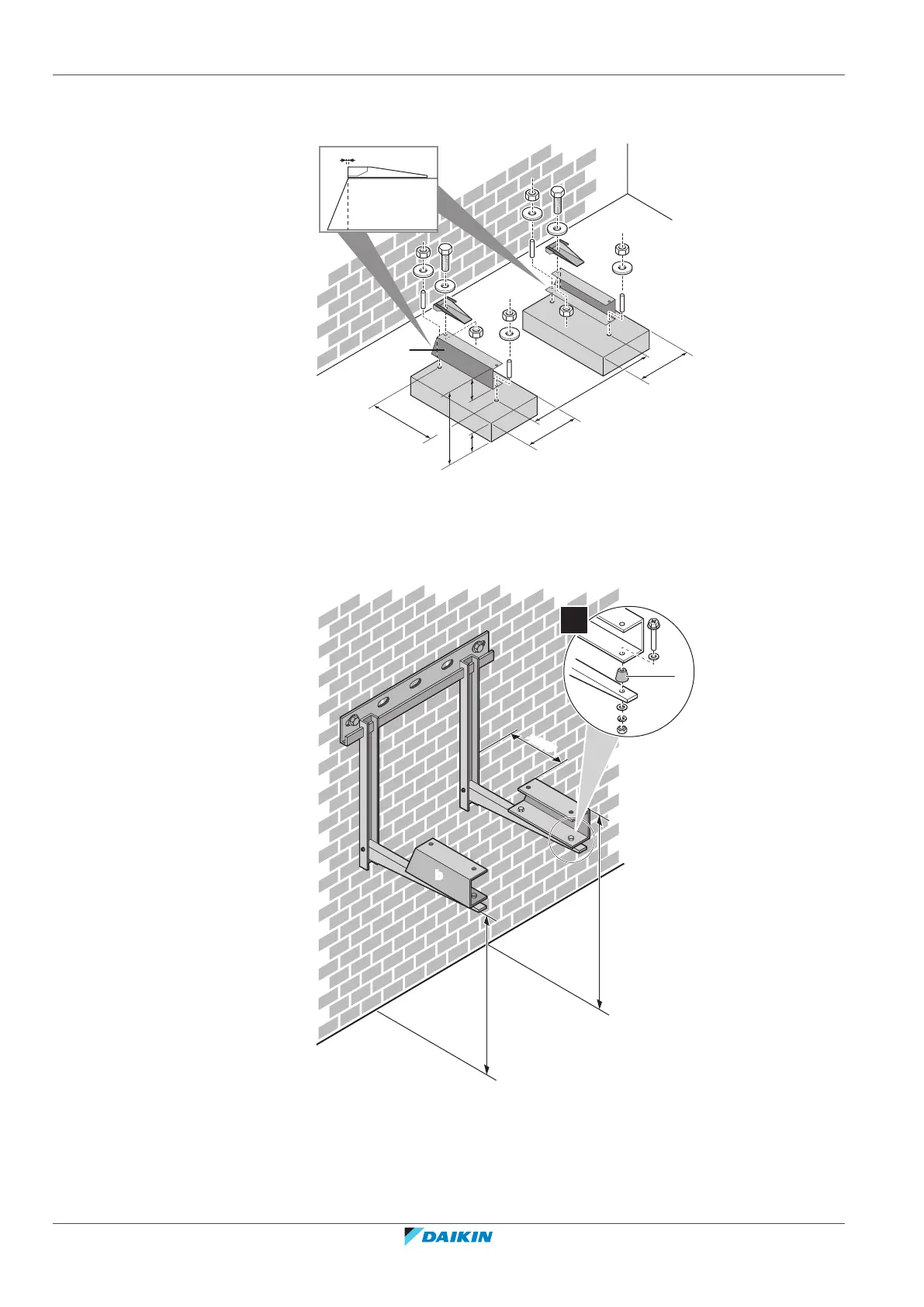

Option 3: On a pedestal with the EKFT008D option kit
The EKFT008D option kit is recommended in areas with heavy snowfall.
300
600
<150
<150
(mm)
>300
100
a
b
0 mm
a Maximum snowfall height
b EKFT008D option kit
Option 4: On brackets to the wall with the EKFT008D option kit
The EKFT008D option kit is recommended in areas with heavy snowfall.
>250
>300
>250
(mm)
a
b
c
4×
a Maximum snowfall height
b EKFT008D option kit
c Anti-vibration rubber (field supply)
