EWAA011~016DA + EWYA009~016DA
Packaged air-cooled water chillers
and packaged air to water heat pumps
4P620246-1B – 2023.11
Examples

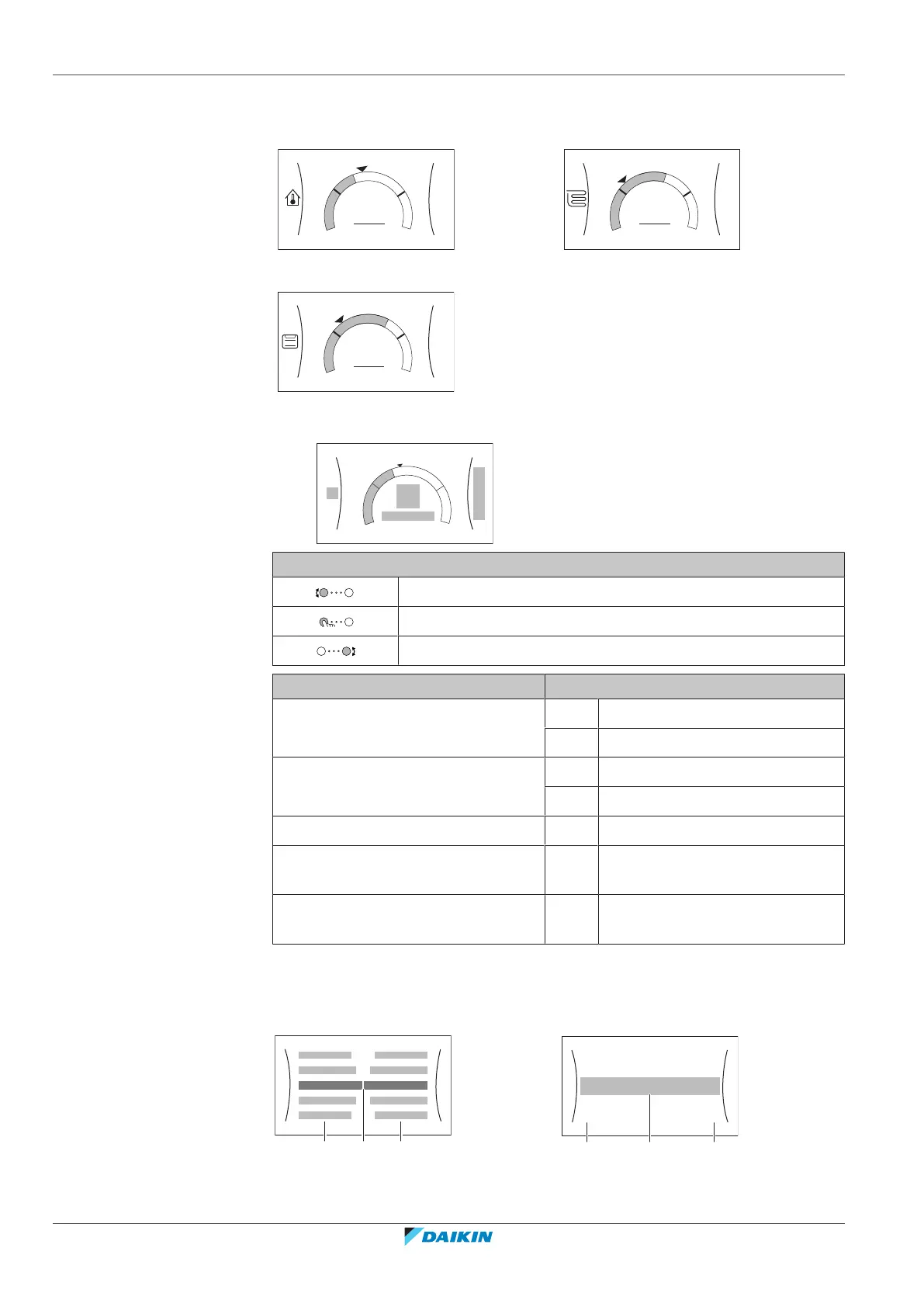

[1] Room temperature screen
+
–
21°C
1
Room
[2] Main zone screen
+
–
20°C
2
Main zone
[3] Additional zone screen
+
–
12°C
3
Additional zone
Explanation
a1
d
+
–
d
e
d
e
c
a2
b1
b2
Possible actions on this screen
Go through the list of the submenu.
Go to the submenu.
Adjust and automatically apply the desired temperature.
Item Description
Minimum temperature limit a1 Fixed by the unit
a2 Restricted by the installer
Maximum temperature limit b1 Fixed by the unit
b2 Restricted by the installer
Current temperature c Measured by the unit
Desired temperature d Turn the right dial to increase/
decrease.
Submenu e Turn or press the left dial to go to
the submenu.
5.3.4 Detailed screen with values
Example:
a bc
a bc
7.2.1
Time/date
Hours
11
30
Minutes
a Settings
b Values
