ESIE10-01 General Outline
Part 1 – System Outline 1–83
3
1
4
5
1.30 Condensor Pressure Drops
Water Pump Kit -
Discharge Head
Notes:
Q The above curves are referred to the discharge head of the pump only.
Q When selecting the pump you have to consider the installation and evaporator pressure drops.
Q When using mixture of water and glycol please contact the factory as above specification can
change.
Notes:
Q The above curves are referred to the discharge head of the pump only.
Q When selecting the pump you have to consider the installation and evaporator pressure drops.
Q When using mixture of water and glycol please contact the factory as above specification can
change.

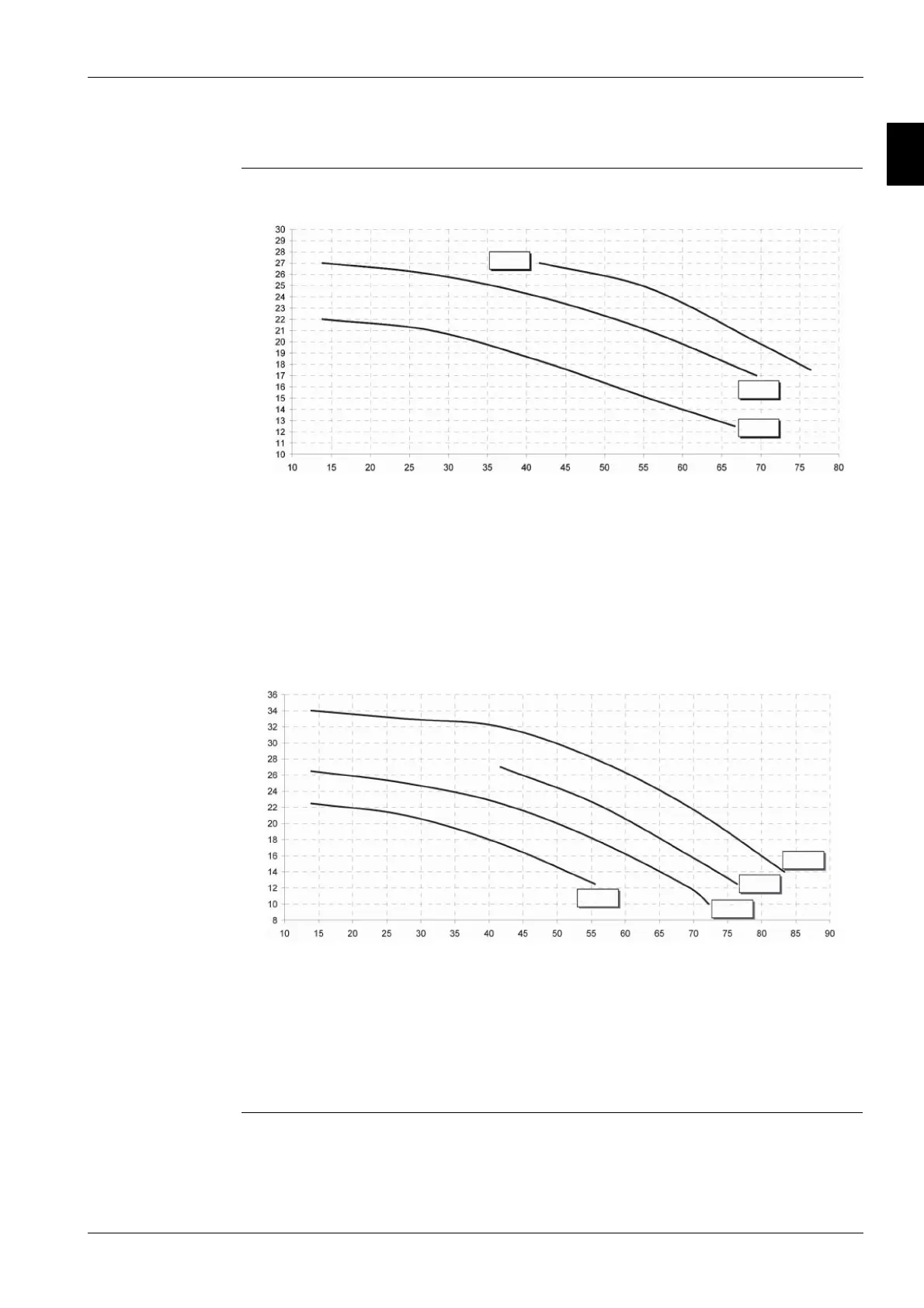

Single Pump (2 poles) - Discharge Head
Water Flow (l/s)
SPK 3
SPK 2
SPK 1
Pump Discharge Head (m)
Twin Pump (2 poles) - Discharge Head
Water Flow (l/s)
Pump Discharge Head (m)
DPK 3
DPK 4
DPK 2
DPK 1
