General Outline ESIE10-01
1–90 Part 1 – System Outline
3
11
4
5

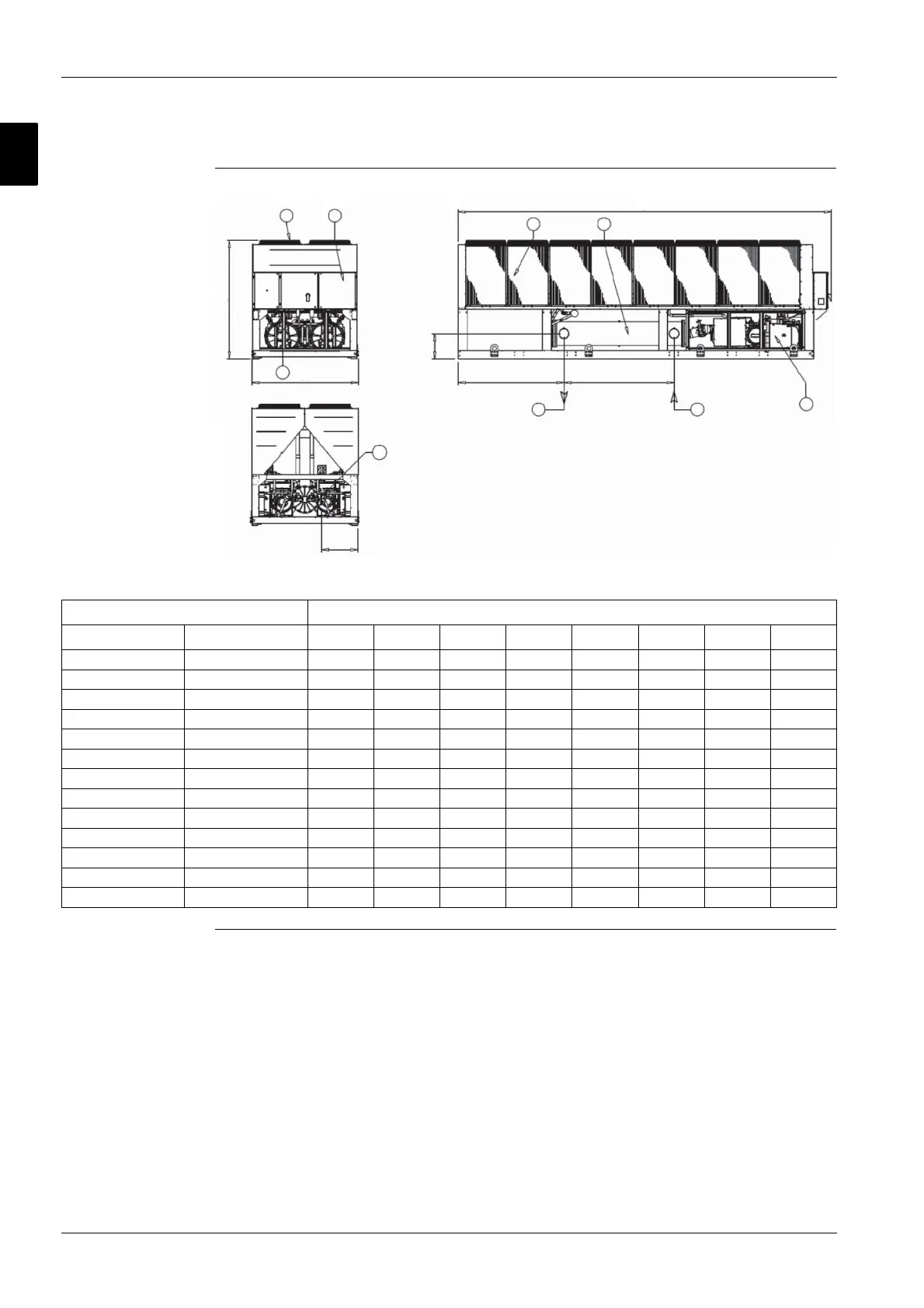

1.33 Dimensional Drawing
Dimensions
EWAD~C-
(2 circuits)
Notes 1. Condenser Coil
2. Water heat exchanger (evaporator)
3. Evaporator water inlet
4. Evaporator water outlet
5. Victaulic connection
6. Operating and control panel
7. Slot for power and control connection
8. Fan
9. Compressor
EWAD-C~ Dimensions
Size Size A B C D E F G Fans
650 ÷ 830 SS/SL 620 ÷ 720 SR 2285 6185 2540 450 2412 435 810 Nr 10
910 ÷ 970 SS/SL 880 ÷ 920 SR 2285 6185 2540 450 2412 435 810 Nr 12
C11 SS/SL C10 SR 2285 7085 2540 1350 2412 435 810 Nr 14
C12 SS/SL C11 SR 2285 7985 2540 2250 2412 435 810 Nr 16
760 XS/XL 740 XR 2285 6185 2540 470 2412 435 810 Nr 12
830 ÷ 800 XS/XL 810 ÷ 870 XR 2285 7085 2540 1370 2412 435 810 Nr 14
990 ÷ C10 XS/XL 970 ÷ C10 XR 2285 7985 2540 2270 2360 540 760 Nr 16
C11 ÷ C13 XS/XL C11 ÷ C13 XR 2285 9785 2540 4070 2360 540 760 Nr 20
820 ÷ 890 PS/PL 810 ÷ 880 PR 2285 8885 2540 2020 3510 540 760 Nr 18
980 PS/PL 960 PR 2285 8885 2540 2020 3440 540 685 Nr 18
C11 ÷ C12 PS/PL C10 ÷ C11 PR 2285 9785 2540 2920 3440 540 685 Nr 20
C13 PS/PL C13 PR 2285 11085 2540 4205 3440 540 685 Nr 22
C14 PS/PL C14 PR 2285 11985 2540 5105 3440 540 685 Nr 24
