ESIE10-01 General Outline
Part 1 – System Outline 1–91
3
1
4
5

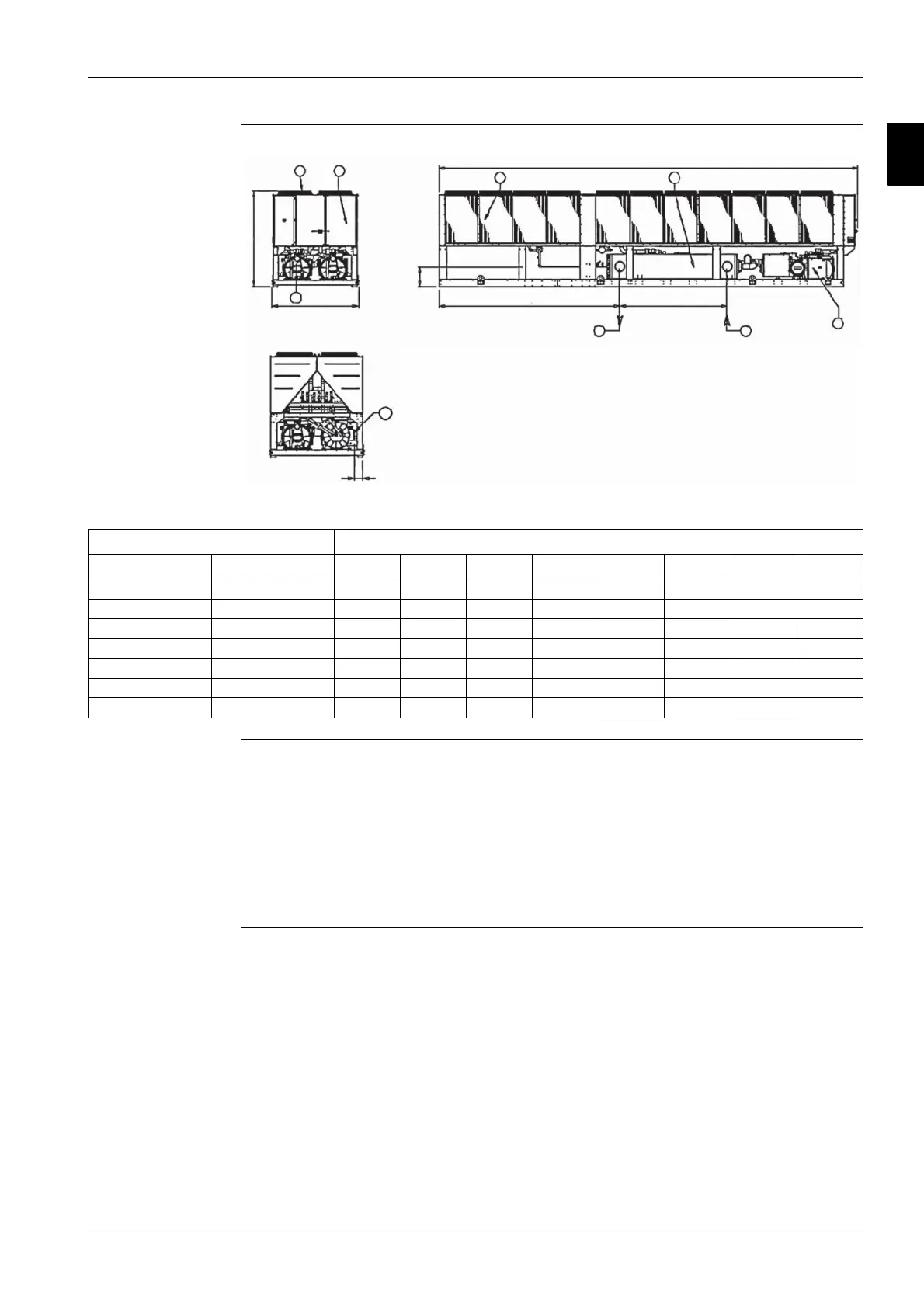

Dimensions
EWAD~C-
(3 circuits)
Notes 1. Condenser Coil
2. Water heat exchanger (evaporator)
3. Evaporator water inlet
4. Evaporator water outlet
5. Victaulic connection
6. Operating and control panel
7. Slot for power and control connection
8. Fan
9. Compressor
EWAD-C~ Dimensions
Size Size A B C D E F G Fans
C14 ÷ C15 SS/SL C13 ÷ C14 SR 2285 10185 2540 4440 2360 540 285 Nr 20
C16 ÷ C17 SS/SL C15 ÷ C16 SR 2285 11085 2540 5340 2360 540 285 Nr 22
C14 XS/XL C14 XR 2285 11985 2540 5680 2910 540 285 Nr 24
C15 ÷ C16 XS/XL C15 ÷ C16 XR 2285 11985 2540 5680 2840 540 210 Nr 24
C17 XS/XL C17 XR 2285 12885 2540 6580 2840 540 210 Nr 26
C18 XS/XL C18 XR 2285 13785 2540 7480 2840 540 210 Nr 28
C19 XS/XL C19 XR 2285 14685 2540 8380 2840 540 210 Nr 30
