Daikin EWAT_B - Electrical Data

Operating Manual
22/38
EWAT_B

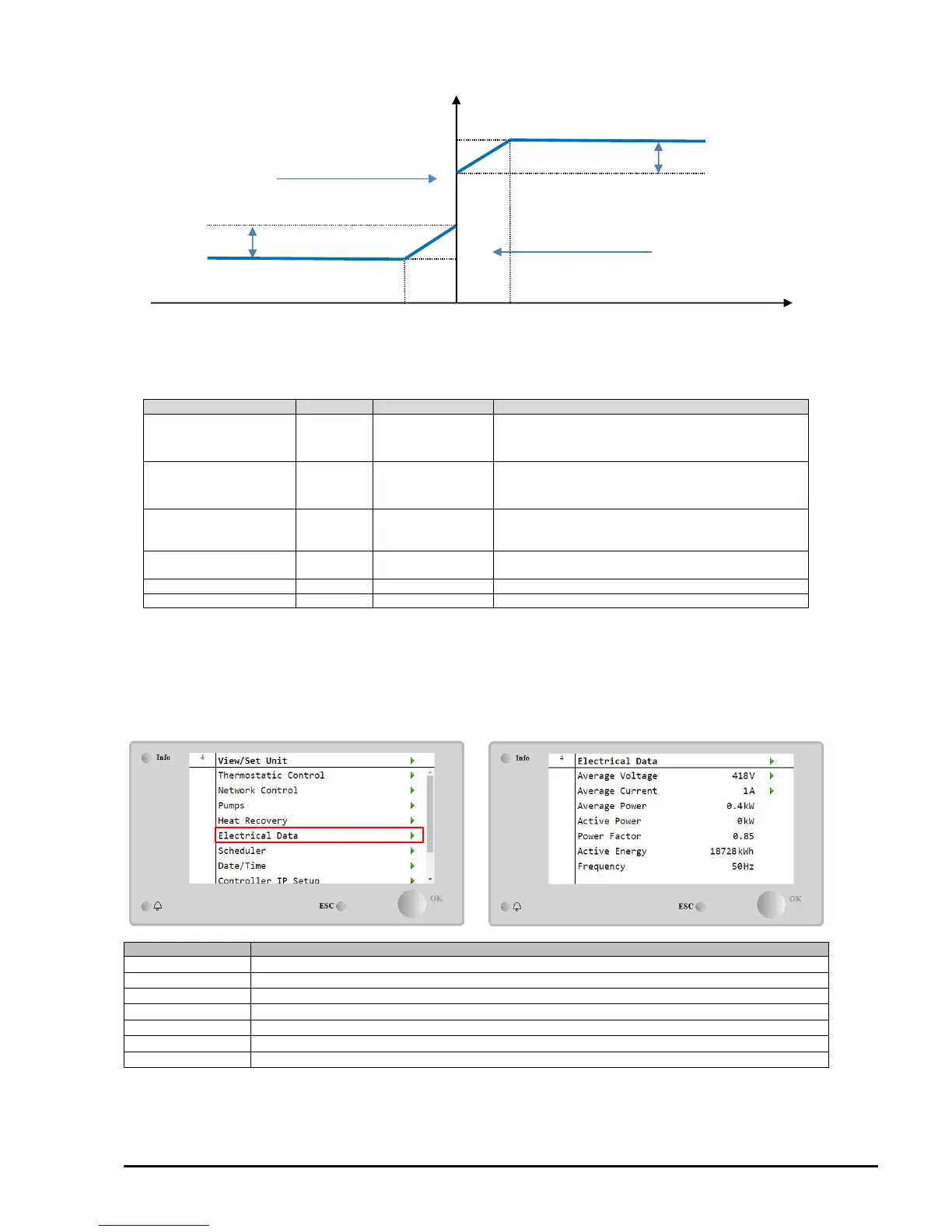

Graph 4 Evap ∆T vs Active Setpoint - Cooling mode(left)/ Heating mode(right)
4.11 Electrical Data
Unit controller returns main electrical values read by the energy meter Nemo D4-L or Nemo D4-Le. All data are collected
in the menu Electrical Data.
Main Page  View/Set Unit  Electrical Data
Parameter
Description
Average Voltage
Returns the average of the three chained voltages and links to the Voltage Data page
Average Current
Returns the current average and links to the Current Data page
Average Power
Returns the average power
Active Power
Returns the active power
Power Factor
Returns the power factor
Active Energy
Returns the active energy
Frequency
Returns the active frequency
Parameter
Default
Range
Description
Max Reset (MR)
5.0°C
0.0°C  10.0°C
Max Reset setpoint. It represents the maximum
temperature variation that the selection of the EWT option
can cause on the LWT.
Max Reset (MR)
5.0°C
0.0°C  10.0°C
Max Reset setpoint. It represents the maximum
temperature variation that the selection of the DT option
can cause on the LWT.
Start Reset DT (SRT)
5.0°C
0.0°C  10.0°C
It represents the “threshold temperature” of the DT to
activate the LWT setpoint reset, i.e. the LWT setpoint is
overwritten only if the DT reaches/overpasses the SRT.
Delta T
Is the actual evaporator delta temperature. Entering –
Leaving water temperature
OAT
Actual outside ambient temperature
Signal
Actual input current read on the terminals Setpoint Reset
0
SRT
AS
LWT SP
MR
LWT SP - MR
Heating
T
MR
LWT SP
LWT SP + MR
-SRT
Cooling
T trend
T trend
