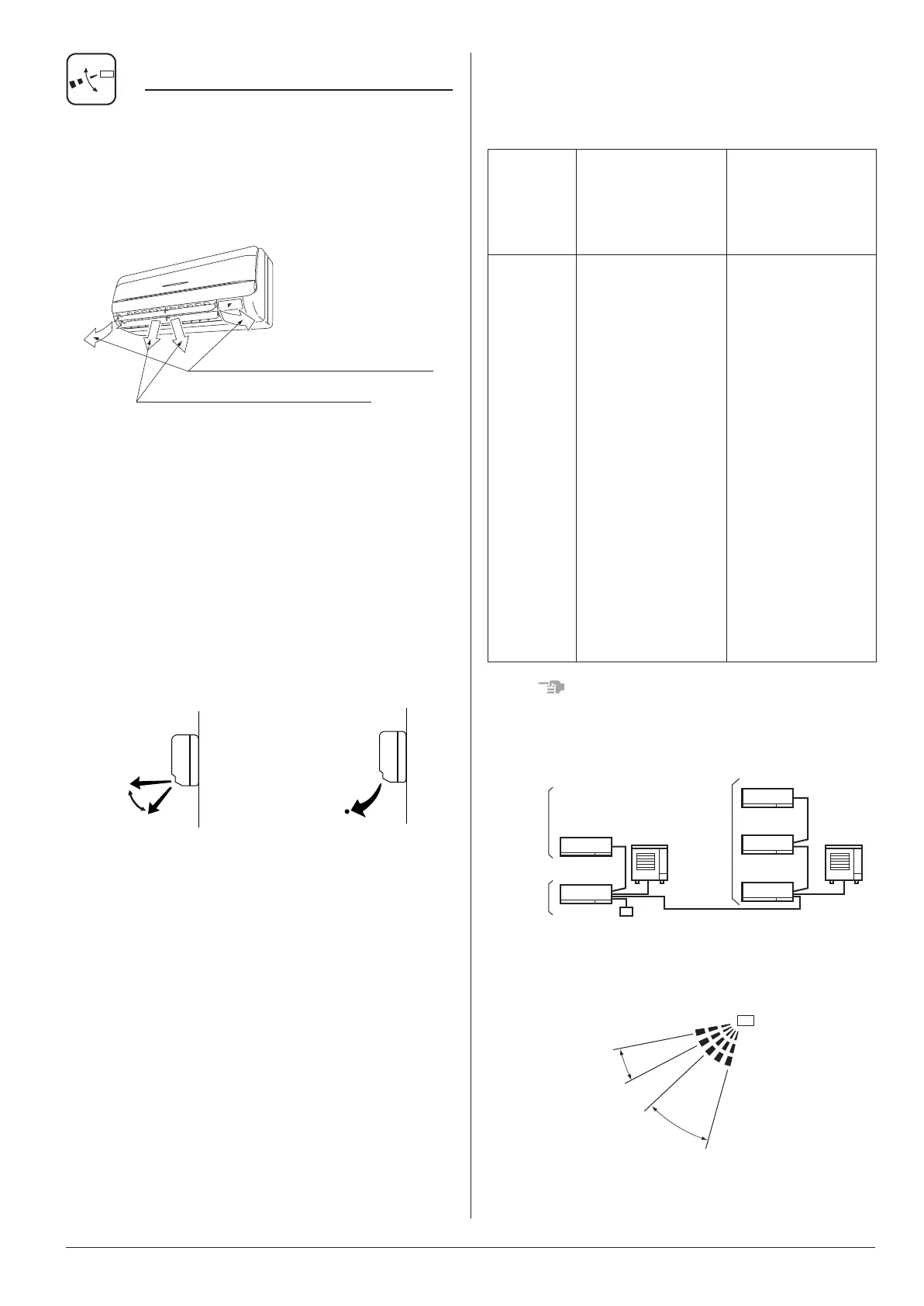

AIRFLOW DIRECTION ADJUST
• There are 2 ways of adjusting the airflow direction.
(When the operation stops, the horizontal blades
blades) close automatically.)
1. A. Up and down direction
2. B. Left and right direction
A. UP AND DOWN DIRECTION
The airflow direction can be adjusted in either of the
following.
Fig. 2
MOVEMENT OF THE HORIZONTAL BLADE
For the following conditions, micro computer
controls the airflow direction so it may be different
from the display.
NOTE
• When group control is performed on the
simultaneous operation system (twin and triple),
airflow direction cannot be individually set on the
slave units.
We recommend using the fan in the position shown
above when fixing the fan direction.
Operation
mode
• COOLING
• AUTOMATIC
COOLING
• PROGRAM
DRY
• HEATING
• AUTOMATIC
HEATING
Up and
down
direction
• When operating
continuously at
downward
airflow direction
(Air blows in the
automatically set
direction for a
period of time
to prevent
condensation
on the horizontal
blades.)
• When room
temperature is
higher than the
set temperature
• When the
HEATING
OPERATION
starts or during
the DEFROST
OPERATION (if
frost forms on
the outdoor unit)
(The airflow
direction
becomes
horizontal so
that it does not
blow directly
t
oward your
body.)
Indoor
unit
(Slave)
Indoor
unit
(Master)
Outdoor
unit
Outdoor
unit
Triple
Remote
controller
Twin
Indoor
unit
(Slave)
Recommended airflow direction positions
Cooling
Heating
A. Up and down direction
B. Left and right direction
• Swing
The horizontal blade continuously varies.
• Fixed airflow direction
The horizontal blade can be fixed by the user.
Indoor unit
(Automatic)
Indoor unit
(Desired position)
