8 Wiring diagram

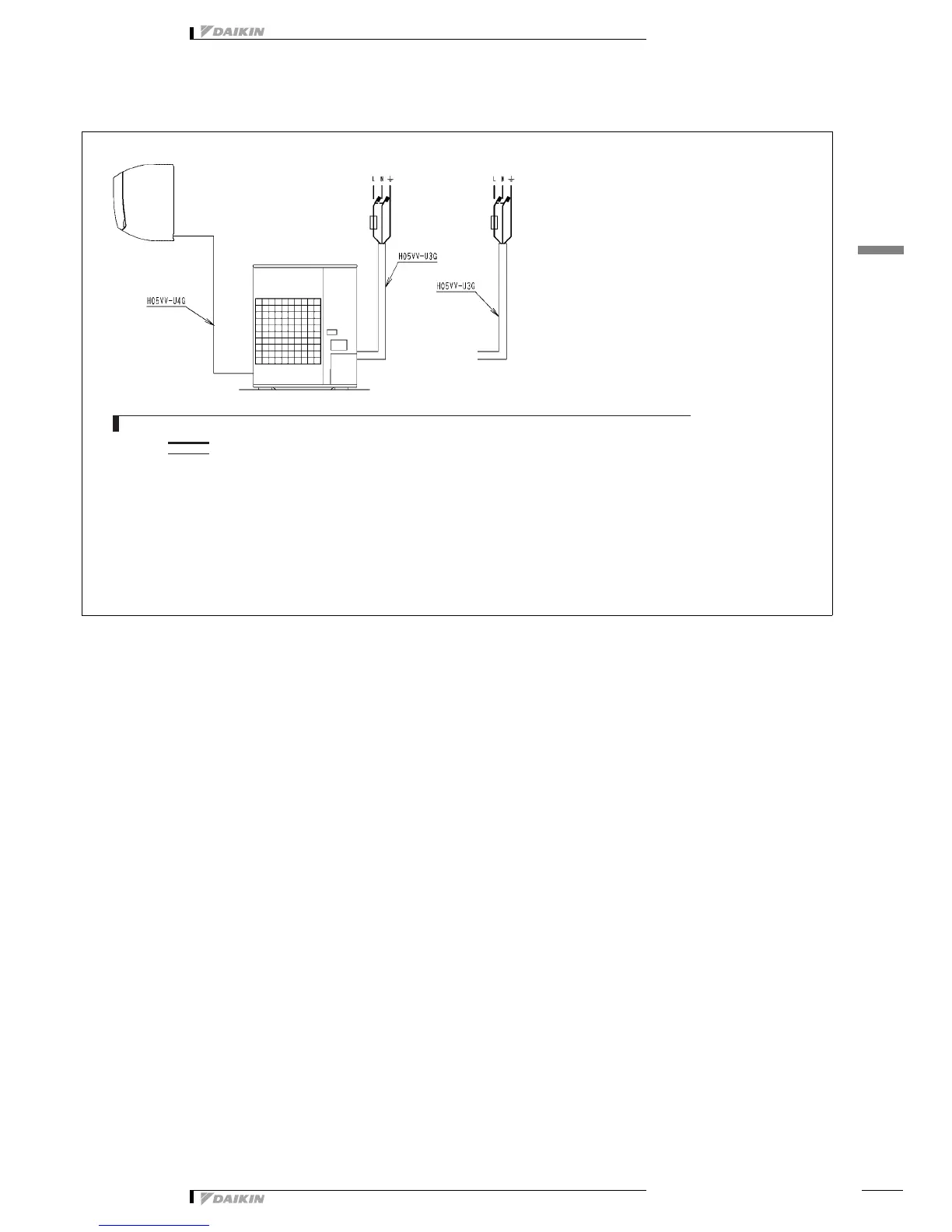

8 - 2 External connection diagram
4D044475
V1, Model
Power supply
1∼50Hz
220V-240V
Main switch
Fuse
Fuse
NOTES
1
Line voltage wiring
Control circuit wiring
2 All wiring, components and materials to be produced on the site must comply with the applicable local and national codes.
3 Use copper conductors only.
4 See wiring diagrams for details.
5 Install fuse and mainswitch for safety.
6 All field wiring and components must be provided by a licensed electrician.
7 The unit shall be grounded in compilance with the applicable local and national codes.
8 Wiring shown are general points-of-connection guides only and are not intended for or to include all details for a specific
installation.
9 Never share a common power supply with other equipment.
V3, Model
Power supply
1∼50Hz
230V
Main switch
To Next Page
