4 | About the units and options
Installer and user reference guide
22
FCAG35~140BVEB
Split system air conditioners
4P561448-1B – 2021.07
In combination with R32 outdoor units
Outdoor units Cooling Heating
RZAG71~140 –20~52°CDB –20~24°CDB
–20~18°CWB
17~38°CDB
12~28°CWB
10~27°CDB
RZASG71~140 –15~46°CDB –15~21°CDB
–15~15.5°CWB
20~38°CDB
14~28°CWB
10~27°CDB
AZAS71~140 –5~46°CDB –15~21°CDB
–15~15.5°CWB
20~38°CDB
14~28°CWB
10~27°CDB
Indoor humidity ≤80%
(a)
(a)
To avoid condensation and water dripping out of the unit. If the temperature or the
humidity is beyond these conditions, safety devices may be put in action and the air
conditioner may not operate.
Outdoor temperature
Indoor temperature

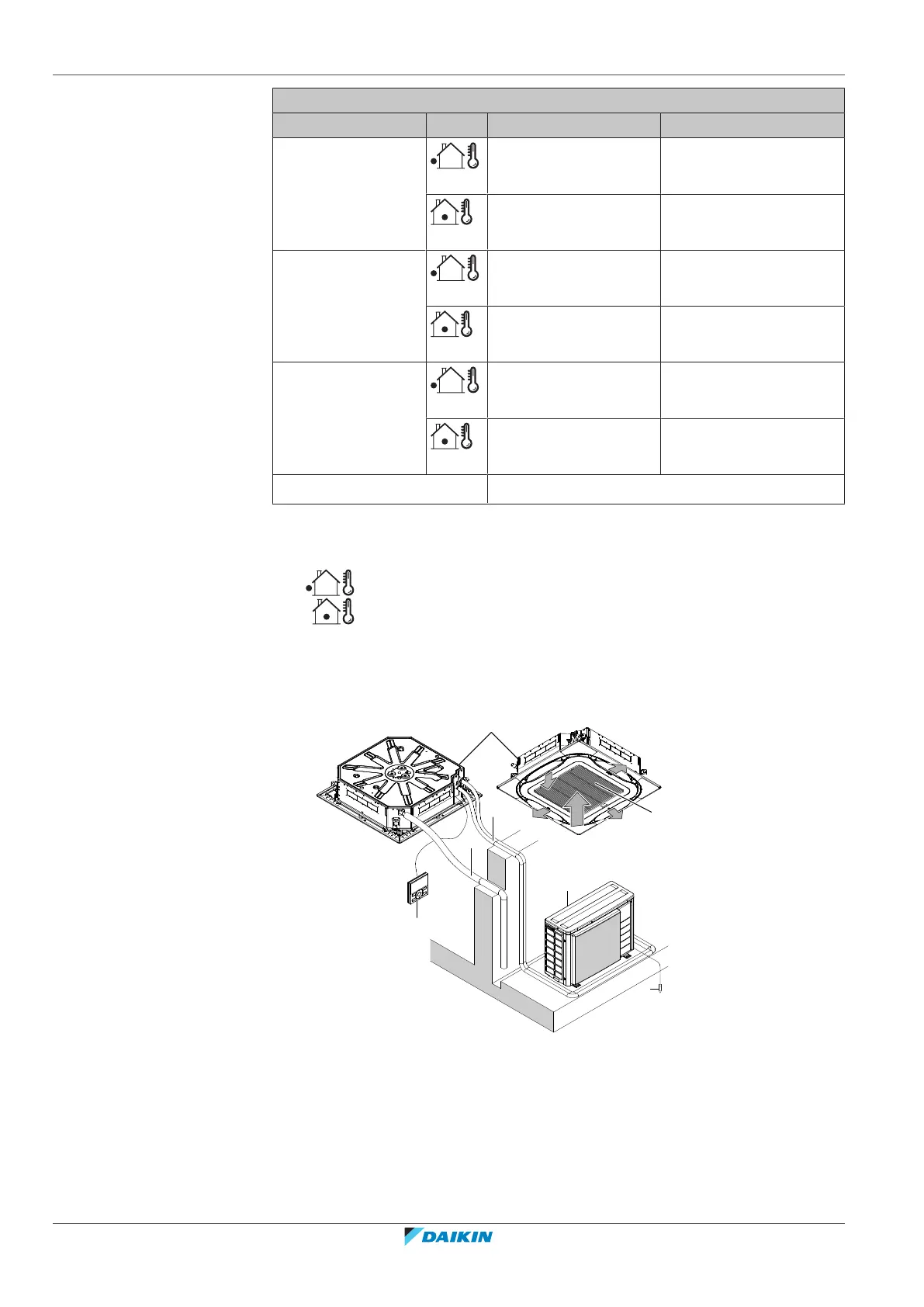

4.4 System layout
a
b
c
d
e
i
f
g
h
a Indoor unit
b Outdoor unit
c User interface
d Suction air
e Discharge air
f Refrigerant piping + interconnection cable
g Drain pipe
h Earth wiring
i Suction grille and air filter
