Daikin FT20FV1M User Manual

1
English

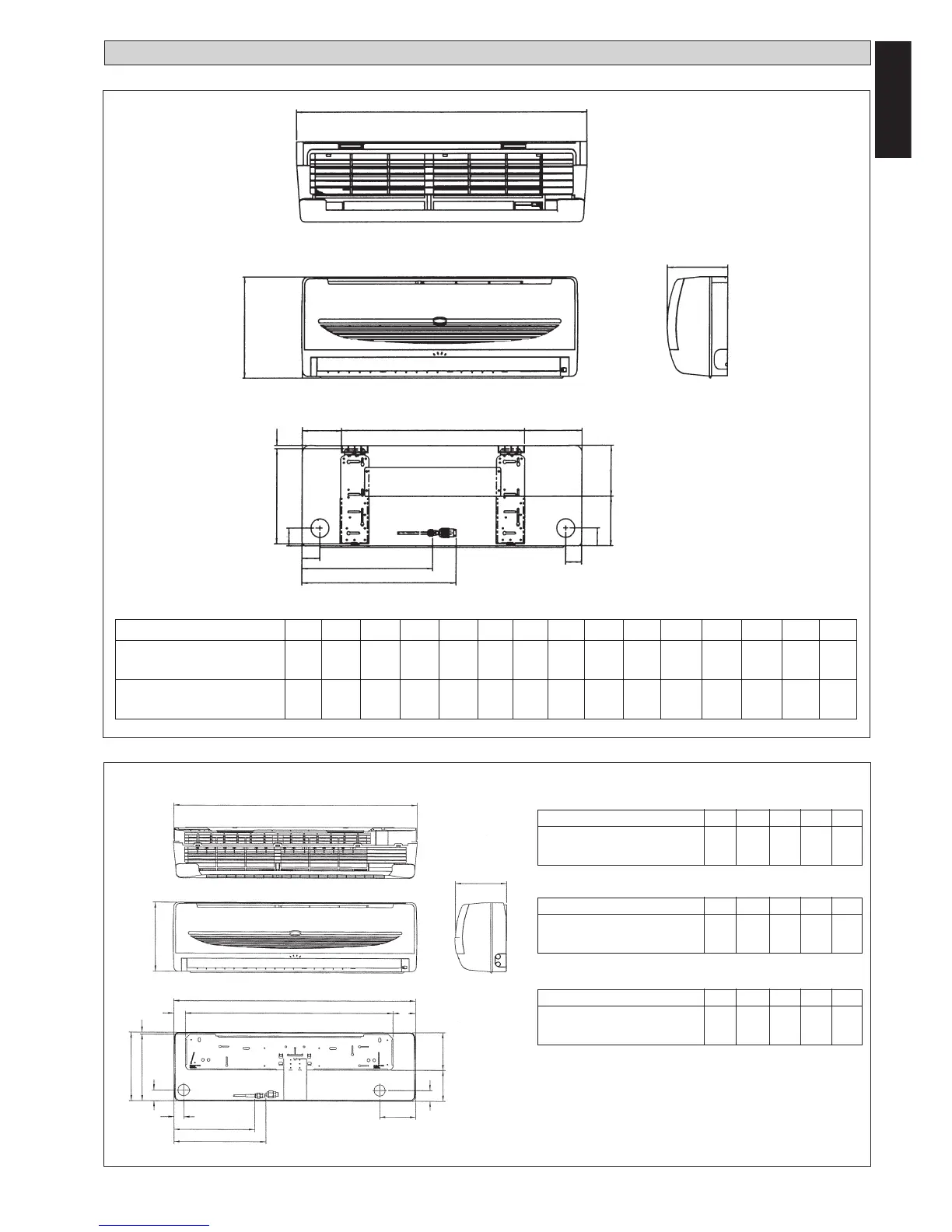

OUTLINE AND DIMENSIONS
All dimensions are in mm/ (in)
FRONT VIEW
TOP VIEW
A
C
DG
F
SIDE VIEW
INSTALLATION
PLATE
O
N
I
M
B
E
H
I
J
K
L
Dimension A B C D E F G H I J K L M N O
FT20FV1M/FT25FV1M 799 260 198 379 246 185 124 8 56 50 319 379 50 128 132
(31.5) (10.2) (7.8) (15.0) (9.7) (7.3) (4.9) (0.3) (2.2) (2.0) (12.6) (15.0) (2.0) (5.1) (5.2)
FT28FV1M/FT35FV1M 899 260 198 590 246 185 124 8 56 50 419 495 50 128 132
(35.4) (10.2) (7.8) (23.2) (9.7) (7.3) (4.9) (0.3) (2.2) (2.0) (16.5) (19.5) (2.0) (5.1) (5.2)
Dimension A B C D E
FT50FV1M / FT60FV1M9 1060 310 220 912 294
(41.7) (12.2) (8.6) (35.9) (11.6)
FRONT VIEW
TOP VIEW
INSTALLATION
PLATE
I
O
N
SIDE VIEW
C
A
D
CENTER LINE
F
B
G
H
B
M
I
K
L
J
A
Indoor Unit
All dimensions are in mm/ (in)
Dimension K L M N O
FT50FV1M / FT60FV1M9 354 403 160 138 160
(13.9) (15.9) (6.3) (5.4) (6.3)
Dimension F G H I J
FT50FV1M / FT60FV1M9 99 51 8 48 43
(3.9) (2.0) (0.3) (1.9) (1.7)
M
