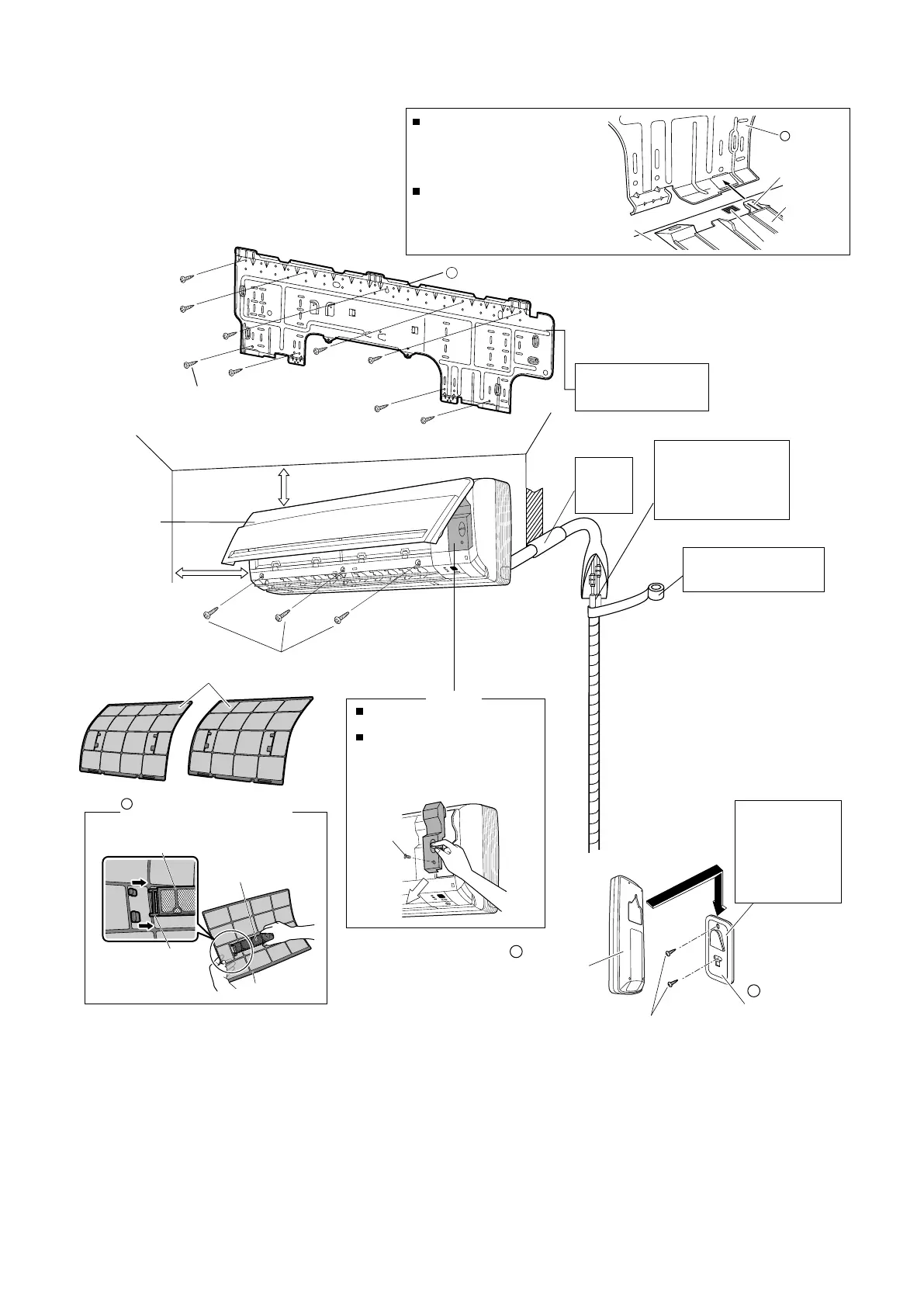

Indoor Unit Installation Drawings
Screws
(M4 × 16L)
M4 × 16L
30mm or more from ceiling
Front panel
50mm or more
from walls
(on both sides)
Service lid
Opening service lid
Service lid is opening/closing type.
Opening method
1) Remove the service lid screws.
2) Pull out the service lid diagonally
down in the direction of the arrow.
3) Pull down.
Wrap the thermal insulation
pipe with the finishing tape
from bottom to top.
Cut thermal insulation
pipe to an appropriate
length and wrap it with
tape, making sure that no
gap is left in the insulation
pipe’s cut line.
Caulk
pipe hole
gap
with putty.
The mounting plate
should be installed on a
wall which can support the
weight of the indoor unit.
How to attach the indoor unit
Hook the claws of the bottom frame
to the mounting plate.
If the claws are difficult to hook,
remove the front grille.
How to remove the indoor unit
Push up the marked area (at the
lower part of the front grille) to
release the claws. If it is difficult to
release, remove the front grille.
Front grille
A
Mounting
plate
Clip
Bottom frame
Mark (rear side)
Screws
(field supply: M4 × 25L)
A Mounting plate
Fixing screw for remote
controller holder
(field supply: M3 × 20L)
C
Wireless remote
controller
D
Remote
controller holder
Before screwing the
remote controller
holder to the wall,
make sure that
control signals are
properly received by
indoor unit.
Titanium apatite photocatalytic
air-purifying filter (2)
B
Air filters
Titanium apatite
photocatalytic
air-purifying filter
Filter frame
Air filter
Ta b
