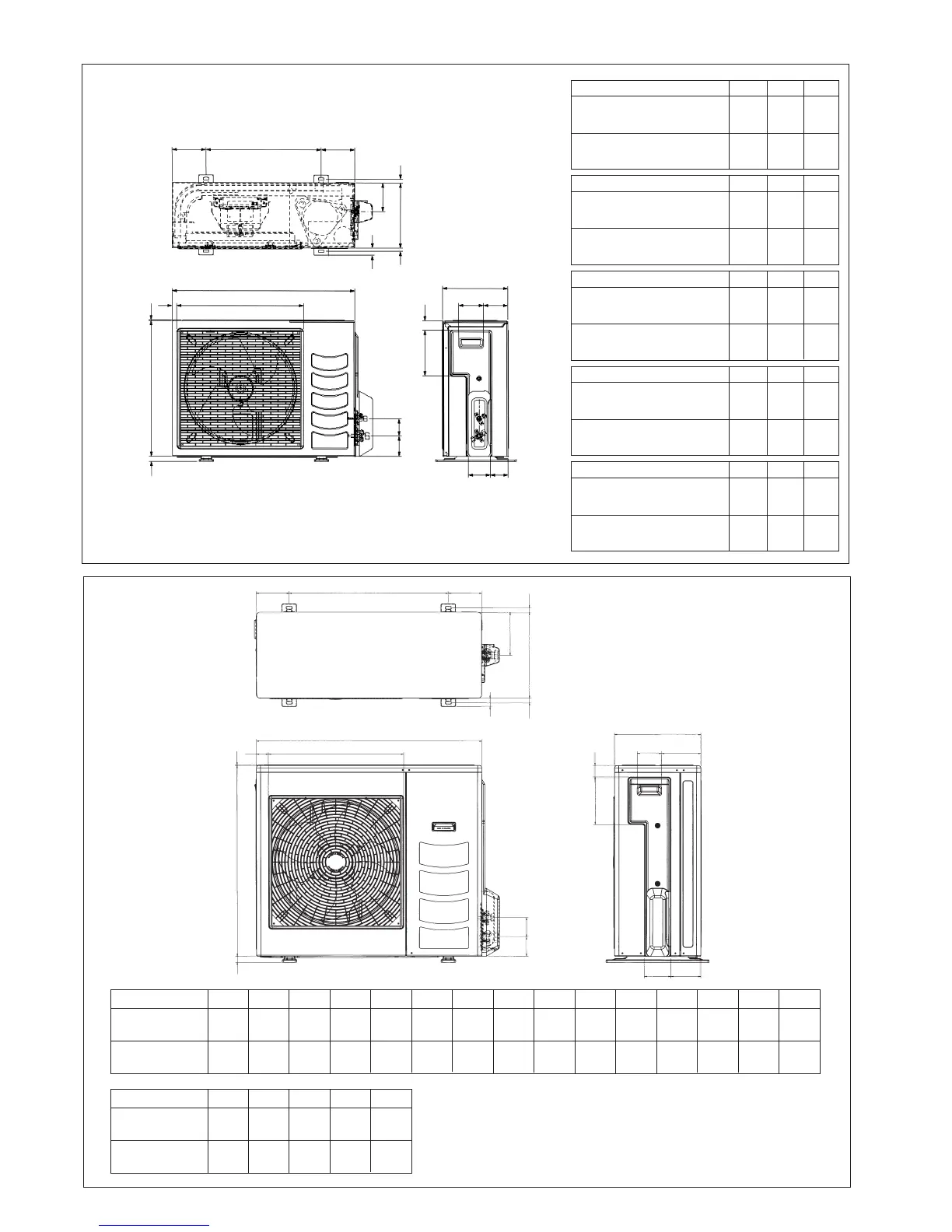

Daikin FT25FV1M - Outdoor Unit Outline and Dimensions; Outdoor Unit Dimension Tables

2
All dimensions are in mm/ (in)
30
(1.2)
19
(0.7)
65
(2.6)
80
(3.1)
L
K
L
NC
M
N
D
A
O
B
E
F
C
GH
I
J
Dimension A B C
R20FV1M/R25FV1M 600 475 245
(23.6) (18.7) (9.6)
R35FV1M 700 521 250
(27.5) (20.5) (9.8)
Dimension G H I
R20FV1M/R25FV1M 93 81 83
(3.6) (3.1) (3.2)
R35FV1M 95 93 86
(3.7) (3.6) (3.3)
Dimension J K L
R20FV1M/R25FV1M 55 398 101
(2.2) (15.6) (3.9)
R35FV1M 68 441 130
(2.6) (17.3) (5.1)
Dimension M N O
R20FV1M/R25FV1M 97 17 22
(3.8) (0.6) (0.8)
R35FV1M 111 15 18
(4.3) (0.5) (0.7)
Dimension D E F
R20FV1M/R25FV1M 418 177 35
(16.4) (6.9) (1.3)
R35FV1M 485 175 36
(19.1) (6.8) (1.4)
3
(0.1)
Outdoor Unit
Dimension A B C D E F G H I J K L M N O
R50FV1M 855 628 328 513 182 44 93 149 101 113 603 126 164 17 49
(33.7) (24.7) (12.9) (20.0) (7.1) (1.7) (3.7) (5.9) (4.0) (4.4) (23.7) (5.0) (6.4) (0.7) (1.9)
R60FV1M9 855 730 328 513 182 44 93 149 101 113 603 126 164 17 47
(33.7) (28.7) (12.9) (20.2) (7.2) (1.7) (3.7) (5.9) (4.0) (4.4) (23.7) (5.0) (6.4) (0.7) (1.9)
KL
C
M
N
A
D
N
P
FE
C
GH
B
Q
R
O
L
ST
IJ
Dimension P Q R S T
R50FV1M 32 3 23 73 75
(1.3) (0.1) (0.9) (2.9) (3.0)
R60FV1M9 32 3 23 73 75
(1.3) (0.1) (0.9) (2.9) (3.0)
All dimensions are in mm/ (in)
FOR R71FV1M
ONLY
