5
■ Outdoor Unit
■
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. Display
8. Air outlet
9. Flap (horizontal blade):
(page 12.)
10. Louvers (vertical blades):
•
The Louvers are inside of the air outlet.
(page 12.)
11. Operation lamp (green)
12. TIMER lamp (yellow):
(page 14.)
13. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refer to the following table.
•
This switch is useful when the remote controller
is missing.
14. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep
■

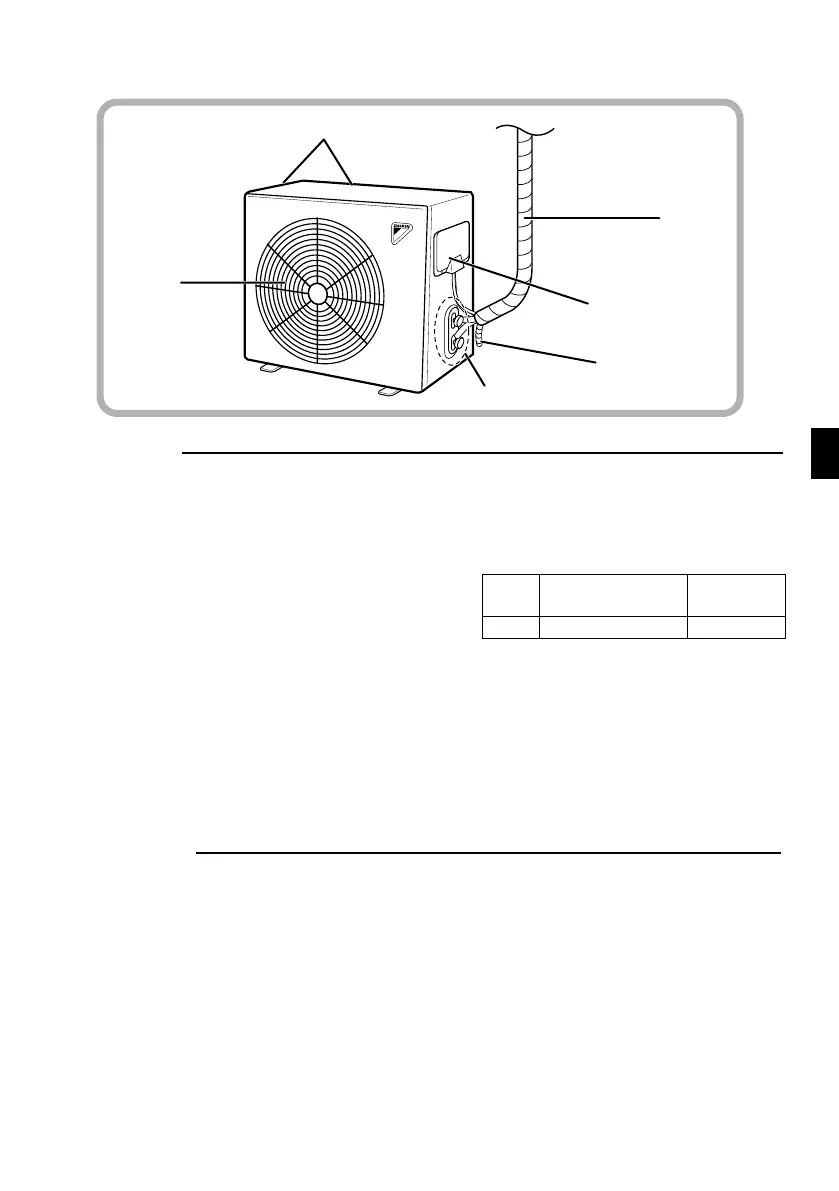

Outdoor Unit
15. Air inlet:
(Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
•
It is inside of this cover.
20. Stop valve:
•
Dew condensation may form on the stop
valve during operation. This does not indicate
any type of malfunction in the outdoor unit.
Appearance of the outdoor unit may differ from some models.
17
16
19
18
17
15
20
Mode
Temperature
setting
Air flow rate
COOL
22°C
AUTO
01_EN_3P192025-3.fm Page 5 Tuesday, October 10, 2006 4:58 PM
