Daikin FTKC24NV2S - Disconnect PCBs and Sensor

PCBs Si041255EH

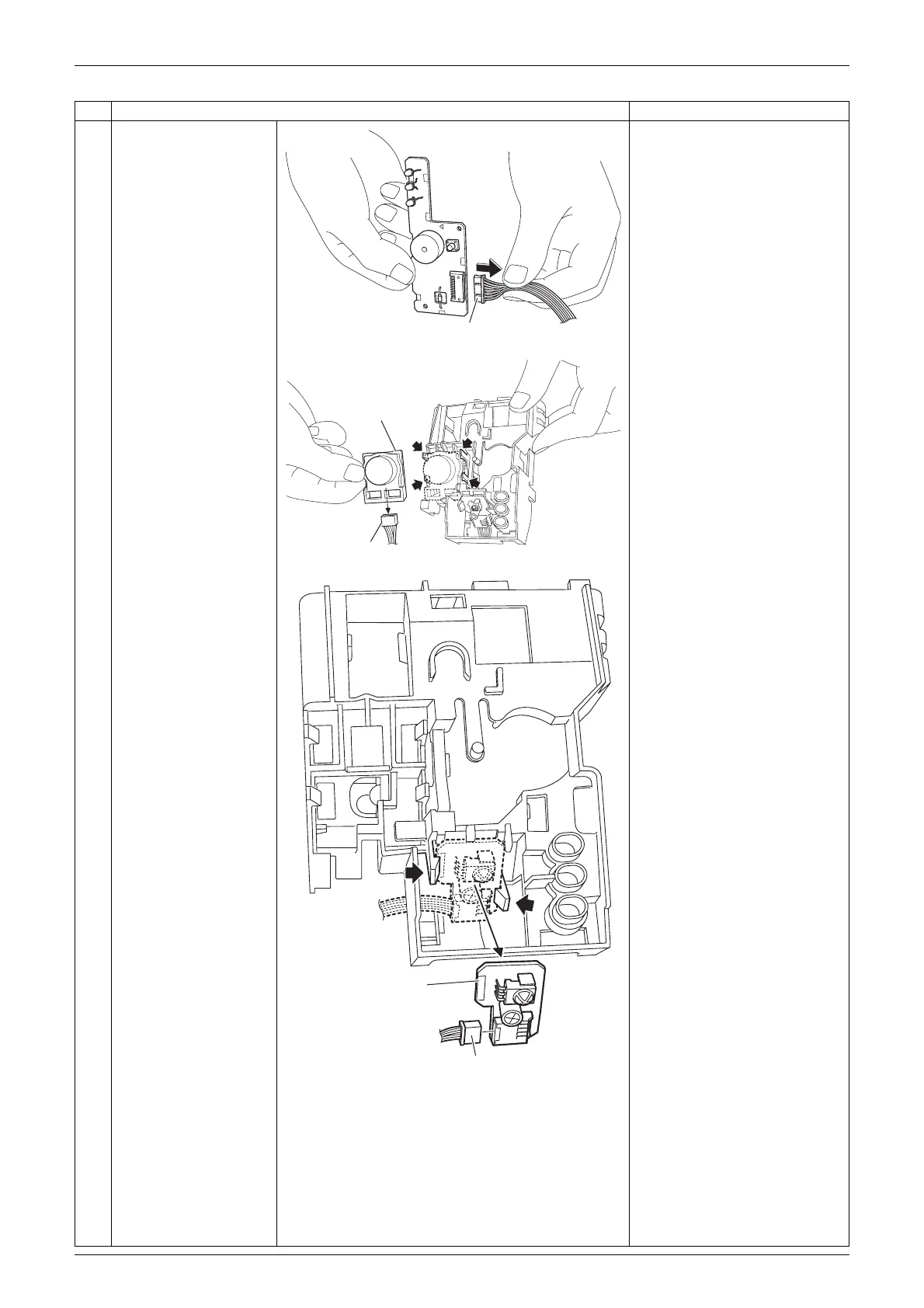

10 Removal Procedure
4 Disconnect the
connector [S49] from
the display PCB.
[S49]: control PCB
5
6
Unfasten the 4 hooks
and remove the
INTELLIGENT EYE
sensor PCB.
Disconnect the
connector [S36].

Some models have no
INTELLIGENT EYE sensor
PCB.
[S36]: control PCB
7
8
Unfasten the 2 hooks
and remove the signal
receiver PCB.
Disconnect the
connector [S48].
[S48]: control PCB
Step Procedure Points
(R11352)
[S49]
INTELLIGENT EYE
sensor PCB
(R11353)
[S36]
Signal receiver
PCB
(R11354)
[S48]
