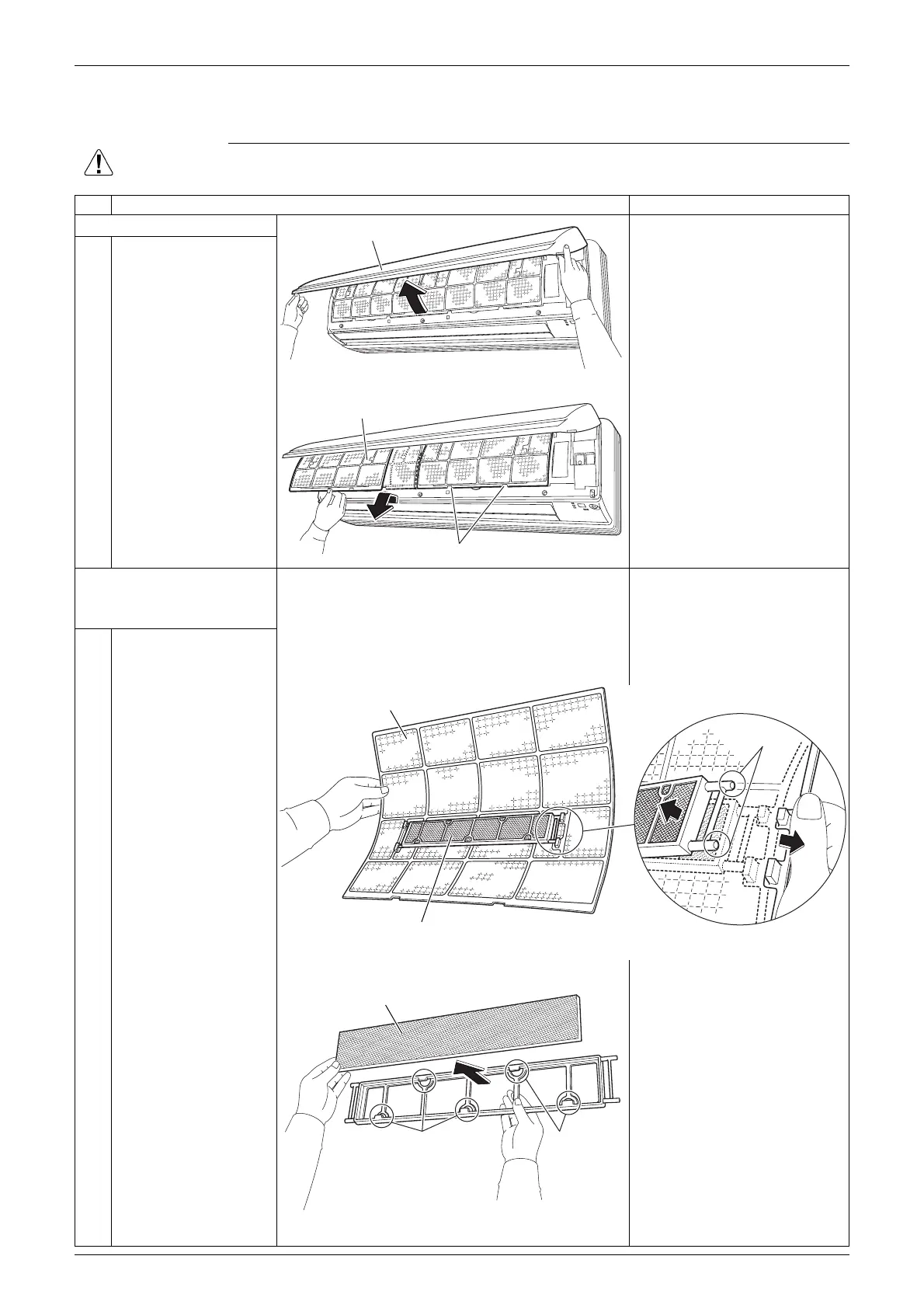

Air Filters Si041255EH
2 Removal Procedure
1. Air Filters
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the air filters.
The air filter is not marked
for difference between the
right and left sides.
Insert the air filter with the
"FRONT" mark faced up.
When reassembling, insert
the air filter along the guides.
1 Open the front panel to
the position where it
stops.
2 Pull out the air filter
downward and remove
it.
Be sure to fit the 2 bottom
hooks when installing the air
filter.
2. Remove the Titanium
apatite photocatalytic air-
purifying filters.
The right and left filters are
interchangeable.
Bend the air filter and
release the projections from
the air filter frame.
1 Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
from the back of the air
filter.
2 Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from the
frame.
Front panel
(R11322)
Air filter
Hook
(R11323)
Air filter
(R17672)
Titanium apatite photocatalytic
air-purifying filter ASSY
Projection
(R18808)
Titanium apatite photocatalytic
air-purifying filter
Hook
Hook
To Next Page
