Daikin FTKC35QVM4 - Page 12

PCBs Si041551EB
10 Removal Procedure
2. Remove the
INTELLIGENT EYE
sensor PCB.

Some models do not have
the INTELLIGENT EYE
sensor PCB.
1 Unfasten the hook of
the display/signal
receiver unit.
2 Release the harness of
the display/signal
receiver unit from the
hook.
3 Release the harness
from the hook.

The INTELLIGENT EYE
sensor PCB can be removed
without disconnecting the
connector.

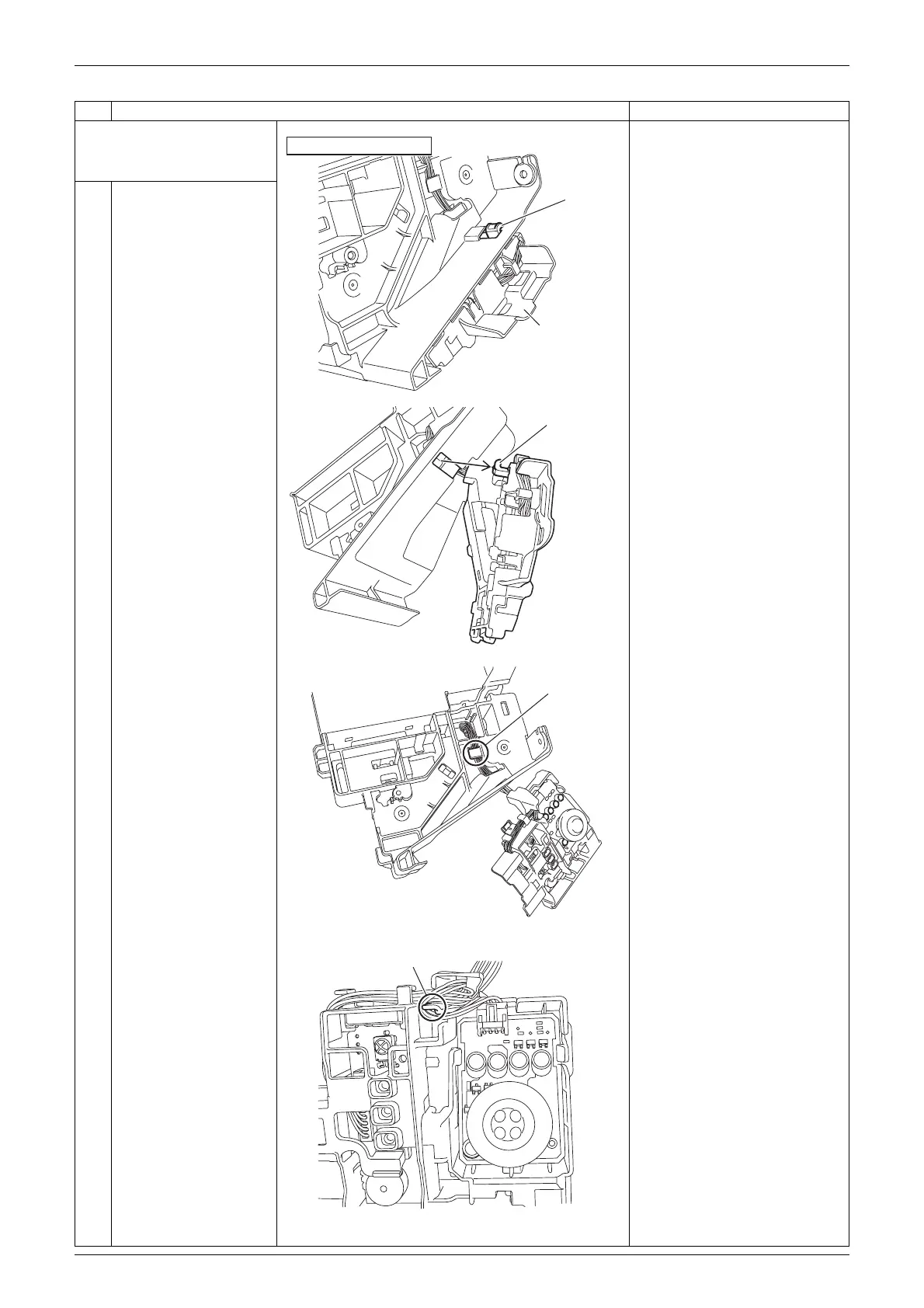

Step Procedure Points
Hook
Display/signal
receiver unit
Back of the electrical box
(R24246)
Hook
(R24247)
Hook
(R22076)
Hook
(R22077)
