Daikin FTKC35QVM4 - Page 13

Si041551EB PCBs

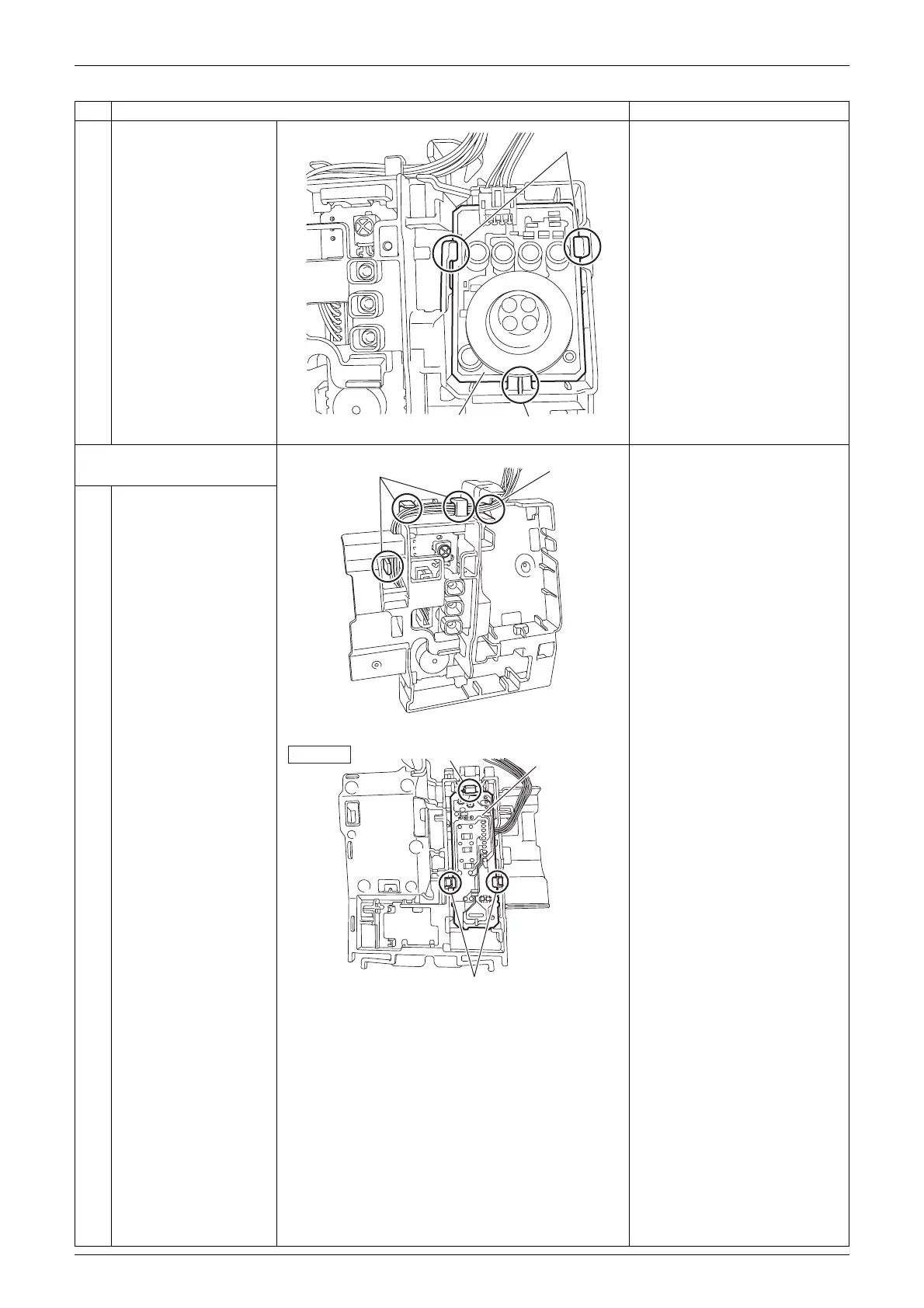

Removal Procedure 11
4 Unfasten the 3 hooks
and remove the
INTELLIGENT EYE
sensor PCB.
3. Remove the display/
signal receiver PCB.
1 Release the harness
from the slit and the 3
hooks.
2 Turn over the PCB
ASSY, unfasten the 3
hooks and remove the
display/signal receiver
PCB.
Step Procedure Points
Hook
Hook
INTELLIGENT EYE sensor PCB
(R24248)
Hook
Slit
(R22079)
Hook
Hook
Back view
Display/signal
receiver PCB
(R24249)
