Daikin FTKC60QVMV - Page 13

Si041652EB PCBs
Removal Procedure 11

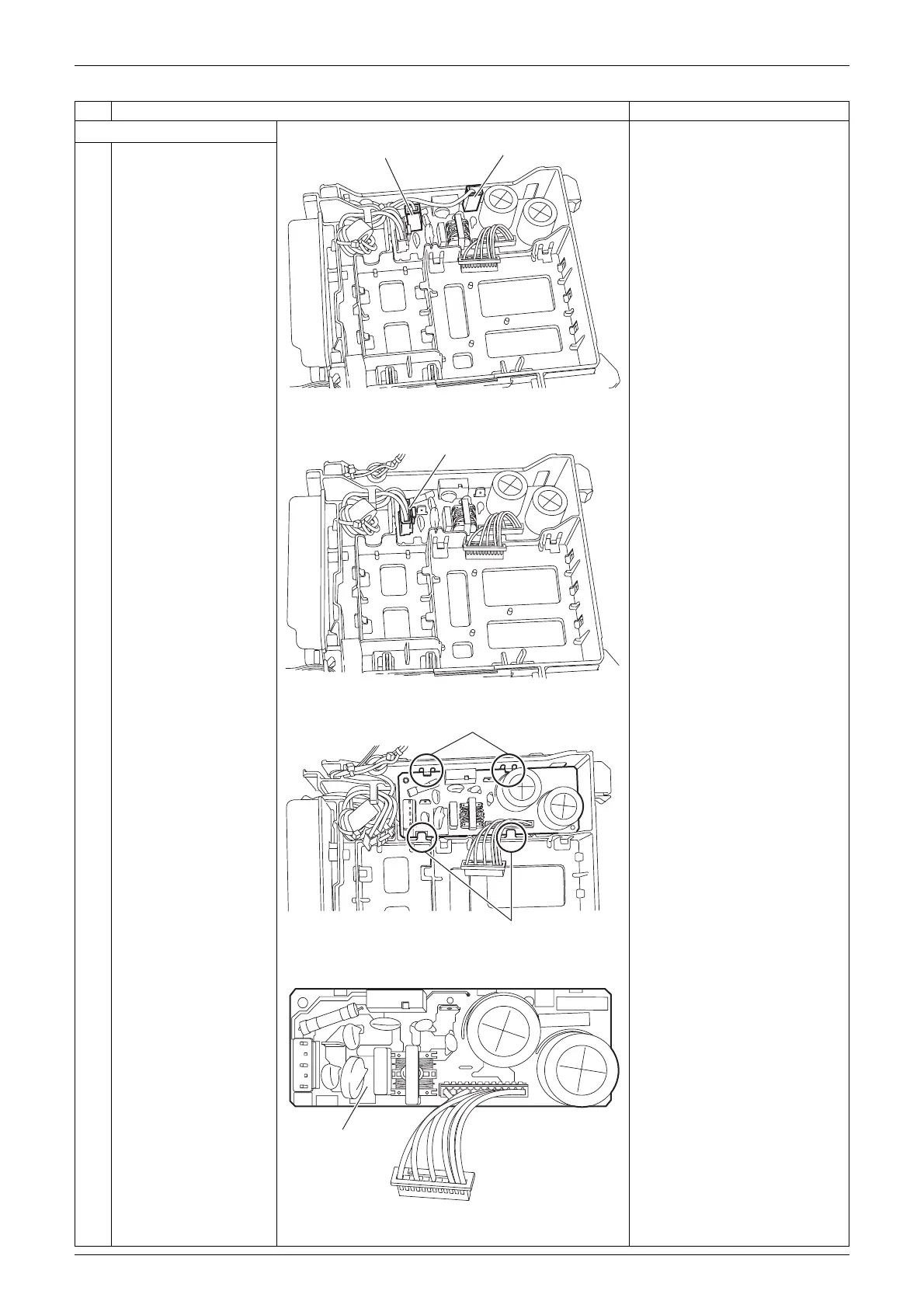

2. Remove the filter PCB. [FG], [HE]: earth/ground
terminal
1 Disconnect the
terminals [HE] and
[FG].
2 Disconnect the
connector [S100].
[S100]: terminal strip
3 Unfasten the 4 hooks
and remove the filter
PCB.
Step Procedure Points
[HE]
[FG]
(R22910)
[S100]
(R22911)
Hook
Hook
(R23523)
Filter PCB
(R22913)
