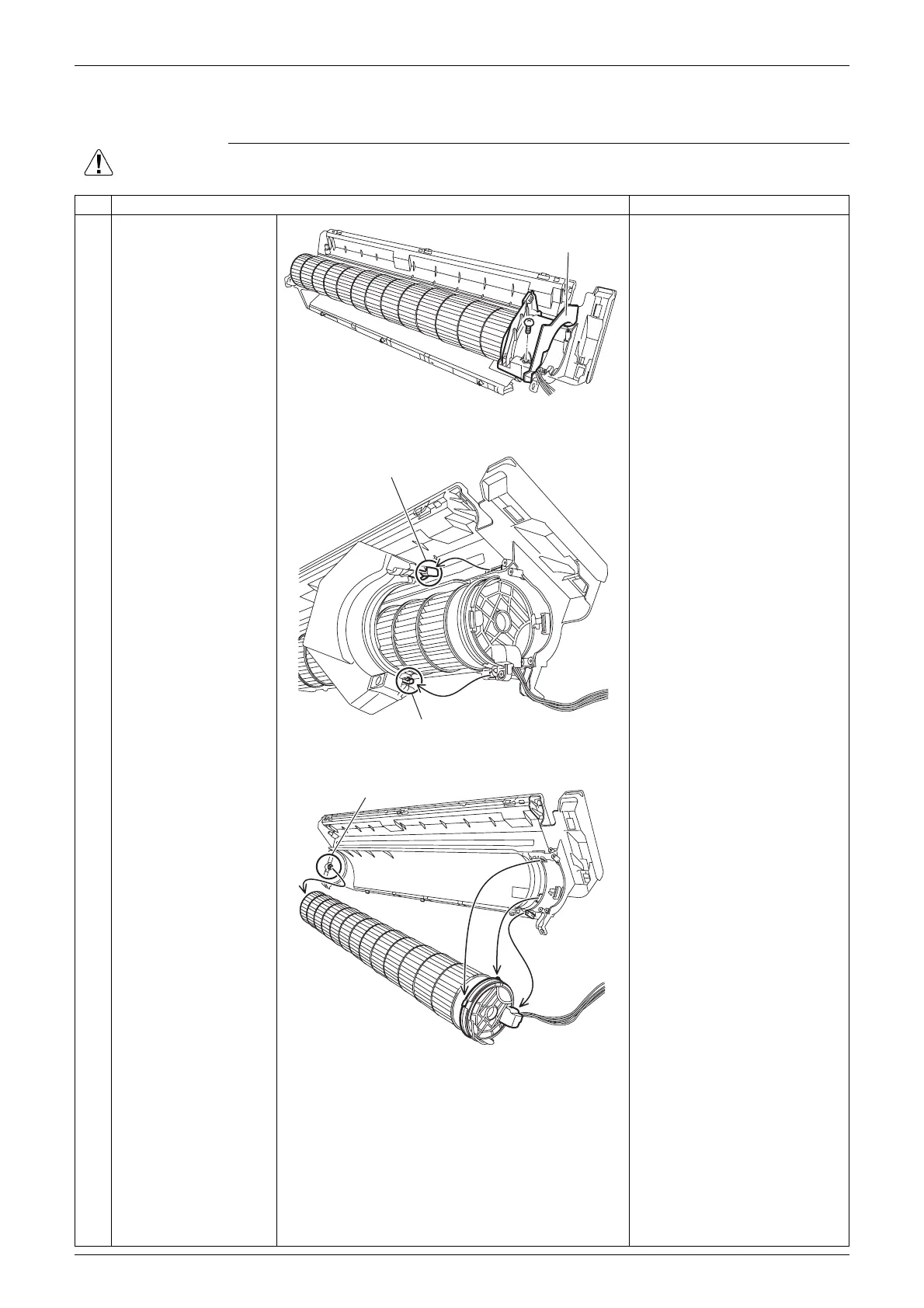

Si041652EB Fan Rotor / Fan Motor
Removal Procedure 23
10.Fan Rotor / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the screw of
the right side plate.
2 Unfasten the 2 hooks
and remove the right
side plate.
3 Remove the fan rotor/
fan motor.

The fan motor has 3
projections on the right side.

The fan rotor has a bushing
on the left side.
Right side plate
(R22947)
Hook
Hook
(R22948)
Bushing
(R23527)
