Indoor Heat Exchanger Si041652EB
22 Removal Procedure
5 Unfasten the 2 hooks
on the right side and lift
up the indoor heat
exchanger.

When reassembling the
indoor heat exchanger,
make sure that the 2 hooks
are securely fastened.
Step Procedure Points

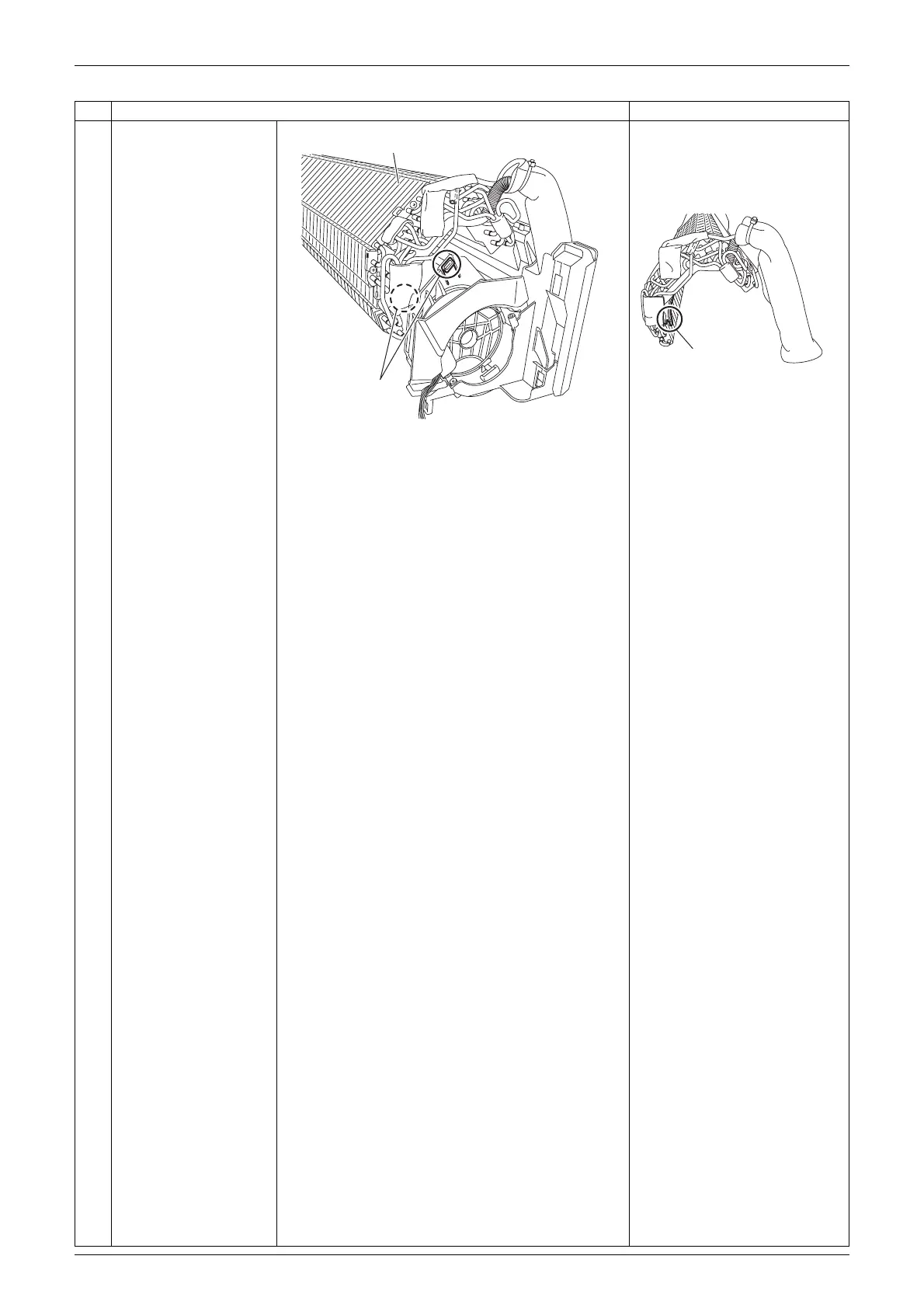

Hook
Indoor heat exchanger
(R22945)
Hook
(R22946)
