Daikin FTKC60QVMV - PCBs; Remove Control PCB; Remove Filter PCB

PCBs Si041652EB
10 Removal Procedure
6. PCBs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

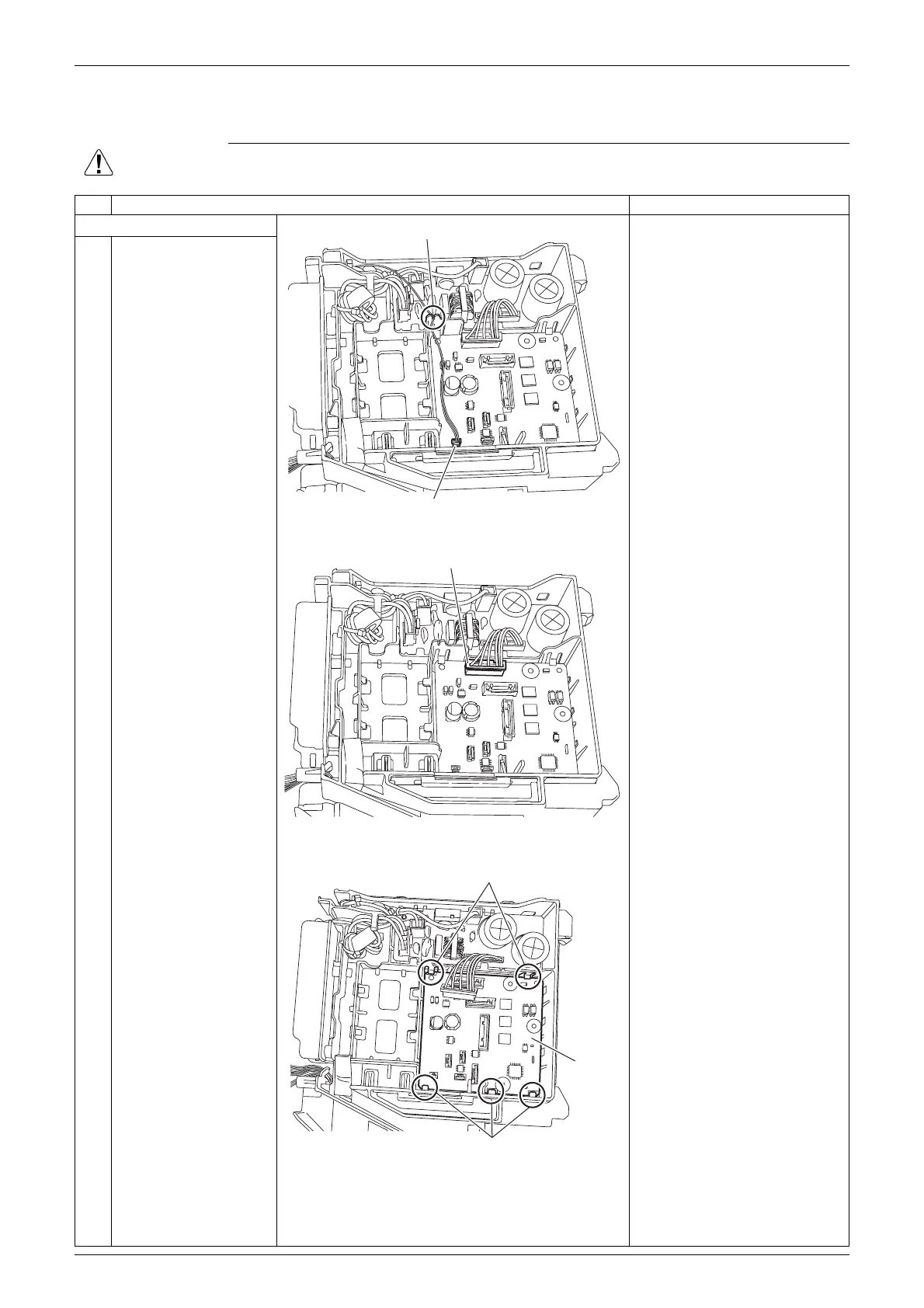

Step Procedure Points
1. Remove the control PCB. [S32]: indoor heat exchanger
thermistor

When reassembling, make
sure to insert the thermistor
harness back into the slit.
1
2
Remove the connector
[S32].
Release the harnesses
from the slit.
3 Remove the connector
[S900].
[S900]: filter PCB
4 Unfasten the 5 hooks
and remove the control
PCB.
Slit
[S32]
(R22907)
[S900]
(R24137)
Hook
Hook
Control
PCB
(R23522)
