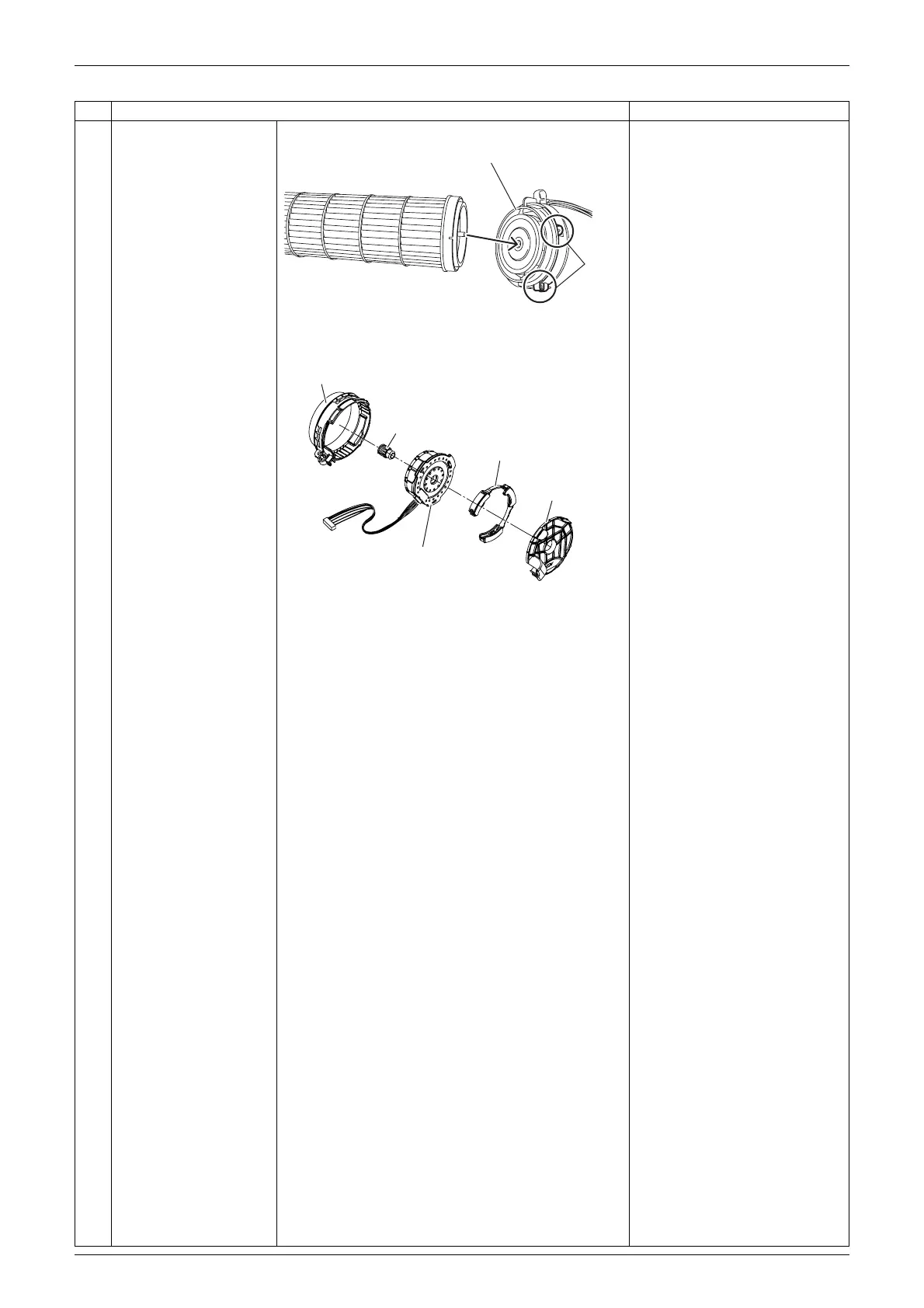

Fan Rotor / Fan Motor Si041652EB
24 Removal Procedure
4
5
Pull out and remove the
fan motor stator ASSY.
Unfasten the 2 hooks
and disassemble the
fan motor stator ASSY.
Step Procedure Points
Hook
Fan motor stator ASSY
(R23528)
Fan motor cover (body)
Bearing rubber
cushion
Fan motor stator
Rubber cushion
Fan motor
cover (cap)
(R21535)
