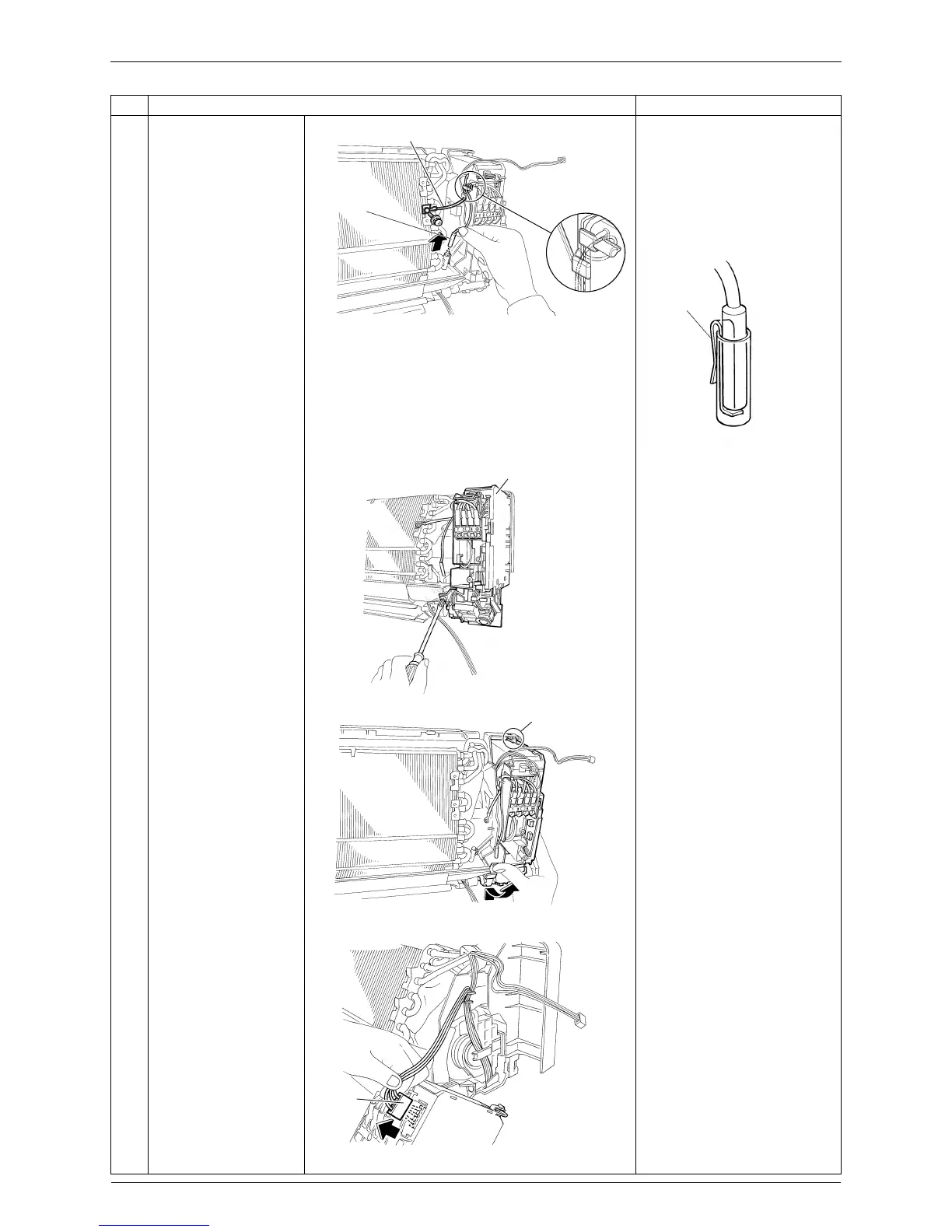

Electrical Box Si041251EC
8 Removal Procedure
6
7
Pull out the indoor heat
exchanger thermistor.
Remove the screw and
detach the earth /
ground wire.
When reassembling, if the
harness of the thermistor is
too long, wind it around the
hook.
Be careful not to lose the
clip for the thermistor.
8
Remove the screw of
the electrical box.
9
10
Lift up and pull the
electrical box.
Unfasten the hook on
top at the back by
pressing it from above.
There is a hook also at the
lower part of the back. When
reassembling the electrical
box, make sure that it is
securely fastened.
11
Disconnect the
connector [S1] and
remove the electrical
box.
[S1]: fan motor
Step Procedure Points
Earth / ground wire
Indoor heat
exchanger
thermistor
(R21411)
Clip
(R11234)
Electrical box
(R4346)
(R17204)
Hook
[S1]
(R4349)
To Next Page
