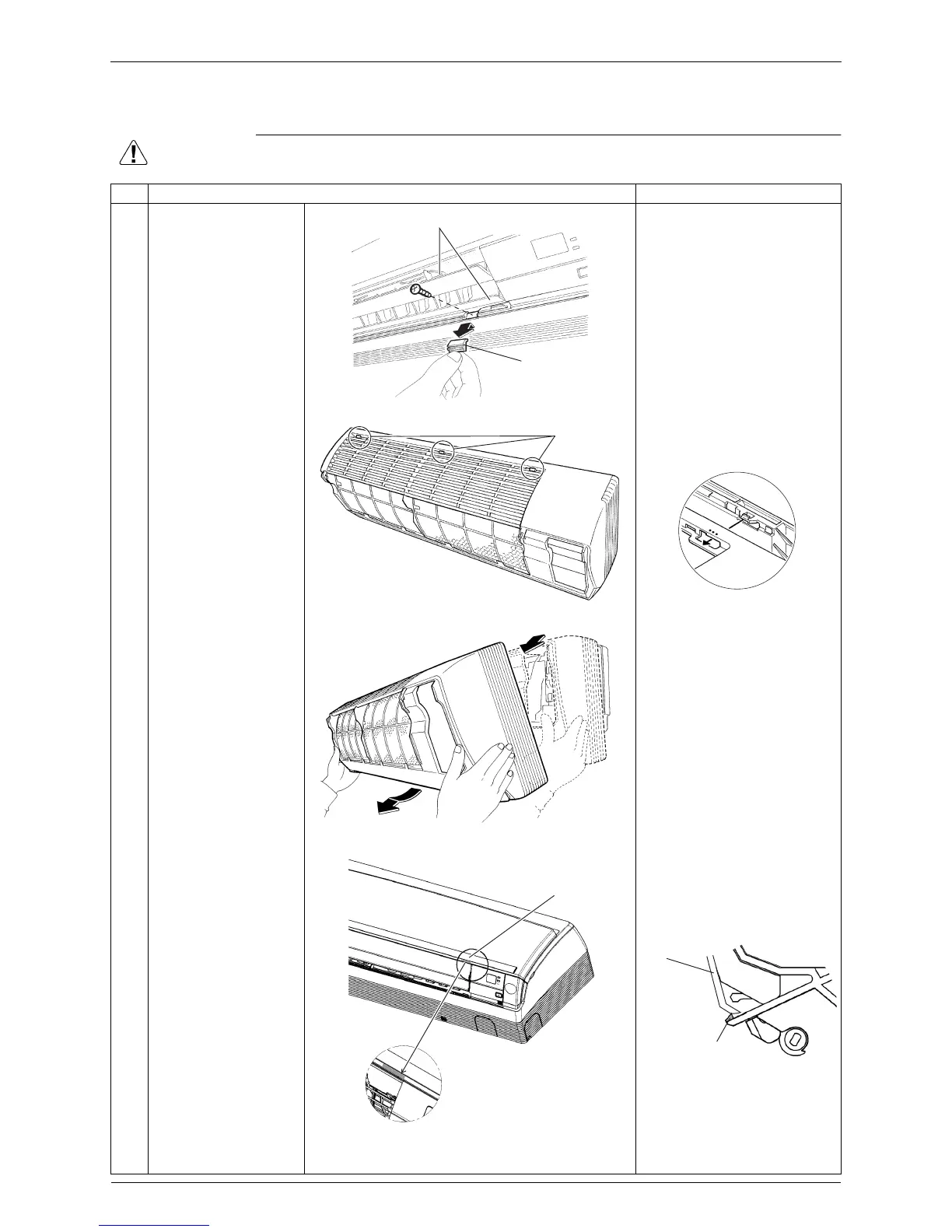

Front Grille Si041251EC
4 Removal Procedure
3. Front Grille
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
Remove the screw
covers and screws.
(right and left)
Open the horizontal blades
before removing the screw
covers and screws.
When reassembling the
indoor unit, drive the screws
with the horizontal blades
opened or removed.
2
Unfasten the 3 hooks
on the top of the front
grille.
The convex marks (...) on
the front panel indicate the
position of the hooks.
3
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.
When reassembling, make
sure that the 3 hooks are
fastened as they were.
When reassembling the
front grille, be sure not to get
it stuck on the spacer of the
drain pan.
(R17199)
Screw cover
Horizontal blade
Hook
(R16030)
(R12715)
(R4327)
Spacer
(R4565)
Front grille
Spacer
Section View
(R4590)
