Air Filters Si041251EC
2 Removal Procedure
1. Air Filters
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

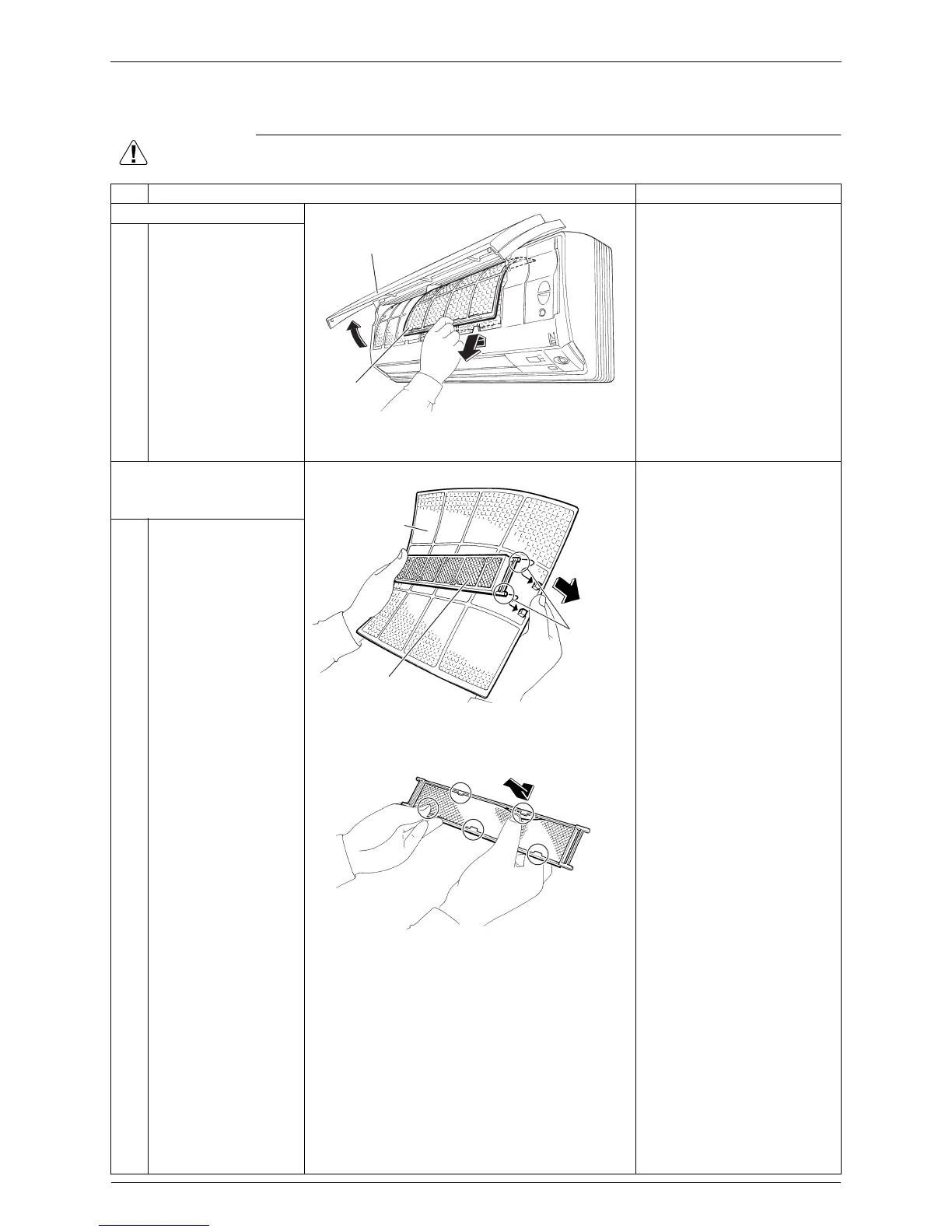

1. Remove the air filters.
The air filter is not marked
for difference between the
right and left sides.
Insert the air filter with the
“FRONT” mark faced up.
The air filter can be set
easily by inserting it along
the guides.
Be sure to insert the hooks
(at 2 lower positions) when
mounting the air filter.
1
2
Open the front panel.
Pull out the air filter
downward and remove
it.
2. Remove the Titanium
apatite photocatalytic air-
purifying filters.
The right and left filters are
interchangeable.
Some models have an air
purifying filter and a
photocatalytic deodorizing
filter instead of Titanium
apatite photocatalytic air-
purifying filters.
1
Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
by unfastening the
projections from the
back of the air filter
frame.
2
Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from its
frame.
(R17197)
Air filter
Front panel
(R17198)
Projection
Air filter
Titanium apatite
photocatalytic air-
purifying filter ASSY
(R13174)
To Next Page
