Daikin FTKD50BVMT - Page 153

Indoor Unit Si04-306
144 Removal Procedure

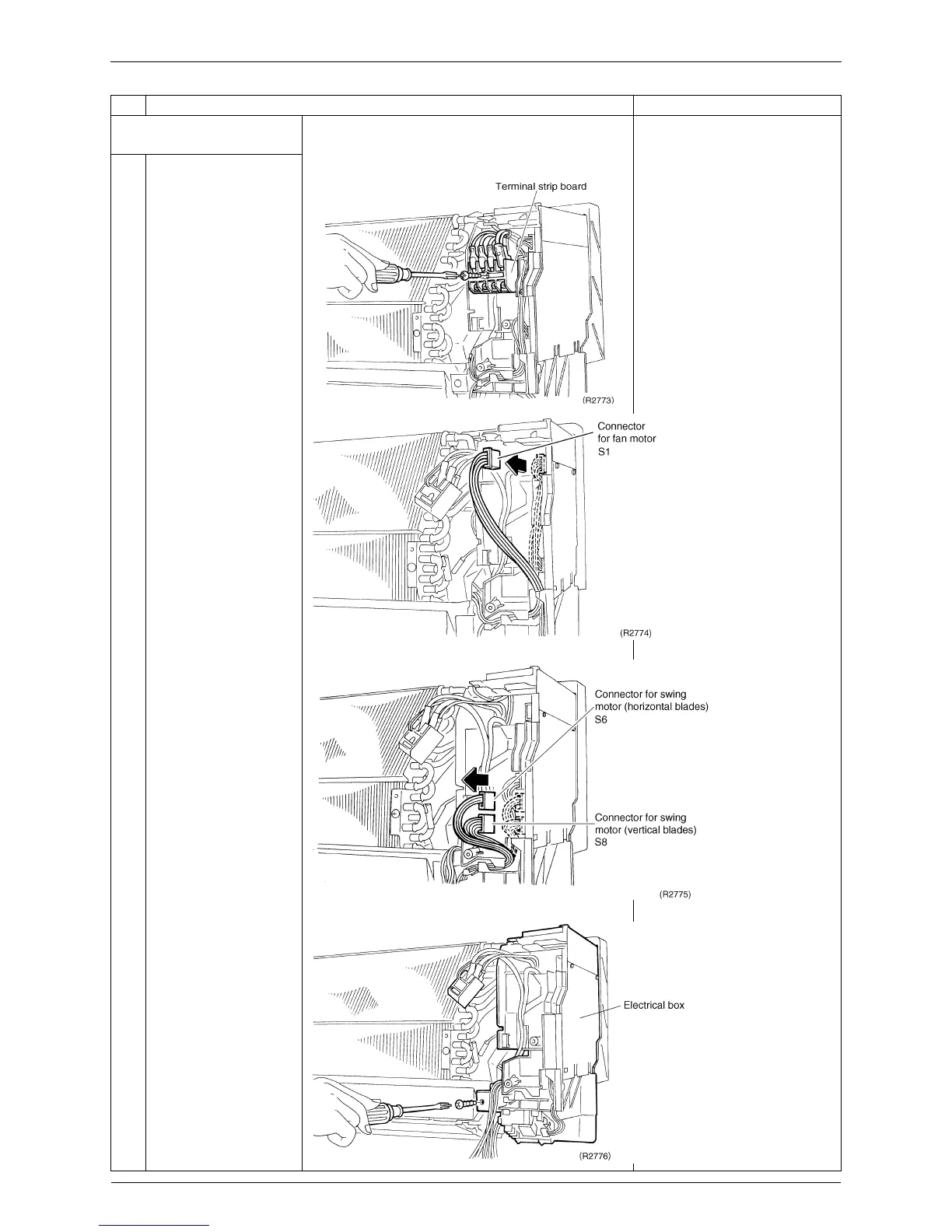

4. Remove the electrical
box.
1
Disconnect the four
connection wirings.
Loosen the screw and
remove the terminal
strip board.

You can remove the
electrical box without
detaching the terminal strip
board.

Screw: M4×25
2
Disconnect the
connectors for fan
motor (S1).
3
Disconnect the
connectors for swing
motor (S6, S8).
4
Loosen the fixing screw
of the electrical box.
Step
Procedure Points
