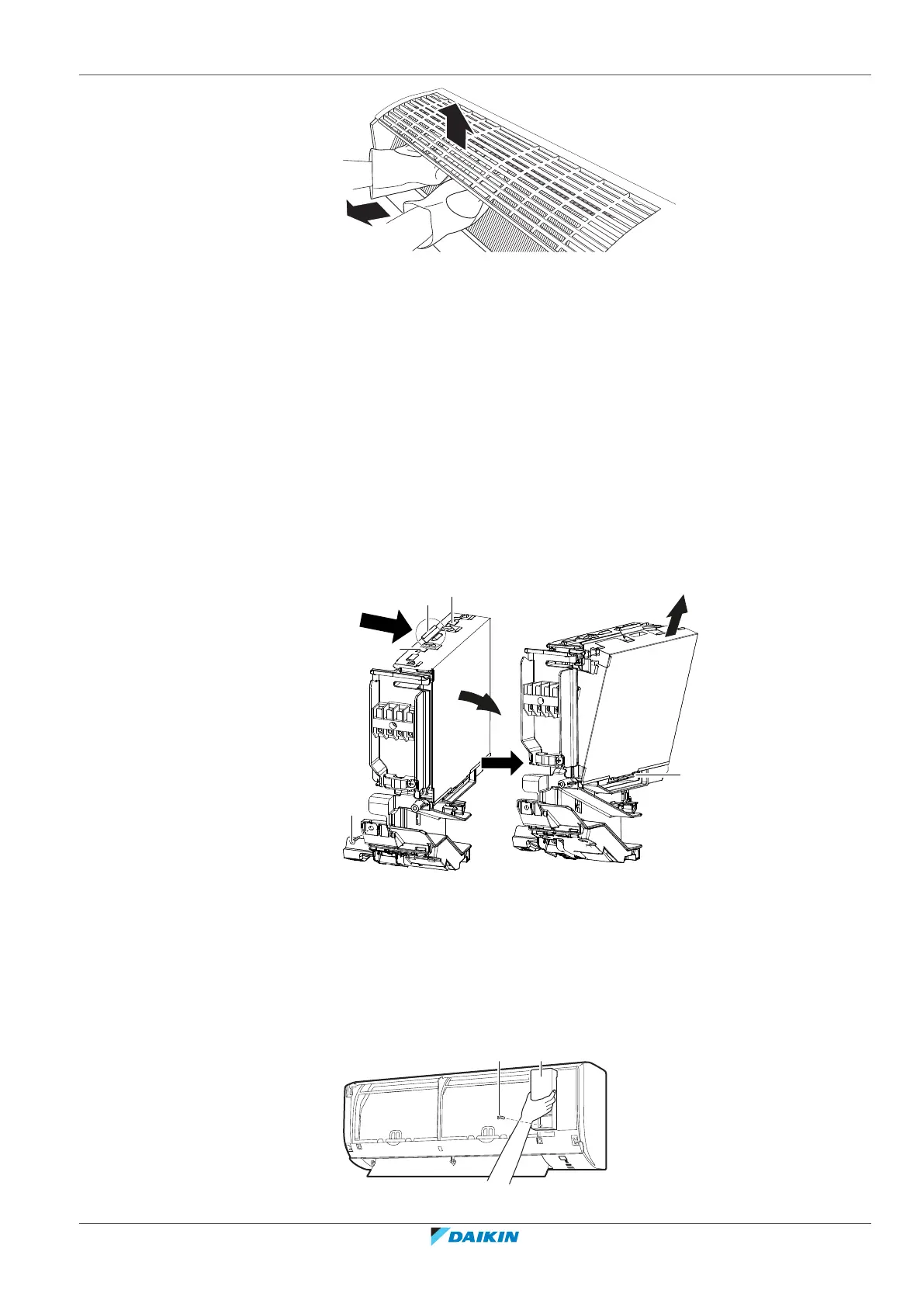

6.2.4 To re-install the front grille
1 Install the front grille and firmly engage the 3 upper hooks.
2 Install 2 screws back on the front grille.
3 Install the air filter and then mount the front panel.
6.2.5 To remove the electrical wiring box cover
1 Remove the front grille.
2 Remove 1 screw from the electrical wiring box.
3 Open the electrical wiring box cover by pulling the protruding part on the top
of the cover.
4 Unhook the tab on the bottom and remove the electrical wiring box cover.
a
a
c
b
a
1
3
2
a Tab
b Protruding part on the top of the cover
c Screw
6.2.6 To open the service cover
1 Remove 1 screw from the service cover.
2 Pull out the service cover horizontally away from the unit.
a b
a Service cover screw
