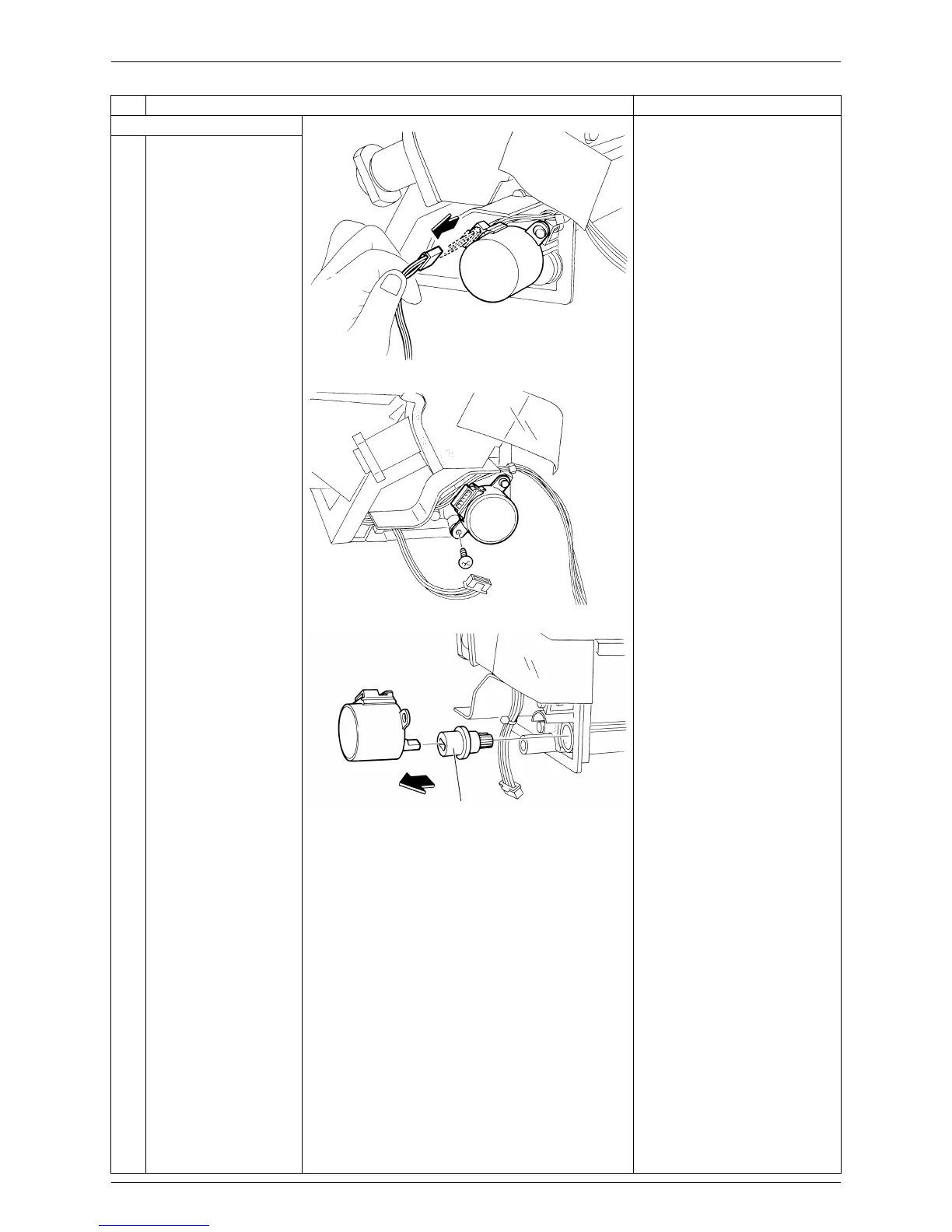

Si04-858 Removal of Horizontal Blade
Removal Procedure 15
2. Remove the swing motor.
The swing motor for
horizontal blade is on the left
side.
1
Pull out and remove the
swing motor connector.
2
Loosen the screw.
3
Pull toward left and
remove the swing
motor.
The axis has a keyhole.
Step
Procedure Points
(R5040)
(R5041)
axis
(R5042)
