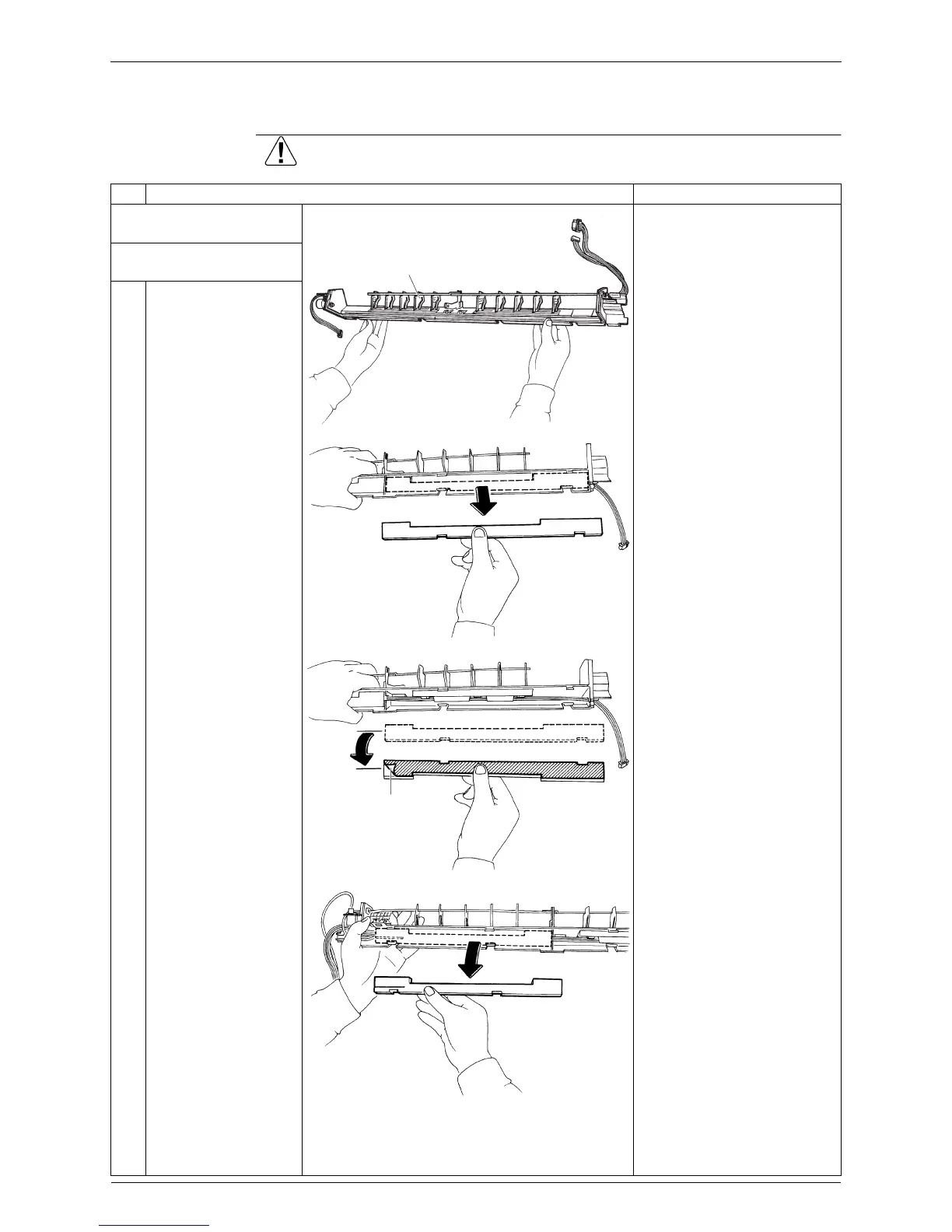

Removal of Vertical Blades and Swing Motor Si04-858
20 Removal Procedure
8. Removal of Vertical Blades and Swing Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

Remove the assembly of
the outlet grille.
1. Remove the vertical
blades.
1
Release the 4 hooks
and remove the thermal
insulation.
2
Release the 4 hooks
and remove the thermal
insulation.
Vertical blades
(R3830)
(R3831)
Moisture condensation
proof stuff
(R3832)
(R3833)
