Daikin FTXG25JV1BW Service Manual

SiBE041012_A Field Settings
Trial Operation and Field Settings 222
4. Field Settings
4.1 When 2 Units are Installed in 1 Room
When 2 indoor units are installed in 1 room, 1 of the 2 pairs of indoor unit and wireless remote
controller can be set for different address.
Both the indoor unit PCB and the wireless remote controller need alteration.

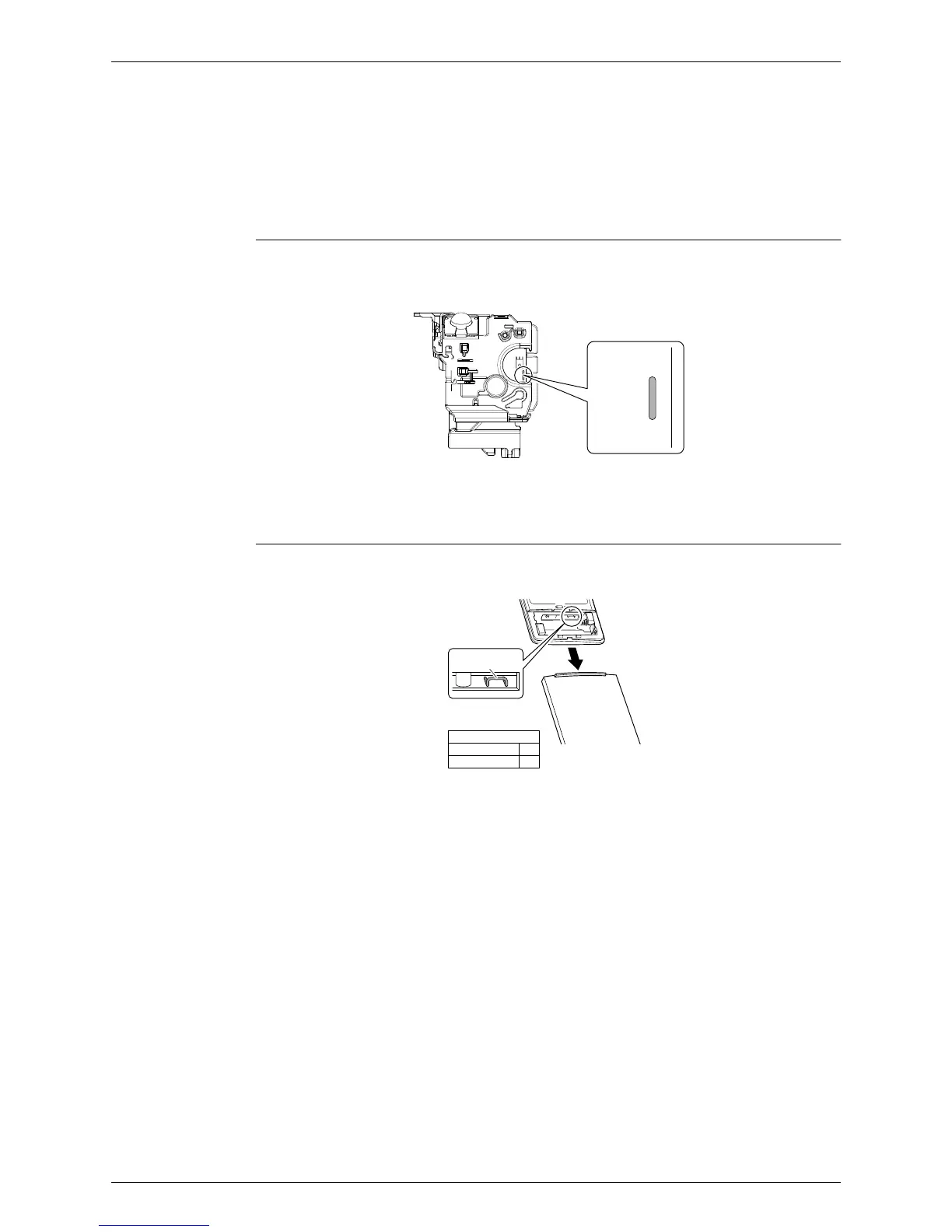

Indoor Unit PCB 1) Remove the front panel and front grille. (4 screws)
2) Cut the address setting jumper (JA) on the signal receiver / display PCB.
Wireless Remote
Controller
(1) Remove the cover and take it off.
(2) Cut the address setting jumper.
JA
(Bottom of electrical box)
ADDRESS : JA EXIST : 1 CUT : 2
(R12036)
1
2
EXIST
CUT
Address
Jumper
(R14631)
