Daikin FTXN25KEV1B - Outdoor Unit

Piping Diagrams SiBE041102_A
144 Appendix
1.2 Outdoor Unit
RXN25KEV1B
RXN35KEV1B

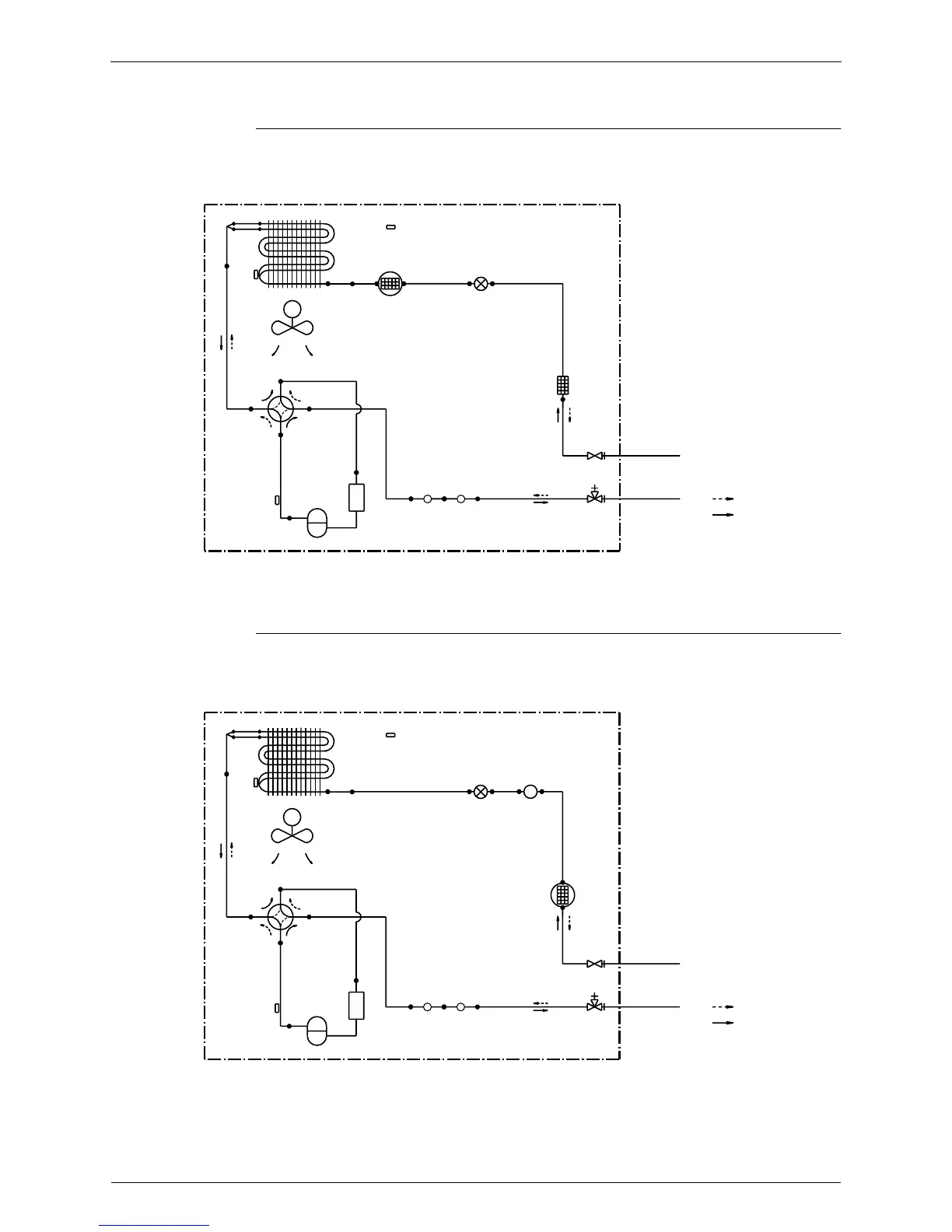

OUTDOOR UNIT
HEAT EXCHANGER
7.0CuT
7.0CuT
7.0CuT
6.4CuT 7.0CuT 6.4CuT
M
6.4CuT
PROPELLER FAN
9.5CuT
9.5CuT
STRAINER
4.8CuT
FIELD PIPING
(6.4CuT)
9.5CuT
6.4CuT
REFRIGERANT FLOW
MUFFLER MUFFLER
9.5CuT
FIELD PIPING
COOLING
COMPRESSOR
(9.5CuT)
HEATING
ACCUMULATOR
OUTDOOR TEMPERATURE
THERMISTOR
HEAT EXCHANGER THERMISTOR
FOUR WAY
VALVE
ON:HEATING
DISCHARGE PIPE
THERMISTOR
GAS STOP
VALVE
LIQUID STOP
VALVE
MOTOR OPERATED
VALVE
MUFFLER
WITH
FILTER
FAN
MOTOR
3D066213A
OUTDOOR UNIT
HEAT EXCHANGER
7.0CuT
7.0CuT
7.0CuT
MUFFLER
7.0CuT 6.4CuT
M
6.4CuT
PROPELLER FAN
9.5CuT
9.5CuT
4.8CuT
FIELD PIPING
(6.4CuT)
9.5CuT
6.4CuT
REFRIGERANT FLOW
MUFFLER MUFFLER
9.5CuT
FIELD PIPING
COOLING
COMPRESSOR
(9.5CuT)
HEATING
ACCUMULATOR
OUTDOOR TEMPERATURE
THERMISTOR
HEAT EXCHANGER THERMISTOR
MOTOR OPERATED
VALVE
MUFFLER
WITH
FILTER
FOUR WAY
VALVE
ON:HEATING
DISCHARGE PIPE
THERMISTOR
FAN
MOTOR
GAS STOP
VALVE
LIQUID STOP
VALVE
3D071264
