COOL/HEAT
(GREEN/RED)
Operation
GREEN
Cool mode
RED
Heat mode
RED
Auto mode in Heating operation
GREEN
Auto mode in Cooling operation
Timer on
Sleep mode on
GREEN
Fan mode on
GREEN
Dry mode on
RED
Defrost operation
GREEN
Unit error
ON
Blinking
IR Signal Receiver
When an infrared remote control operating signal has been
transmitted, the signal receiver on the indoor unit will respond
as below to confi rm acceptance of the signal transmission.

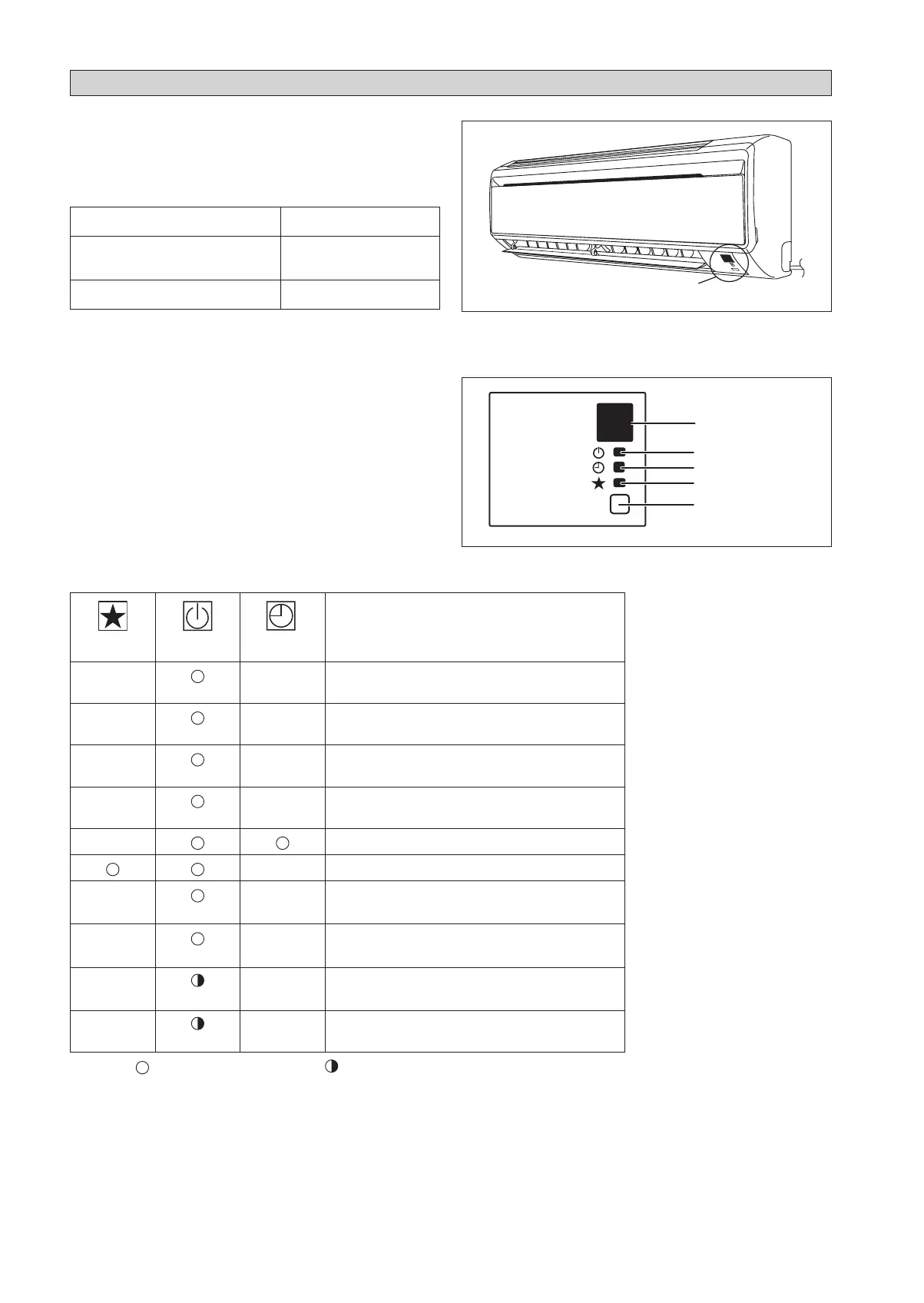

LED Indicator Lights for Cooling Unit/Heat Pump
Unit
IR Receiver
Cooling Unit/Heat Pump Unit
The table shows the LED indicator lights for the air conditioner
unit under normal operation and fault conditions. The LED
indicator lights are located at the side of the air conditioner
unit.
The heat pump units are equipped with an “auto” mode
sensor whereby it will provide reasonable room temperature
by switching automatically to either “cool” or “heat” mode
according to the temperature set by the user.
ON/OFF
Cool/Heat
Timer
Sleep
ON/OFF switch
IR Receiver
INDICATOR LIGHTS
ON to OFF 1 Long Beep
OFF to ON
Pump down / Cool force on
2 Short Beep
Others 1 Short Beep
LED Indicator Lights: Normal Operation And Fault Conditions For Cooling/Heat Pump Unit
