SiENBE12-713 Instruction
System Configuration 115
"
Outdoor Unit
"
Indoor Unit
"

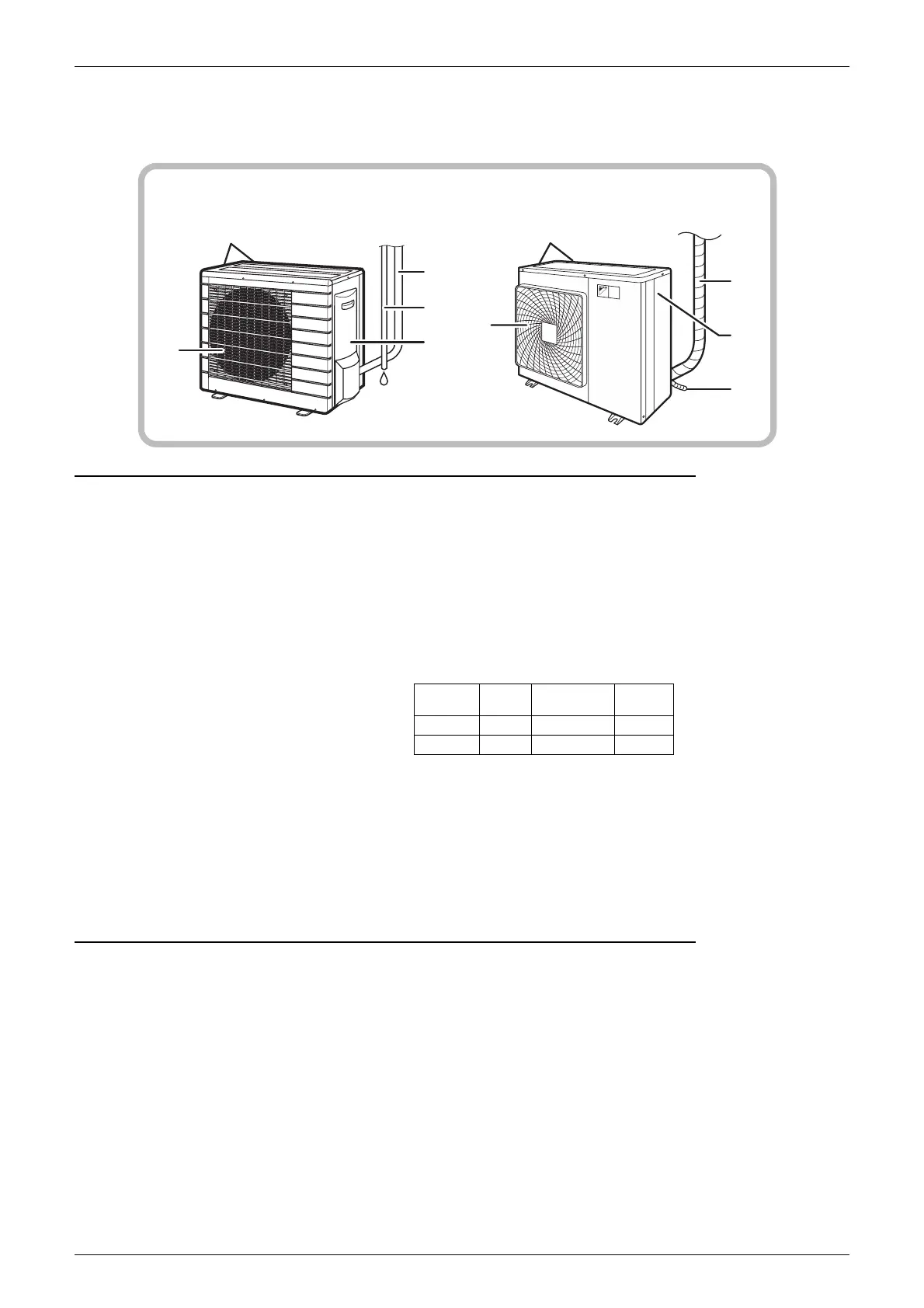

Outdoor Unit
Appearance of the outdoor unit may differ from some models.
1. Air filter
2. Titanium Apatite Photocatalytic Air-
Purifying Filter
3. Air inlet
4. Front panel
5. Panel tab
6. INTELLIGENT EYE sensor:
• It detects the movements of people and
automatically switches between normal
operation and energy saving operation.
7. Room temperature sensor:
• It senses the air temperature around the
unit.
8. Display
9. Air outlet
10. Flaps (horizontal blades)
11. Louvers (vertical blades):
• The louvers are inside of the air outlet.
12. Operation lamp (green)
13. TIMER lamp (yellow)
14. HOME LEAVE lamp (red)
• Lights up when you use HOME LEAVE
Operation.
15. Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• This switch is useful when the remote
control is missing.
• the operation mode refers to the following
table.
16. Signal receiver
• It receives signals from the remote control.
• When the unit receives a signal, you will hear
a short beep.
• Operation start .............beep-beep
• Settings changed ............beep
• Operation stop ..............beeeeep
17. Air inlet:
(Back and side)
18. Air outlet
19. Refrigirant piping and inter-unit cable
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
19
20
21
18
17
19
20
21
17
18
50/60 class 71 class
Mode Temperature
setting
Air flow
rate
FTKS COOL 22°C AUTO
FTXS AUTO 25°C AUTO
