Daikin FTXS20D3VMW - Page 127

Instruction SiENBE12-713
116 System Configuration

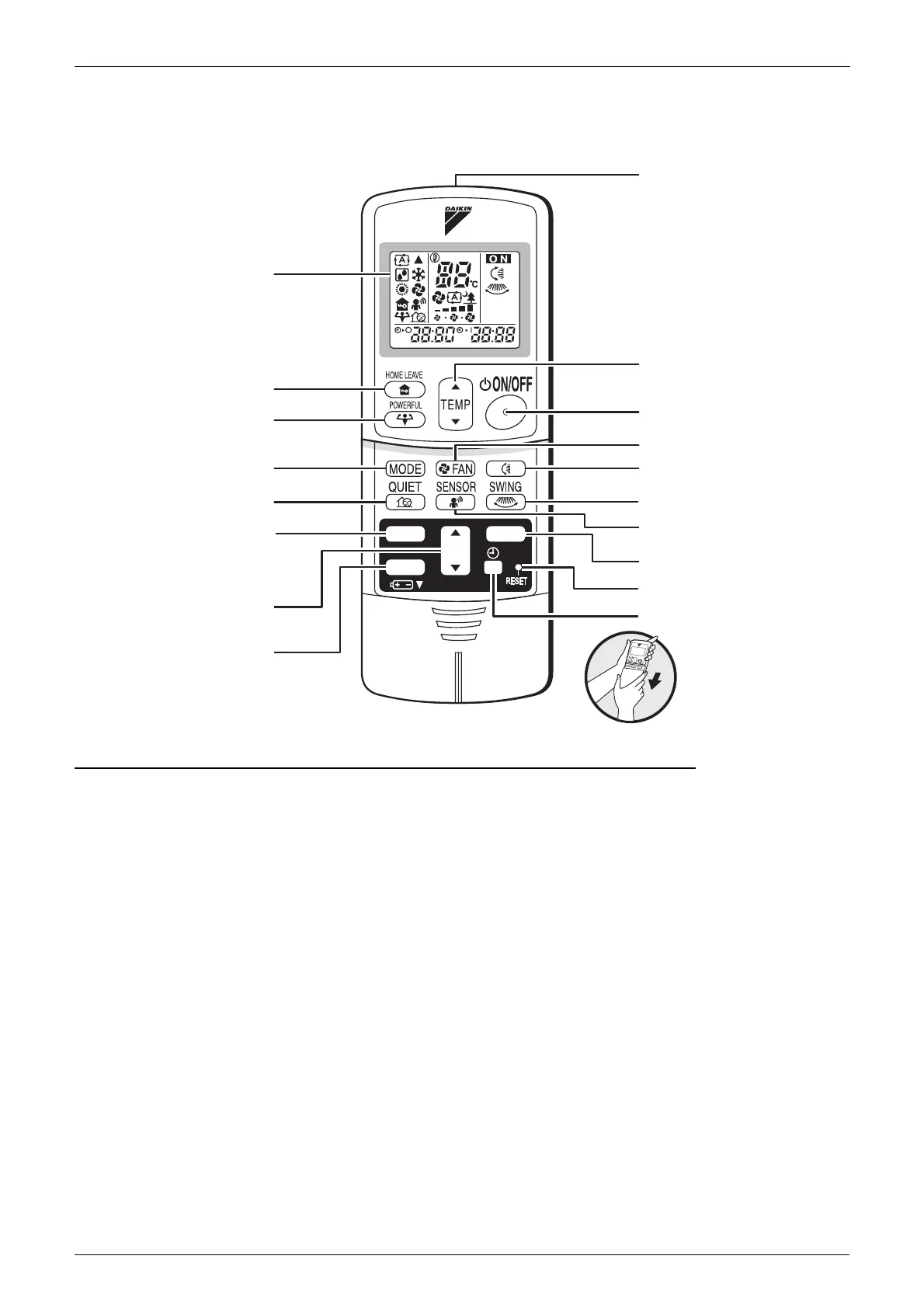

" Remote control
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation)
3. HOME LEAVE button:
HOME LEAVE operation
4. POWERFUL button:
POWERFUL operation
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8. QUIET button: OUTDOOR UNIT QUIET
operation
9. FAN setting button:
• It selects the air flow rate setting.
10. SENSOR button: INTELLIGENT EYE
operation
11. SWING button
• Flap (Horizontal blade)
12. SWING button
• Louver (Vertical blades)
13. ON TIMER button
14. OFF TIMER button
15. TIMER Setting button:
• It changes the time setting.
16. TIMER CANCEL button:
• It cancels the timer setting.
17. CLOCK button
18. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
TIMER
ON CANCEL
OFF
1
2
5
6
9
11
ARC433B70, 71
3
4
7
8
10
12
16
18
17
15
14
13
