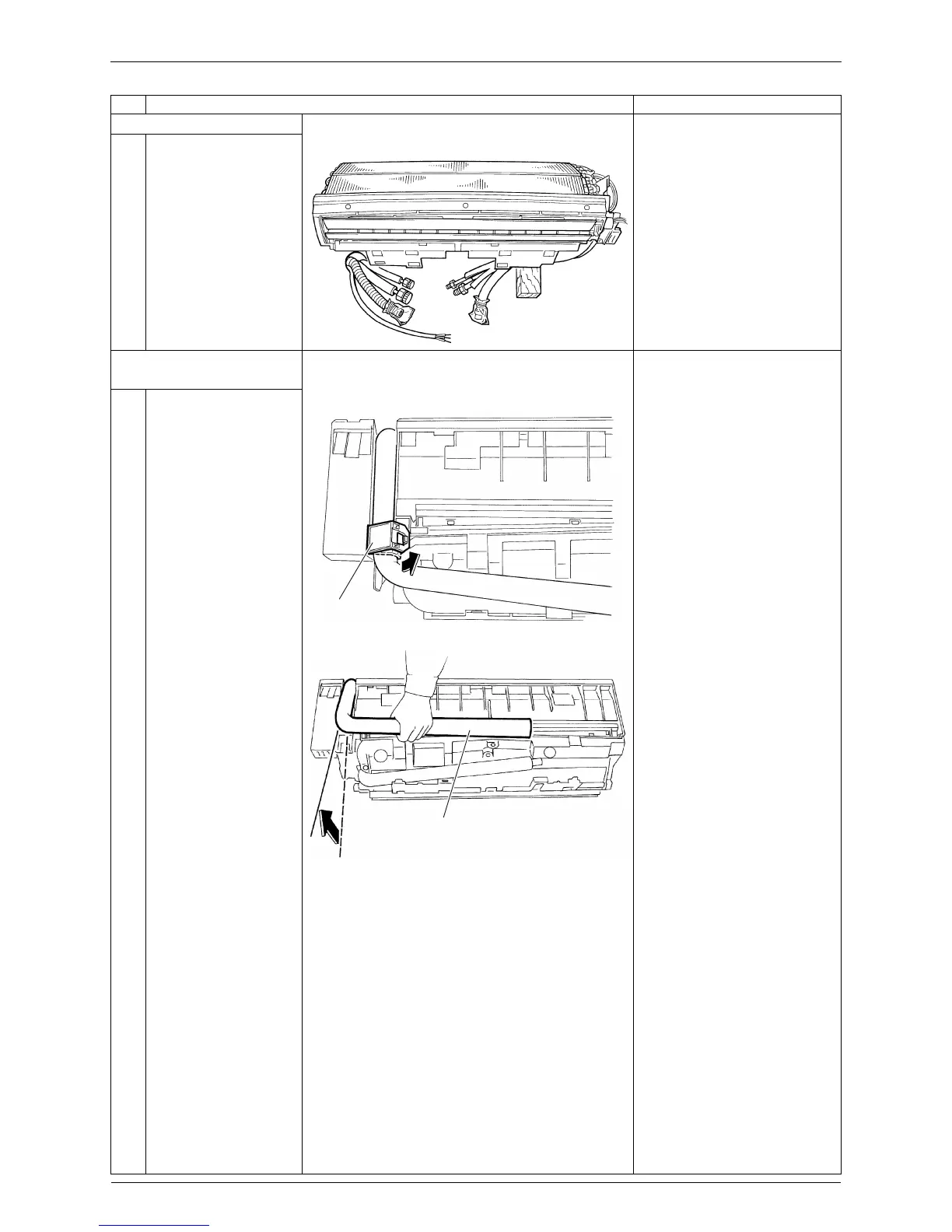

Daikin FTXS50KVM - Remove Indoor Unit from Installation Plate; Remove Indoor Heat Exchanger

Removal of Indoor Heat Exchanger Si041142
16 Removal Procedure
2. Remove the indoor unit.
1
Detach the indoor unit
from the installation
plate.
3. Remove the indoor heat
exchanger.
1
Unfasten the hook of
the piping fixture on the
back of the indoor unit.
2
Slightly widen the
auxiliary piping.
Step Procedure Points
(R2797)
Piping fixture
(R2798)
Auxiliary piping
(R2799)
