5
Outdoor Unit
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
It senses the air temperature around the unit.
7. Display
8. Air outlet
9. Flaps (horizontal blades):
(page 12.)
10. Louvres (vertical blades):
The louvers are inside of the air outlet.
(page 12.)
11. Indoor Unit ON/OFF switch:
Push this switch once to start operation.
Push once again to stop it.
This switch is useful when the remote controller
is missing.
Pressing the switch in an emergency allows
you to select cooling or heating. (page 11.)
The operation mode refers to the following
table.
12. Operation lamp (green)
13. TIMER lamp (yellow):
(page 14.)
14. Signal receiver:
It receives signals from the remote controller.
When the unit receives a signal, you will hear a
short beep.
Operation start .............beep-beep
Settings changed..........beep
Operation stop ..............beeeeep

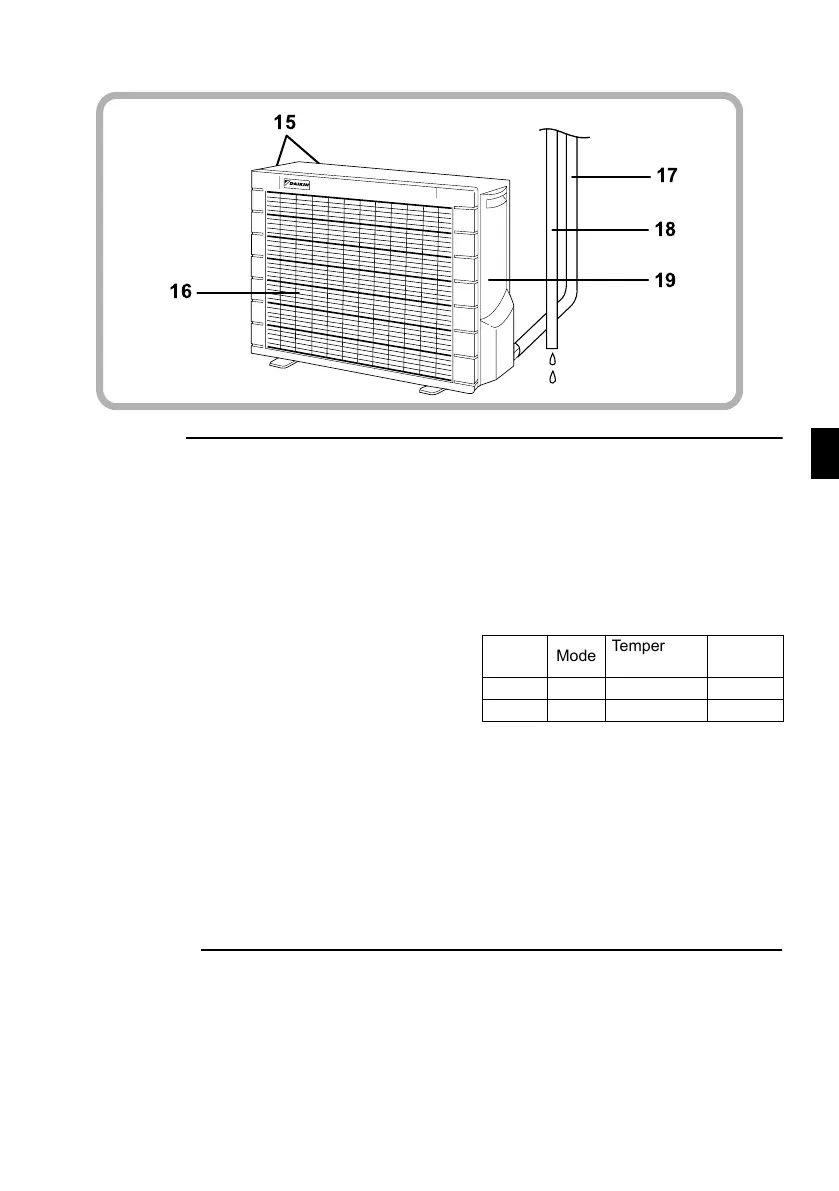

Outdoor Unit
15. Air inlet:
(Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
It is inside of this cover.
17
18
19
16
15
Mode
Temperature
setting
Air flow
rate
FT(Y)N COOL
22°C
AUTO
FTYN HEAT
26°C
AUTO
01_EN_3P147100-4H.fm Page 5 Thursday, October 27, 2005 10:12 AM
