Daikin FTYN25GXV1B - Outdoor Unit; Removal of Panels and Fan Motor

Outdoor Unit SiBE01-829
84 Removal Procedure
2. Outdoor Unit
2.1 Removal of Panels and Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Features

Take care not to cut your
finger by the fins of the heat
exchanger.


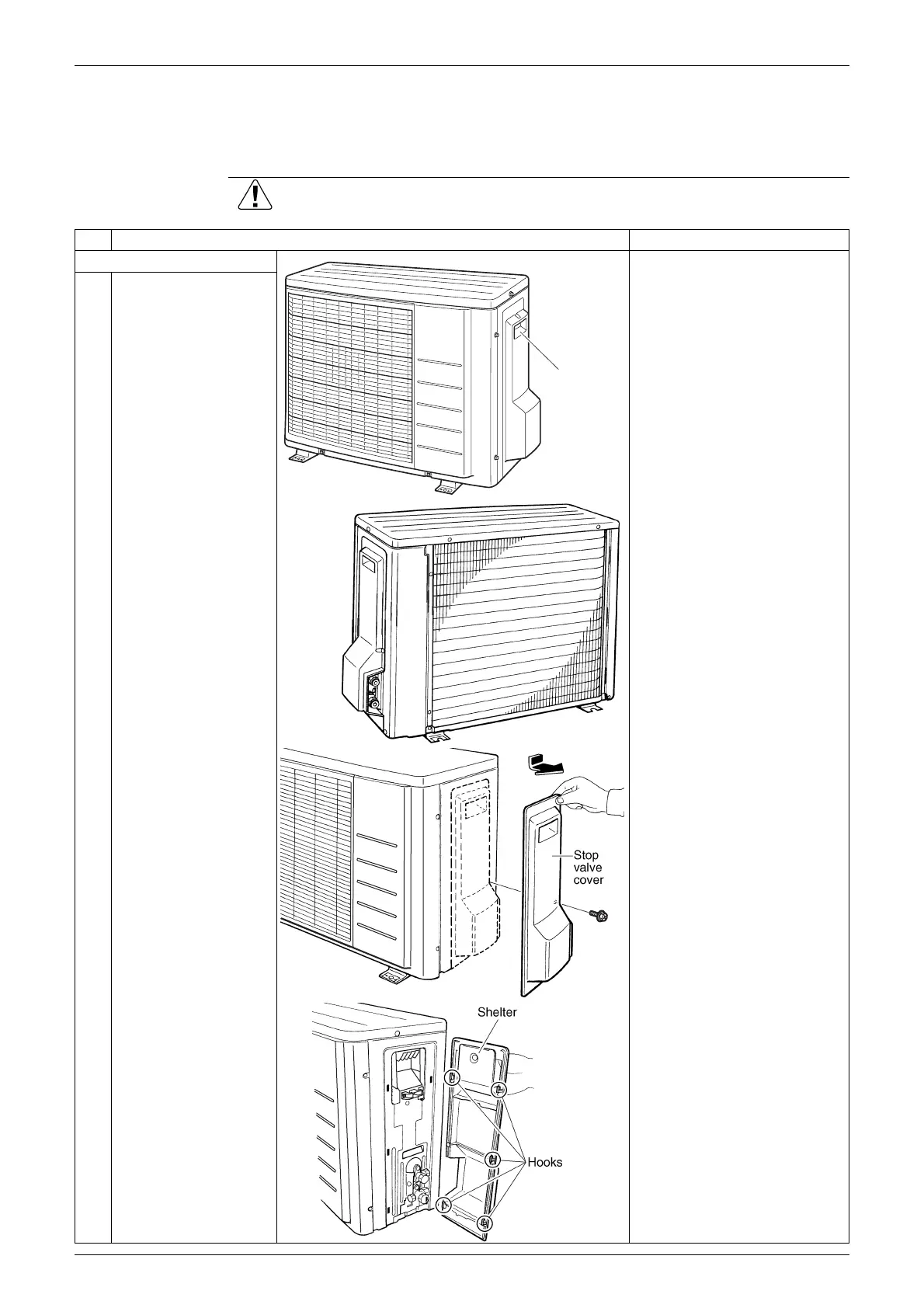

The stop valve cover is
united with the shelter.

When reassembling, make
sure to fit the 5 hooks.
1
Loosen the screw of the
stop valve cover.
Pull down the stop
valve cover and remove
it.
DAIKIN
INVERTER
(R8529)
Handle
(R8528)
(R7188)
(R7189)
