■English 8
4.
Wiring.
, install as described in the installation manual supplied with the Multi outdoor unit.
1) Strip wire ends (15mm).
2) Match wire colours with terminal numbers on indoor and outdoor unit’s terminal blocks and firmly screw wires to the corre-
sponding terminals.
3) Connect the earth wires to the corresponding terminals.
4) Pull wires to make sure that they are securely latched up, then retain wires with wire retainer.
5)
In case of connecting to an adapter system. Run the remote control cable and attach the S21. (Refer to 5. When connecting to
an HA system.)
6) Shape the wires so that the service lid fits securely, then close service lid.
WARNING
1) Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause overheating, electrical
shock, or fire.
2) Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc., from the
terminal block.) Doing so may cause electric shock or fire.
3) Do not connect the power wire to the indoor unit. Doing so may cause electric shock or fire.
5.
When connecting to an HA system.
1) Remove the front grille. (3 screws)
2) Remove the electrical wiring box. (1 screw)
3) Remove the metal plate electrical wiring cover. (4 tabs)
4) Attach the connection cord to the S21 connector and pull the harness out through the notched part in the figure.
5) Replace the electrical wiring cover as it was, and pull the harness around, as shown in the figure.

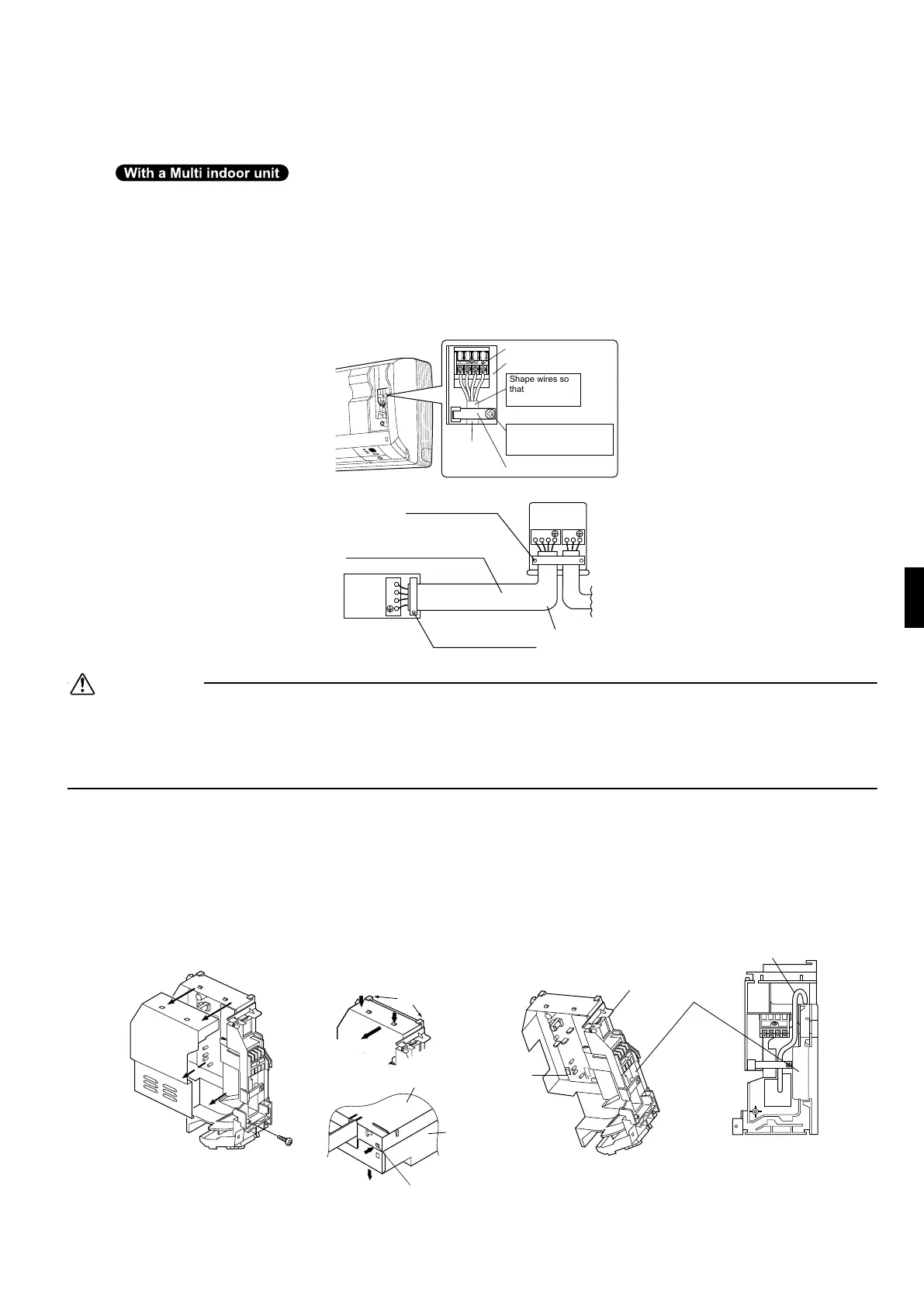

With a Multi indoor unit
Shape wires so
that the service
lid will fit securely.
Terminal block
Electrical component box
Wire retainer
Firmly secure wire retainer
so that wires sustain no
external stress.
Use the
specified
wire type.
1
2
3
123 LN
When wire length exceeds
10m, use 2.0mm diameter wires.
H05RN
Firmly fix the wires with
the terminal screws.
Outdoor unit
Indoor
unit
Firmly fix the wires with
the terminal screws.
Screw
HA cord
HA connector
(S21)
Ta b
Ta b
Push
Slide
Push
Metal plate
electrical cover
Ta b
Push
Main body
Notched part
4)
5) Replace the electrical
wiring cover as it was,
and pull the harness
around, as shown
in the figure.
Attach the connection cord to
the S21 connector and pull the
harness out through the
notched part in the figure.
3)
Remove the metal
plate electrical
wiring cover.
01_EN_3P190114-1D.fm Page 8 Monday, August 23, 2010 3:35 PM
