5 ■English
Indoor Unit Installation
1.
Installing the mounting plate.
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring
points on the wall.
2) Secure the mounting plate to the wall with screws.

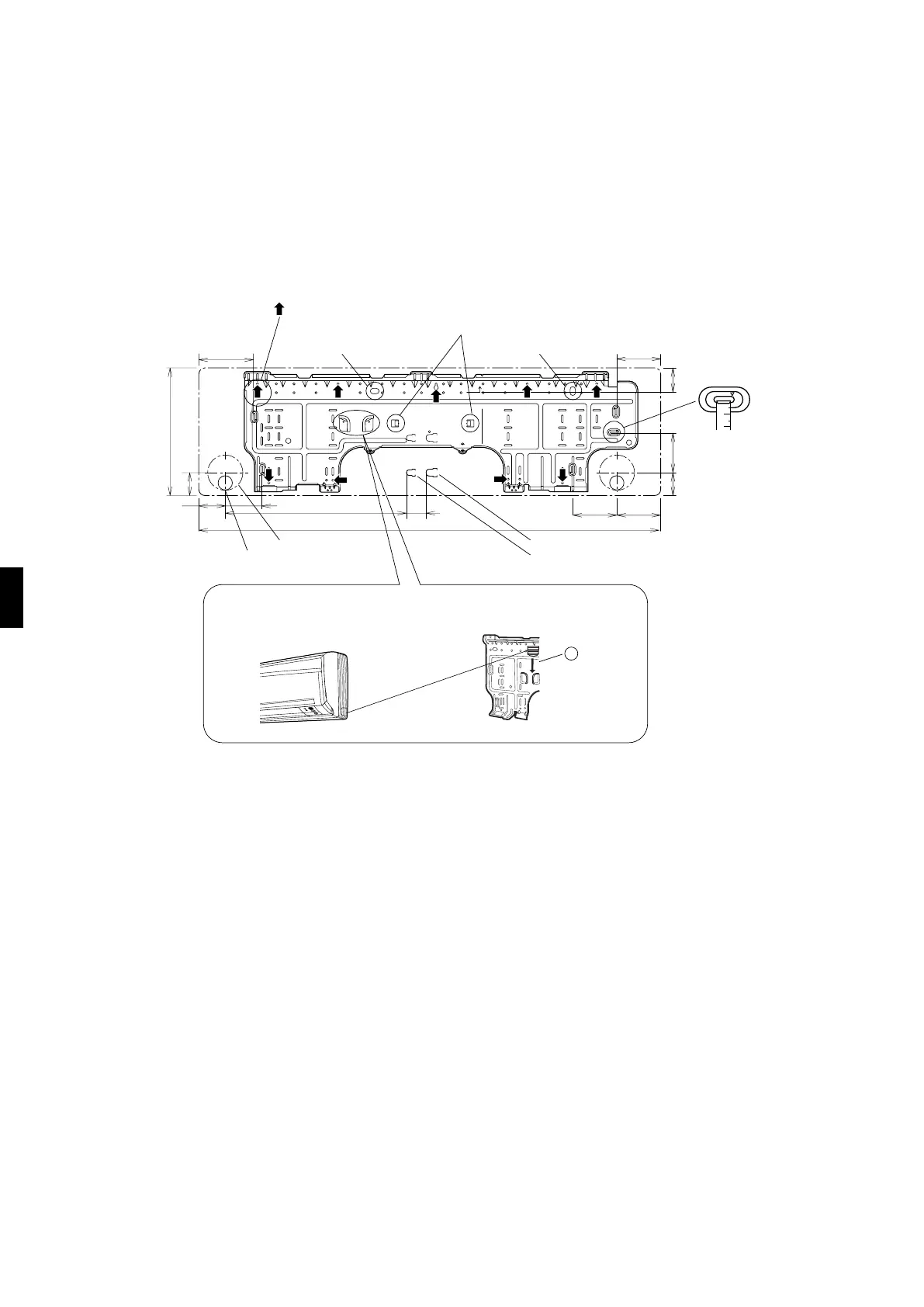

Recommended mounting plate retention spots and Dimensions
125
60
83
413.5 44.5
290
52
1050
99.5
52 90 55
100
100
Through-the-wall
hole φ80mm
Drain hose position
φ80
φ80
Recommended mounting plate retention
spots (9 spots in all)
(Bolt size: M10) (Bolt size: M10)
Place a leveler on raised tab.
Use tape
measure
as shown.
Position the
end of tape
measure at ∇ .
Gas pipe end
Liquid pipe end
* The removed pipe port cover can be
kept in the mounting plate pocket.
Removed pipe
port cover
A
Mounting
plate
01_EN_3P190114-1D.fm Page 5 Monday, August 23, 2010 3:35 PM
