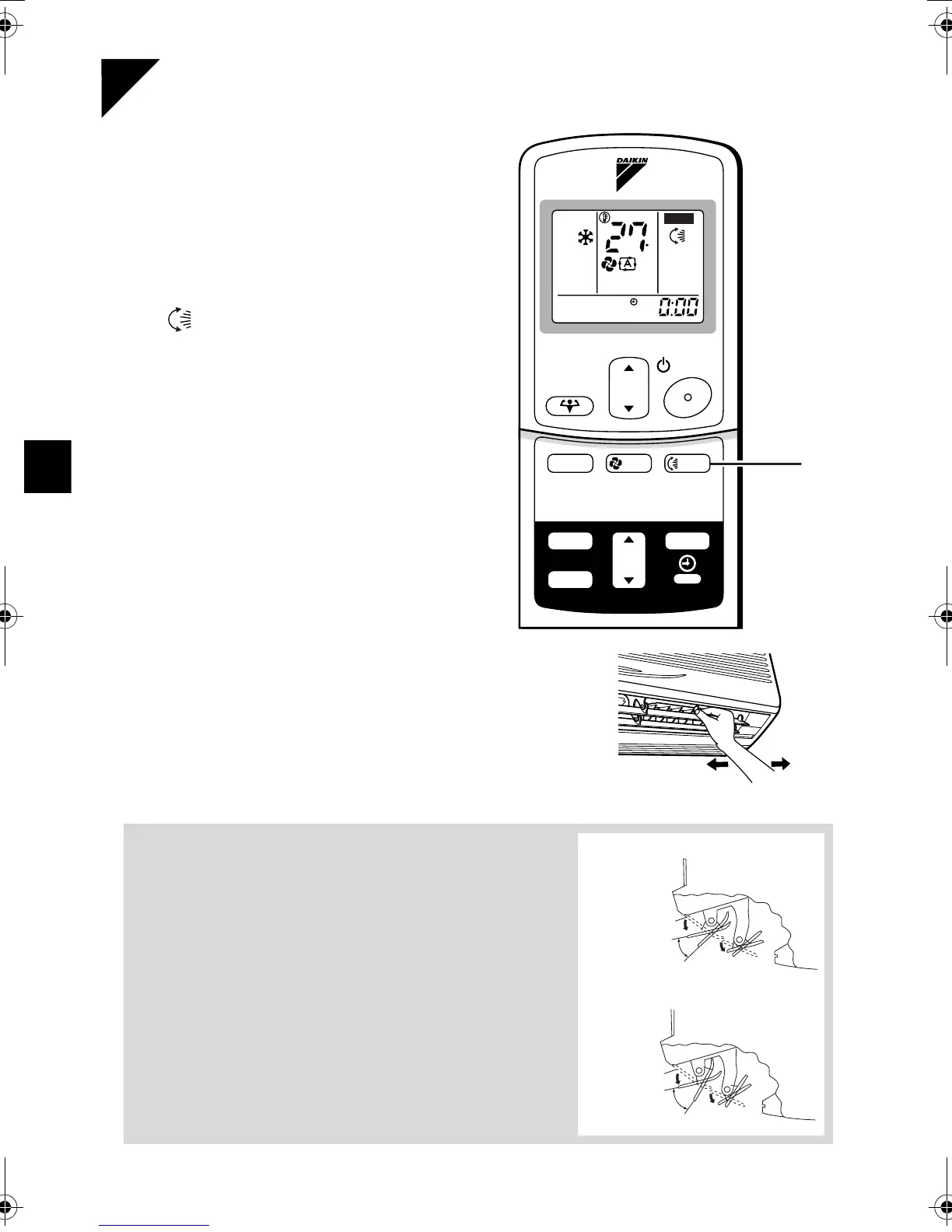

Adjusting the Air Flow Direction
You can adjust the air flow direction to increase your com-
fort.
■
To adjust the horizontal
blade (flap)
1. Press “SWING button”.
The display will light up and the flap will
begin to swing.
2. When the flap have reached the
desired position, press “SWING”
button once more.
The display will go blank.
The flap will stop moving.
■
To adjust the vertical
blades (louvres)
Hold the knob and move the louvres.
(You will find a knob on the left-side and the right-side blades.)
Notes on flaps and louvres angles
• When “
SWING button
” is selected, the flaps swinging
range depends on the operation mode.
(See the figure.
)
■
■■
■
ATTENTION
• Always use a remote controller to adjust the flaps angle. If
you attempt to move it forcibly with hand when it is swinging,
the mechanism may be broken.
• Be careful when adjusting the louvres. Inside the air outlet, a
fan is rotating at a high speed.
C
TEMP
ON/OFF
POWERFUL
MODE
TIMER
FAN
ON CANCEL
OFF
ON
1, 2
SWING
STOP
COOL
approx. 10˚~40˚
DRY
approx. 5˚~35˚
In COOL or DRY mode
STOP
HEAT
approx. 15˚~55˚
In HEAT or FAN mode
FAN
approx. 5˚~55˚
