5 Unit installation
Installation manual
6
CVXM20A + FVXM25~50A
Split system air conditioners
3P477070-2M – 2021.09
Floor-standing installation
(mm)
627.5
750
006
300
200
285
115
159
238
689
a
a
a
a
159
a
a
75
06
75
45
Ø65
Ø65
45
b
c
75
75
54
f
e
A B
C
54
45
d

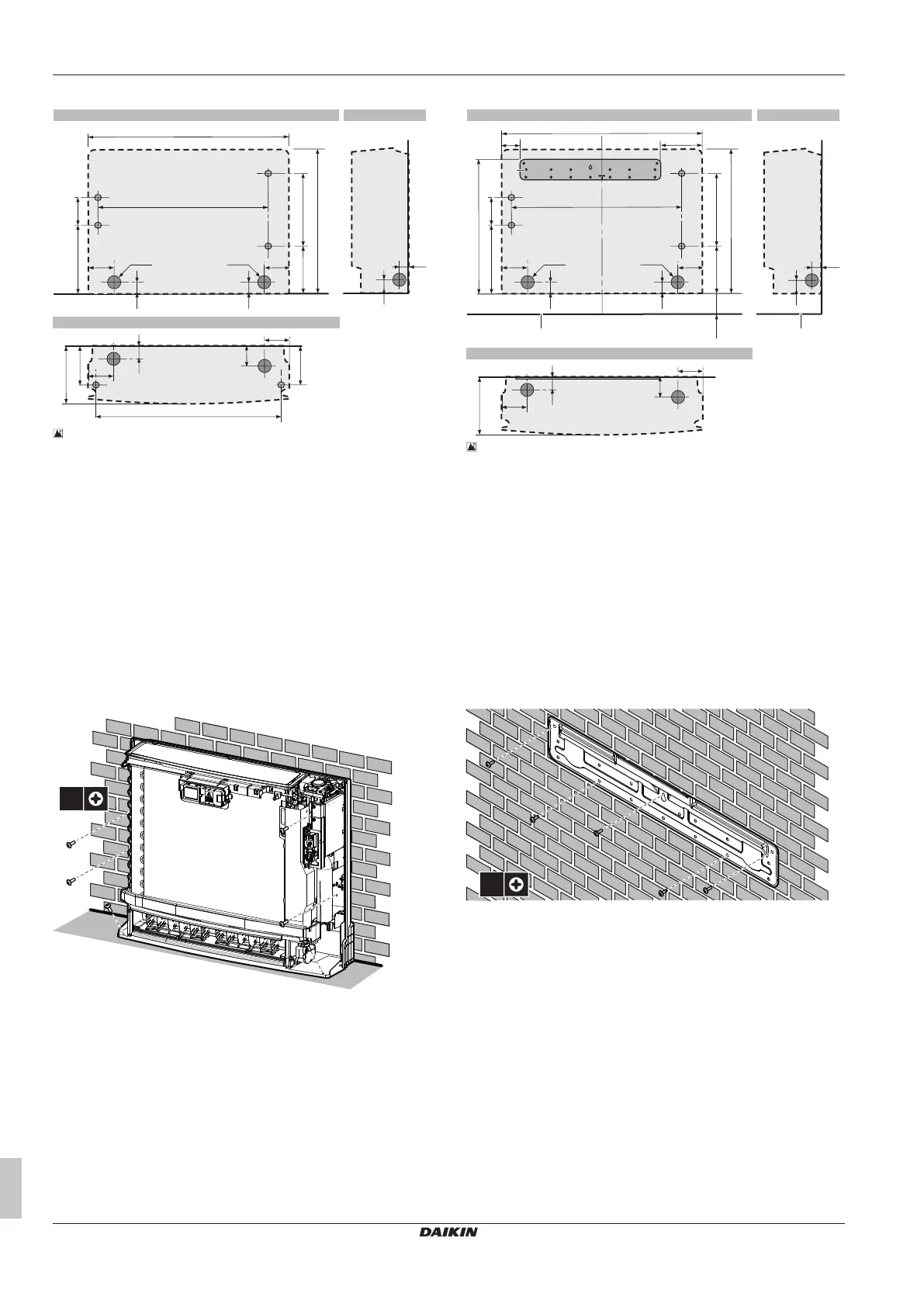

 5‒1 Indoor unit installation drawing: Floor-standing installation
A Front view
B Side view
C Top view
a Screw hole 6×
b Left-back piping hole location
c Right-back piping hole location
d Left/right piping hole location
e Left-bottom piping hole location
f Right-bottom piping hole location
1 Drill a wall hole, depending on which side piping is taken out.
See "5.3.2To drill a wall hole"[48].
2 Open the front panel and remove the front grille (see
"5.2Opening the indoor unit"[44]).
3 Remove the slit portions using nippers. See "5.3.3 To remove
the slit portions"[48].
4 Secure the unit to the wall and floor using 6 screws M4×25L
(field supply).
6×
5 When the complete installation is finished, attach the front panel
and the front grille in their original position.
Wall-mounted installation
82
166
06≤
(mm)
627.5
750
006
553
300
200
285
115
238
b
b
b
b
75
06
75
45
Ø65
Ø65
45
d
e
75
75
54
h
g
54
45
f
A B
C
c c
a
 5‒2 Indoor unit installation drawing: Wall-mounted installation
A Front view
B Side view
C Top view
a Mounting plate
b Screw hole 4×
c Floor
d Left-back piping hole location
e Right-back piping hole location
f Left/right piping hole location
g Left-bottom piping hole location
h Right-bottom piping hole location
6 Temporarily secure the mounting plate on the wall.
7 Make sure the mounting plate is level.
8 Mark the centres of the drilling points on the wall.
9 Secure the mounting plate on the wall using 5 screws M4×25L
(field supply).
5×
10 Drill a wall hole, depending on which side piping is taken out.
See "5.3.2To drill a wall hole"[48].
11 Open the front panel and remove the front grille (see
"5.2Opening the indoor unit"[44]).
12 Remove the slit portions using nippers. See "5.3.3To remove
the slit portions"[48].
13 If necessary for the skirting board, remove the slit portion on the
bottom frame.
