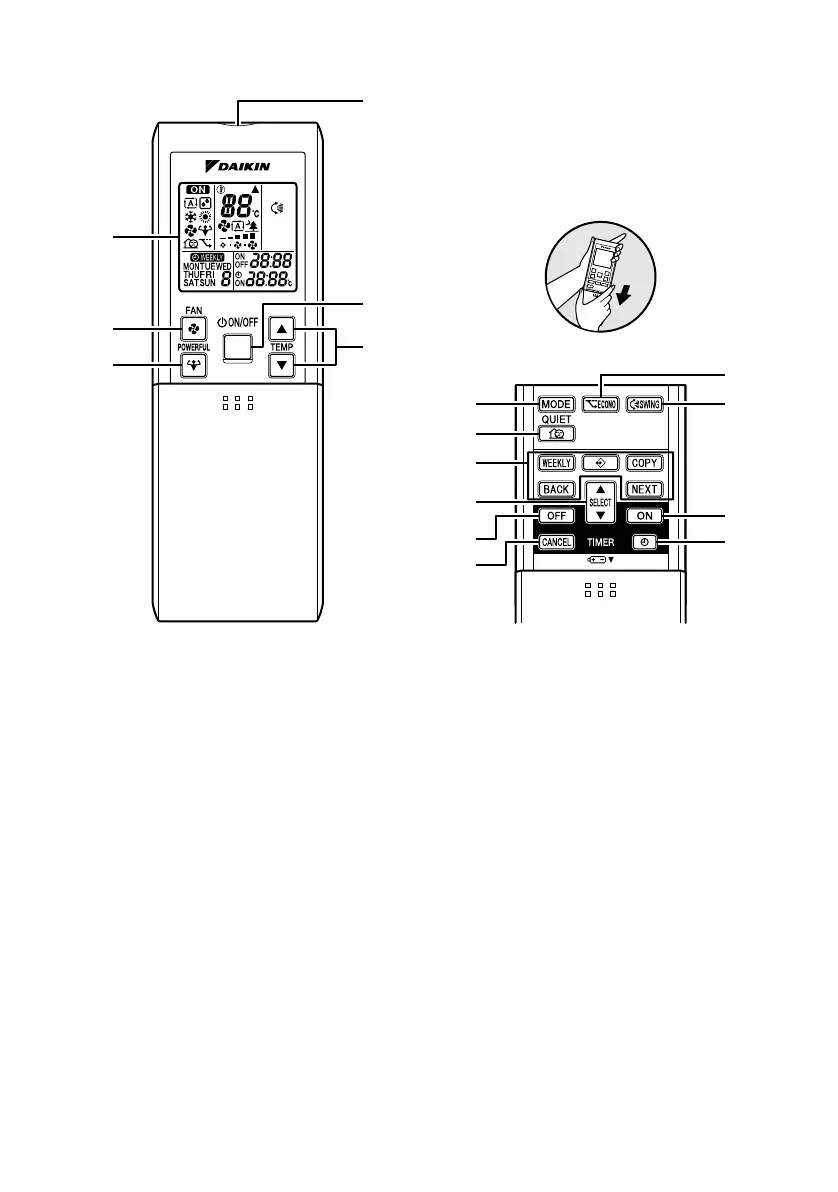

■ Remote Controller
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. FAN setting button:
• It selects the airflow rate setting.
4. POWERFUL button:
POWERFUL operation (page 16.)
5. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
6. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 12.)
8. QUIET button:
OUTDOOR UNIT QUIET operation (page 17.)
9. ECONO button:
ECONO operation (page 18.)
10. SWING button:
• Adjusting the Airflow Direction (page 14.)
11. WEEKLY/PROGRAM/COPY/BACK/NEXT
button:
WEEKLY TIMER operation (page 21.)
12. SELECT button:
• It changes the ON/OFF TIMER and
WEEKLY TIMER settings. (page 19, 21.)
13. OFF TIMER button: (page 19.)
14. ON TIMER button: (page 20.)
15. TIMER CANCEL button:
• It cancels the timer setting. (page 19, 20.)
•
It cannot be used for the WEEKLY TIMER operation.
16. CLOCK button: (page 10.)
